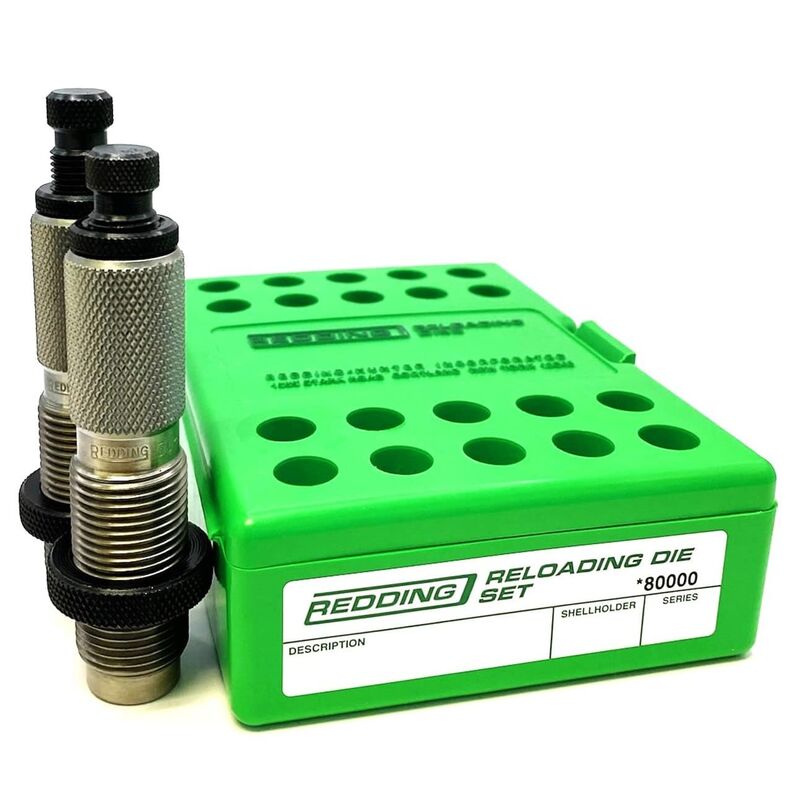

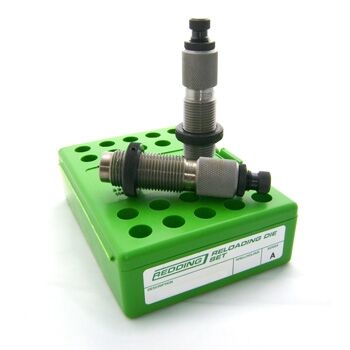

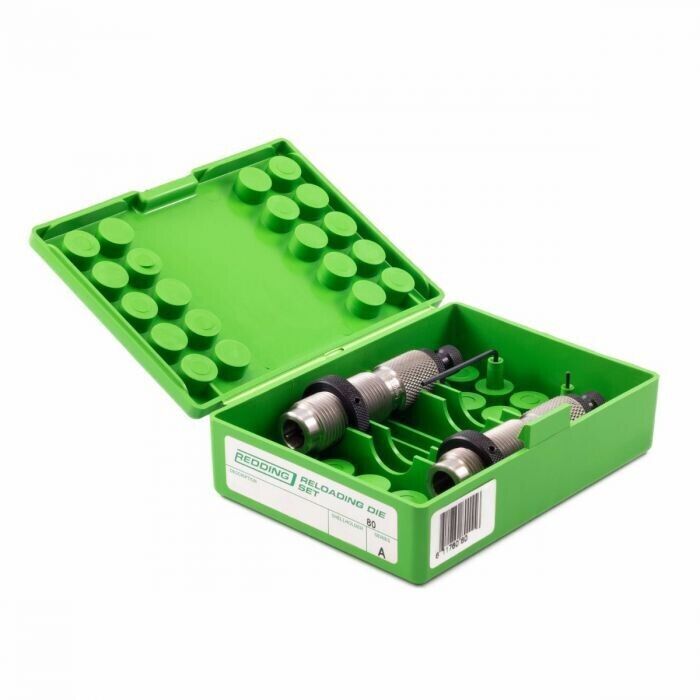

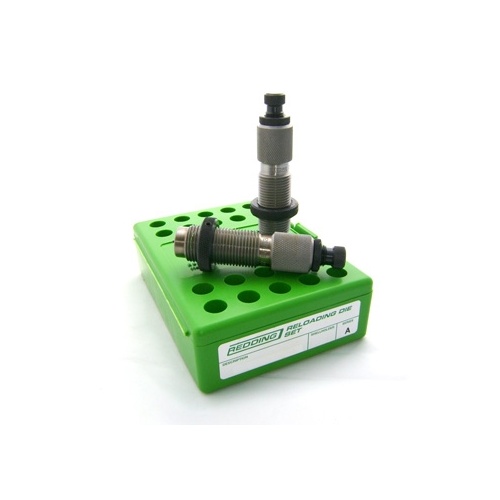

The Redding 22 Creedmoor Full Length Die Set (MPN: 80302) is a two-die reloading system designed to resize fired brass cases and seat bullets for rifles chambered in the high-velocity .22 Creedmoor cartridge. Machined from high-grade alloy steel on precision CNC lathes and heat-treated in atmospherically controlled furnaces, this set brings fired brass back to standard factory dimensions to maintain reliable chambering across bolt-action and semi-automatic platforms. Both dies feature industry-standard 7/8"-14 threading to fit standard single-stage and turret reloading presses.

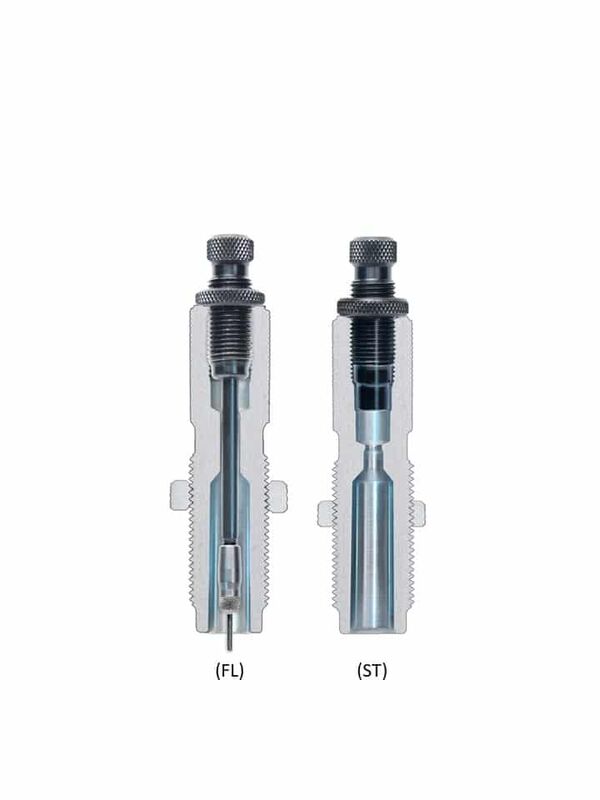

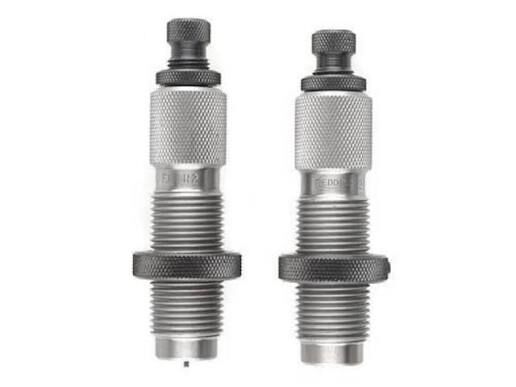

• Full-Length Resizing Die: Features a decapping rod assembly, decapping pin, and standard expander button to decap spent primers, resize the case body and neck, and bump the shoulder back to standard factory dimensions.
• Standard Bullet Seating Die: Built with an internal bullet guide and adjustable seating depth for standard .224 in (5.7 mm) projectiles, including an integrated crimp ring for optional roll crimping.
• Hardened Alloy Steel Construction: Precision-machined and heat-treated to resist internal wear from repeated sizing operations.
• Universal Press Interface: Standard 7/8"-14 thread pattern fits standard Australian-market single-stage and turret reloading presses.

Specifications

• Calibre: .22 Creedmoor (.224 in / 5.7 mm bullet diameter)
• Die Thread Interface: 7/8"-14
• Resizing Die Type: Full Length (FL) Resizing Die (Part #91302)
• Seating Die Type: Standard Bullet Seating Die (ST) with Crimp Ring (Part #92302)
• Required Shellholder (Sold Separately): Redding #1 Shellholder (#11001) or standard .473" bolt-face compatible shellholder
• Boxed Shipping Weight: Approximately 0.5–0.6 kg (1.1–1.3 lbs)

Who is the Redding 22 Creedmoor Full Length Die Set for?

• Varmint hunters handloading for bolt-action rifles — sizes fired bottleneck brass back to standard factory dimensions on presses with 7/8"-14 threading, ensuring smooth cycling and chambering when assembling high-volume .22 Creedmoor ammunition with this 22 Creedmoor full length die set.
• Precision target shooters loading .22 Creedmoor ammunition — provides consistent full-length shoulder bump and internal alignment for .224 in (5.7 mm) projectiles using a dedicated Redding 22 Creedmoor Full Length Die Set mounted in standard 7/8"-14 presses.
• Hunters reloading .22 Creedmoor cartridges for reliable chambering — ensures repeated, reliable cycling across diverse field conditions by resizing the case neck and body down to standard factory tolerances for .22 Creedmoor rifles.

Less suitable for: Reloaders chambering 6mm Creedmoor, 6.5 Creedmoor, or alternative .22-calibre cases, which require cartridge-specific full length sizing dies matching those distinct case and neck dimensions. It is also less suitable for benchrest competitors requiring micrometer neck-tension adjustment, who are better served by Type S bushing sizing dies or competition micrometer seating sets.
