Will this Redding 80317 die set fit my standard reloading press in Australia?

Yes, this 2-die set features a standard 7/8"-14 thread pitch that threads natively into virtually all popular single-stage and turret reloading presses sold in Australia, such as the RCBS Rock Chucker, Lee, and Redding presses. As a purely mechanical tool, it requires no 240V power or SAA/RCM electrical compliance certification for use in your workshop.

What shellholder do I need to use with the Redding 6mm BR Remington Full Length Die Set?

This die set requires a standard #1 shellholder, such as the Redding Part #11001 or Competition Shellholder #11601, which must be purchased separately. It is engineered specifically for the 6mm BR Remington cartridge to resize fired brass back to SAAMI specifications and ensure reliable feeding in bolt-action rifles.

Does this set use a bushing for neck tension, or do I need separate accessories for micro-control?

This is a standard Full Length Die Set featuring an expander button and a traditional sizing die body, rather than a bushing die. Handloaders seeking micro-controlled neck tension without an expander ball or requiring micrometer-adjustable seating depths without manual stem locking may want to upgrade to Redding Type S Bushing dies or add a Redding Bullet Seating Micrometer.

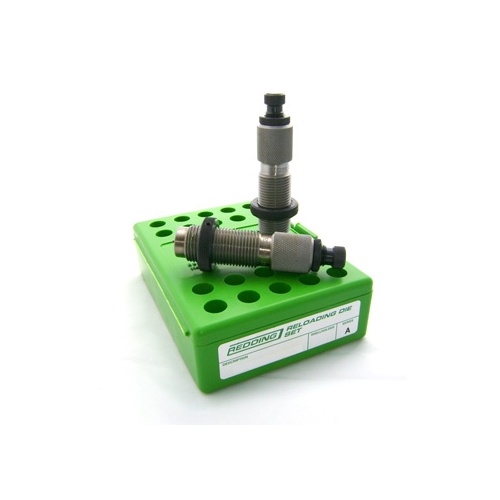

6mm BR Die Set - Redding 80317

The Redding 6mm BR Remington Full Length Die Set is a precision-machined steel reloading system engineered to return fired brass to SAAMI chamber dimensions and seat projectiles for bolt-action rifles. Manufactured from heat-treated alloy steel, this 2-die set mounts to standard reloading presses via industry-standard 7/8"-14 threads to support consistent benchrest and field handloading.

Key Features

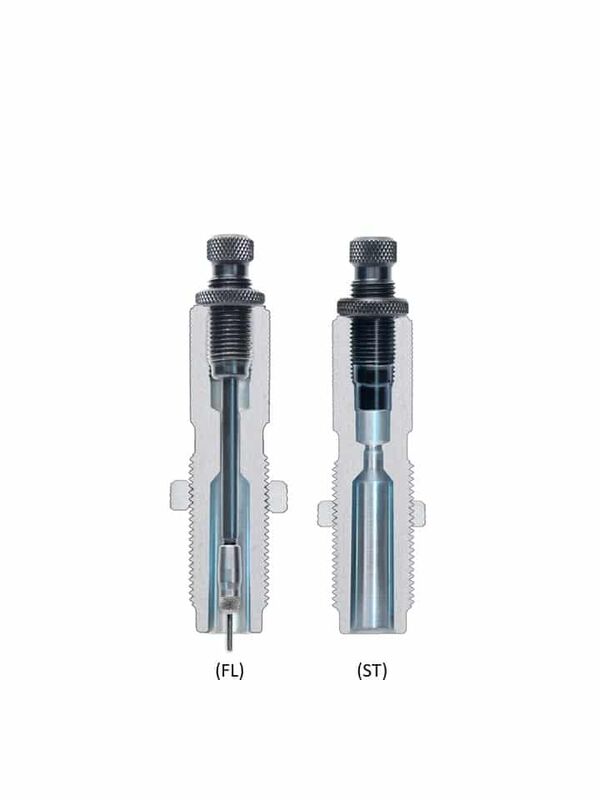

Full-Length Resizing Die: Restores fired case bodies and case shoulders to factory headspace dimensions while utilizing an integrated decapping rod and expander button to deprime brass and set internal neck diameter.
Standard Bullet Seating Die: Features an internal bullet guide and precision-ground seating plug with a built-in roll crimp ring that can be disengaged via die height adjustment.
Heat-Treated Steel Construction: Machined from alloy steel heat-treated in atmospherically controlled furnaces to maintain tight tolerances and resist wear.
Standard Press Compatibility: Features 7/8"-14 thread pitch to fit single-stage and turret reloading presses.

Specifications

Calibre: 6mm BR Remington
Compatible Bullet Diameter: .243 in (6mm)
Die Configuration: 2-Die Set (Full-Length Resizer, Seating Die)
Die Series: Redding Series B
Thread Size: 7/8"-14
Compatible Shellholder: Standard #1 Shellholder (sold separately)
Power Requirements: Manual mechanical operation (non-powered)

Who is the Redding 6mm BR Remington Full Length Die Set for?

Benchrest Shooters — Requires full-length resizing across a 2-die set to return fired 6mm BR Remington cases to factory headspace dimensions for smooth chambering in precision bolt-action rifles.
Varmint Hunters — Relies on standard 7/8"-14 thread compatibility to process and seat .243 in / 6mm projectiles efficiently on standard single-stage or turret reloading presses for high-volume field shooting.

Less suitable for: Handloaders who require micro-adjustable neck tension in 0.001-inch increments without working brass over an expander ball (who need a Type S bushing die set), or precision reloaders requiring micrometer-calibrated seating depths down to the thousandth of an inch (who require a dedicated competition seating die or micrometer seating add-on).

SKU	RD41883LP
Model #	80317
Brand	Redding
Shipping Weight	1.0000kg
