Will this Redding 80340 die set work with my 7x65R rimmed brass or .280 Remington cartridges?

No, this die set is strictly engineered for the rimless 7x64mm Brenneke cartridge and is incompatible with the rimmed 7x65R, .280 Remington, 7mm-08, or 7mm Rem Mag cases. Attempting to use it with other calibers can damage the brass and the dies. Ensure you are reloading true 7x64mm Brenneke ammunition for proper chambering reliability.

What shellholder do I need to purchase separately to use this die set on my reloading press?

You will need a Redding Shellholder #1, available as either the standard part #11001 or the competition shellholder #11601, as it is sold separately from the 80340 set. The dies themselves feature an industry-standard 7/8"-14 thread that fits seamlessly into all standard Australian-distributed single-stage, turret, or progressive presses.

Does this reloading tool require any electrical compliance or SAA certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because this is a strictly manual, mechanical reloading tool containing zero electronic components and consuming no electrical power. It is fully suited for handloading your hunting and field ammunition in any remote Australian workshop or outback environment.

What components are included in the Redding 80340 full-length die set box?

The set includes a Full Length Sizing Die (Part #91340) featuring a decapping rod assembly, size button, and decapping pin, alongside a Bullet Seating Die (Part #92340) with an internal bullet guide and built-in roll crimp ring. It also comes complete with standard lock rings (#01016) and a durable moulded storage box for safe keeping in your reloading room.

7x64 Brenneke Die Set - Redding 80340

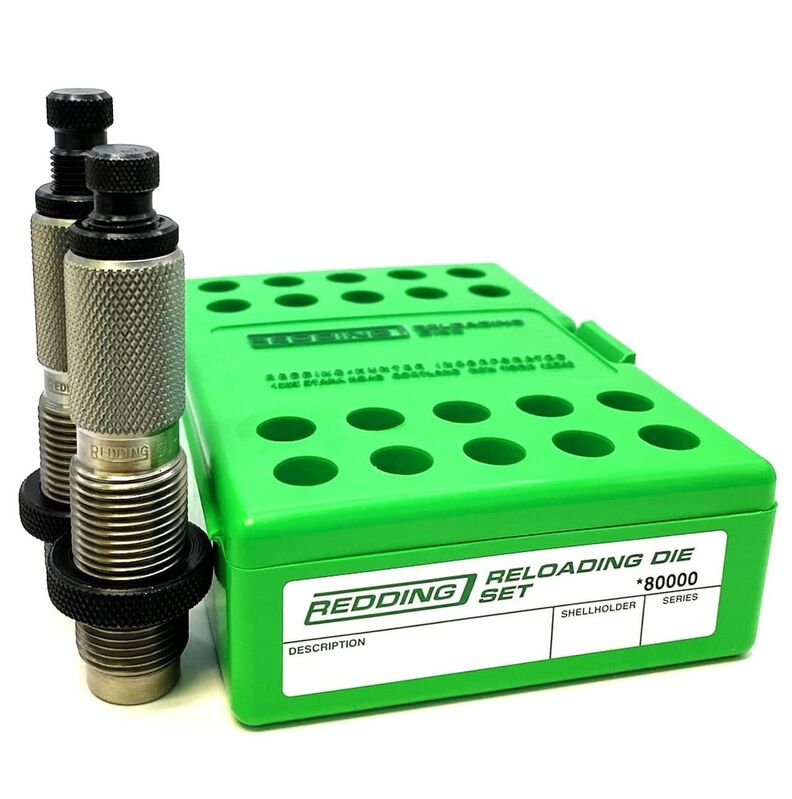

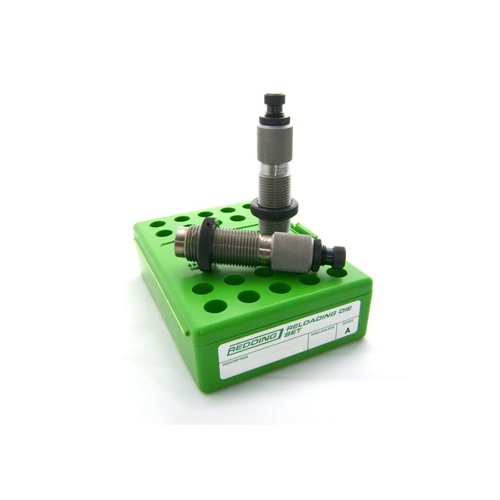

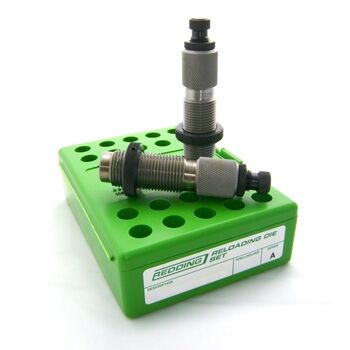

The Redding 7x64 Brenneke Full Length Die Set (MPN 80340) is a precision two-die reloading system designed to restore fired 7x64mm Brenneke cartridge cases to standard factory dimensions while seating new .284 in (7mm) projectiles. Precision-machined on CNC lathes from alloy steel and heat-treated in atmospherically controlled furnaces, these dies feature standard 7/8"-14 threading to ensure compatibility with standard single-stage, turret, and progressive reloading presses. The set includes a full-length sizing die with an integrated decapping and expanding assembly, alongside a dedicated bullet seating die with a built-in roll crimp ring and internal bullet guide to maintain concentric projectile alignment.

Key Features

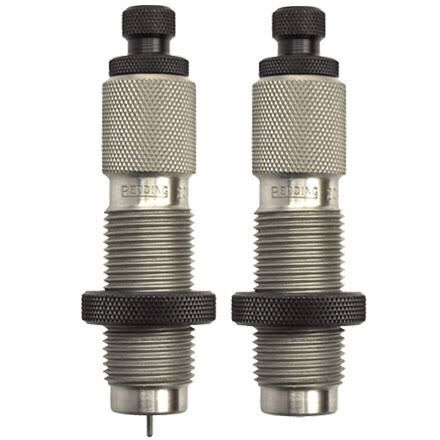

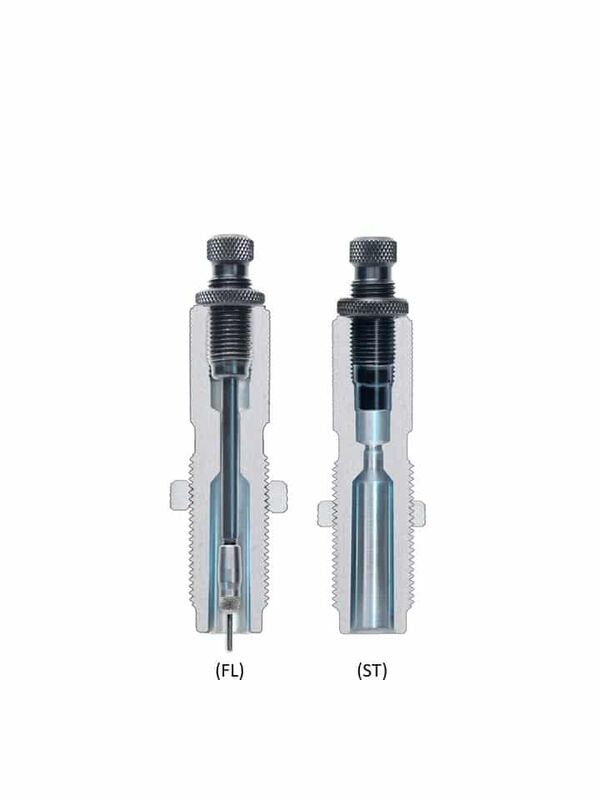

Two-Die Resizing and Seating System: Includes a Full Length Sizing Die (Part #91340) to reform case necks, body diameters, and shoulder geometry, paired with a Bullet Seating Die (Part #92340).
All-in-One Sizing Stroke: Features a decapping rod assembly (#24283), size button (#40283), and decapping pin (#01060) to decap spent primers and expand case necks simultaneously.
Concentric Projectile Alignment: The seating die utilizes an internal bullet guide to align .284 in diameter projectiles directly with the case axis, complete with a standard seat plug (#01062) and optional roll crimp.
Modular Upgrade Compatibility: Works with optional Redding accessories, including the Carbide Size Button (#49283) and the Micrometer Replacement Seating Plug.

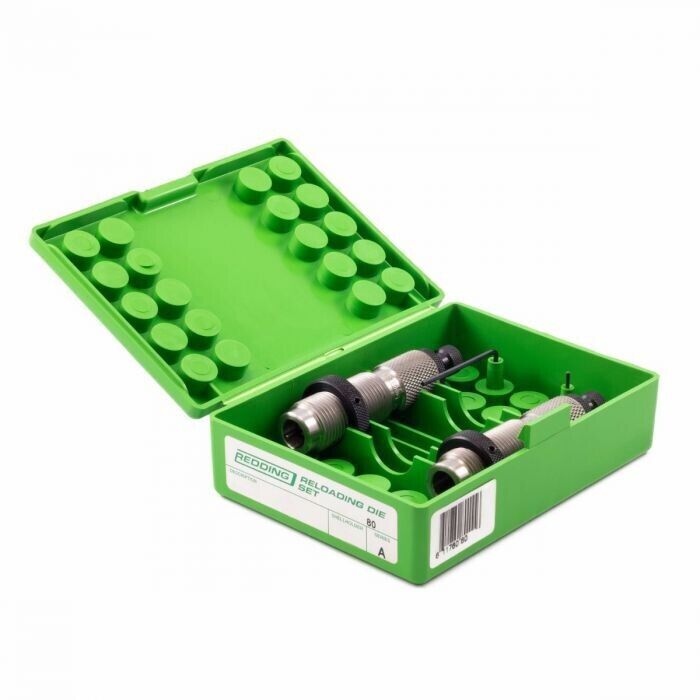

Included Hardware: Comes supplied with standard lock rings (#01016) and a moulded protective storage box.

Specifications

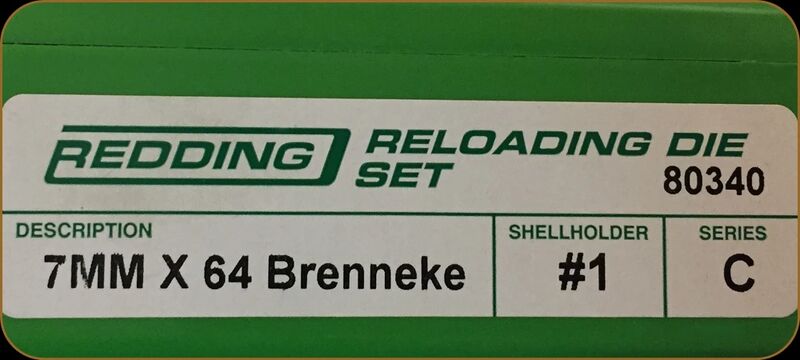

Manufacturer Part Number (MPN): 80340
Cartridge Compatibility: 7x64mm Brenneke
Bullet Diameter Compatibility: .284 in / 7mm
Thread Interface: 7/8"-14 thread
Required Shellholder: Redding Shellholder #1 (Part #11001 or Competition Shellholder #11601; sold separately)
Material: Heat-treated CNC alloy steel
Die Height: Approximately 10.5 cm to 11.5 cm
Packed Weight: Approximately 450 g to 550 g

Who is the Redding 7x64 Brenneke Full Length Die Set for?

7x64mm Brenneke Handloaders — Requires resizing spent brass to factory dimensions and seating .284 in projectiles using a standard 7/8"-14 thread press interface, making this 7x64 Brenneke reloading die set suitable for complete cartridge assembly.
Hunters Using European Sporting Rifles — Needs full-length case body and shoulder resizing to ensure reliable cycling, chambering, and extraction across bolt-action and straight-pull rifles chambered in 7x64mm Brenneke.

Less suitable for: Firearm platforms chambered in 7x65R, 7mm-08, .280 Remington, or 7mm Remington Magnum, or precision benchrest shooters requiring fine neck-tension control without resizing the entire case body; these applications require rimmed-specific tooling, calibre-specific dies, or dedicated Type S bushing neck-sizing dies.

SKU	RD41884LP
Model #	80340
Brand	Redding
Shipping Weight	1.0000kg
