Will this die set fit my RCBS Rock Chucker or other reloading presses commonly used in Australia?

Yes, the Redding 80347 die set features an industry-standard 7/8"-14 TPI thread interface. This ensures full compatibility with single-stage and progressive presses from major brands commonly used in Australia, such as Redding, RCBS, Lyman, Hornady, and Lee.

What shellholder do I need to use with the Redding 416 Ruger Full Length Die Set?

This die set requires a Redding #6 shellholder, available in either the Standard version (Part #11006) or the Competition version (Part #11606). Please note that the shellholder is sold separately and is necessary for holding the .416 Ruger cartridge securely during the sizing and depriming stroke.

Can I use this die set for other .416 calibres like .416 Rigby or .416 Remington Magnum?

No, this die set is strictly engineered for the .416 Ruger bottleneck cartridge utilizing .416-inch diameter bullets. It is incompatible with other .416 calibres such as .416 Rigby or .416 Remington Magnum due to distinct differences in case tapers, lengths, and shoulder geometries.

Do I need any special case preparation or lubrication when operating these full-length dies?

Yes, because this is a full-length sizing die set, you must apply an external case lubricant—such as Imperial Sizing Die Wax—to the brass cases prior to sizing. Proper lubrication prevents bottleneck cases from getting stuck inside the precision-machined steel die during the resizing stroke.

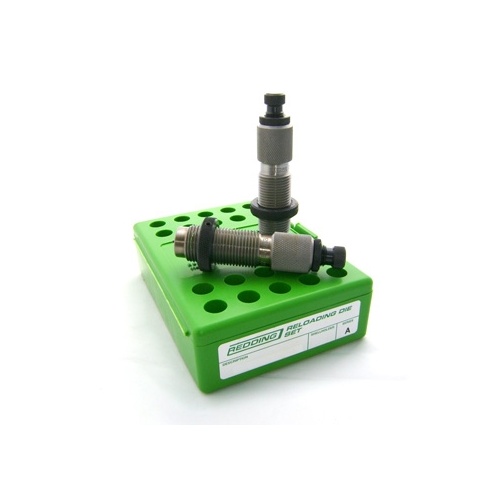

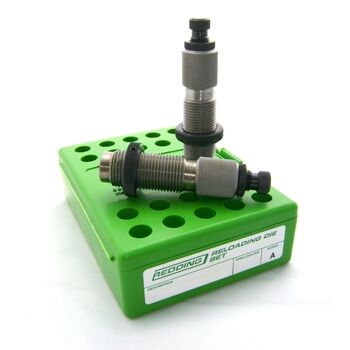

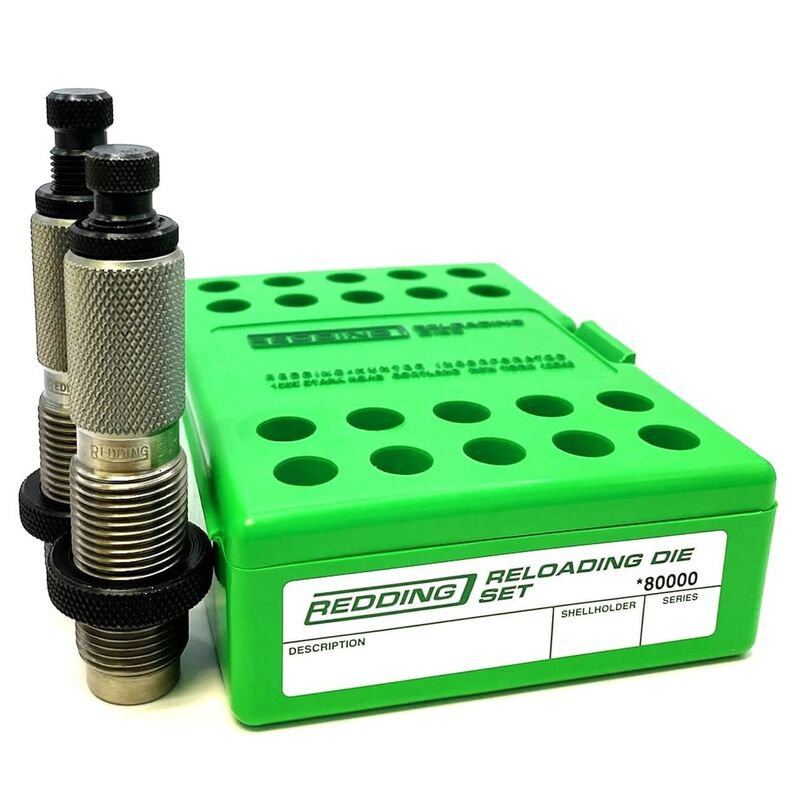

416 Ruger Die Set - Redding 80347

The Redding .416 Ruger Full Length Die Set is a two-die reloading tooling kit engineered to resize fired brass cases and seat projectiles for firearms chambered in .416 Ruger. Built from heat-treated alloy steel with hand-polished interior cavities, this manual mechanical set restores cartridge cases to standard factory dimensions while simultaneously depriming and expanding the neck. The set utilizes standard 7/8"-14 TPI threading, ensuring direct compatibility with single-stage and progressive reloading presses sold throughout Australia.

Key Features

Full-Length Resizing: The resizing die restores the case neck, shoulder, and body dimensions of fired .416 Ruger brass to factory SAAMI specifications while depriming spent primers.
Built-In Roll Crimp: The seating die features an integrated crimp ring to seat and securely crimp 0.416 inch (10.57 mm) diameter bullets against recoil-induced movement.
Alloy Steel Construction: Machined from high-grade alloy steel and heat-treated in atmospherically controlled furnaces for long-term dimensional consistency.
Standard Thread Mounting: Fitted with an industry-standard 7/8"-14 thread interface for use in standard reloading presses without adapters.

Specifications

Calibre: .416 Ruger
Bullet Diameter: 0.416 inch / 10.57 mm
Thread Interface: 7/8"-14 TPI

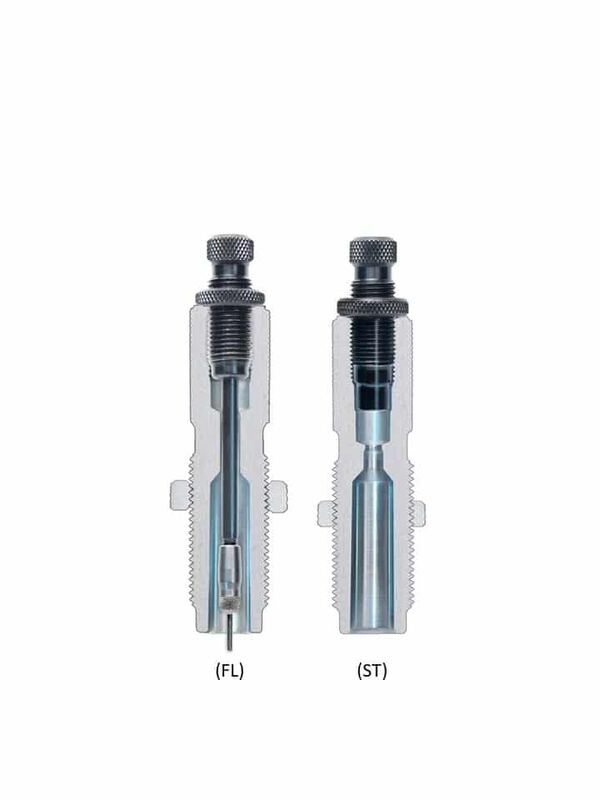

Die Set Contents: Full Length Resizing Die (Part #91347), Bullet Seating Die (Part #92347)
Decapping Assembly: Decapping rod (Part #25414) with size button (Part #16414)

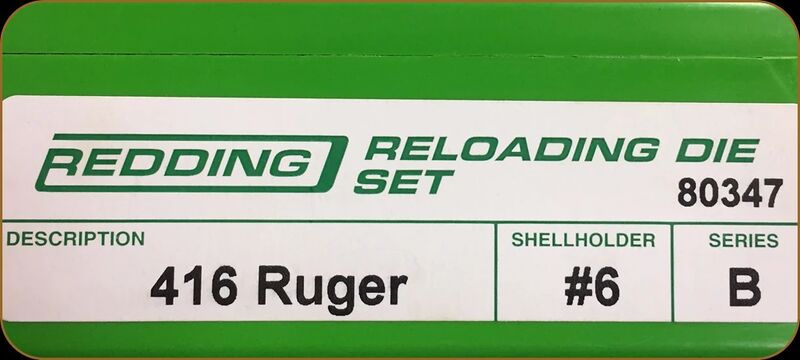

Shellholder Requirement: Redding #6 Standard Shellholder (#11006) or #6 Competition Shellholder (#11606) (sold separately)
Boxed Weight: Approximately 450 g to 550 g

Who is the Redding 416 Ruger Full Length Die Set for?

Dangerous game handloaders — needing a full length reloading die set that seats 0.416 inch (10.57 mm) projectiles with an integrated roll crimp to prevent bullet setback under severe recoil in bolt-action rifles.
Shooters running multiple rifles — requiring a full length reloading die set mounted on a standard 7/8"-14 TPI press interface to size brass back to factory dimensions for smooth chambering across different .416 Ruger chambers.

Less suitable for: Cartridges with differing shoulder angles, case tapers, or lengths such as the .416 Rigby or .416 Remington Magnum; reloaders working with these calibres require dedicated calibre-specific full-length die sets matched to their distinct case geometries.

SKU	RD41885LP
Model #	80347
Brand	Redding
Shipping Weight	1.0000kg
