Will this Redding 80420 die set work with standard .243 Winchester factory brass?

No, this die set is exclusively engineered for the .243 Winchester Ackley Improved with a 40-degree shoulder angle. Attempting to resize standard .243 Winchester brass with a 20-degree shoulder in these dies will cause severe damage to your brass and potentially the dies themselves.

What press threading and shellholders are required to set up this die set in my Australian reloading bench?

The Redding 80420 features standard 7/8"-14 threads, making it fully compatible with all common single-stage and turret presses used across Australia, such as the Redding Big Boss or RCBS Rock Chucker. You will also need to separately source an industry-standard #1 shellholder to fit your press ram.

Does this mechanical reloading tool require any Australian electrical compliance or 240V power?

No, this is a completely manual, unpowered steel reloading tool requiring no electricity, meaning it is entirely exempt from Australian SAA or RCM electrical compliance frameworks. It is ready for immediate out-of-the-box mechanical operation in any shed or outback reloading setup.

How should I maintain these heat-treated alloy steel dies to prevent corrosion in humid or outback Australian conditions?

To ensure an indefinite service life, you should occasionally wipe down the exterior and interior surfaces of the steel dies with a light rust-preventative gun oil or preservative after use. Because these are steel dies, you must also use dedicated case lubrication on every bottleneck case during sizing to prevent stuck cases.

243 Win Die Set - Redding 80420

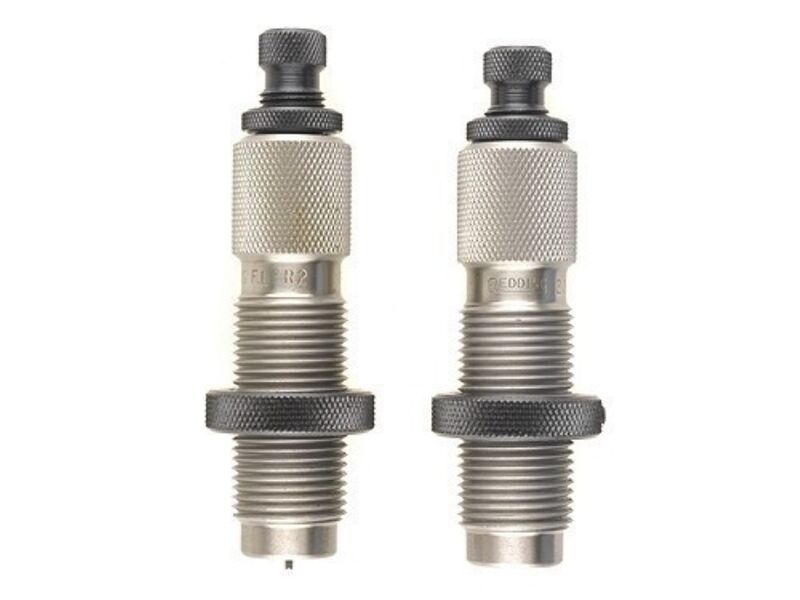

The Redding 243 Win Ackley Improved 40° Full Length Die Set is a precision mechanical reloading kit engineered to resize fire-formed cases and seat projectiles for wildcat and custom bolt-action rifles. Machined from heat-treated alloy steel, this 2-die set restores cartridge brass to correct SAAMI/Ackley chamber dimensions by bumping the 40° shoulder back to maintain reliable feeding and chambering. Built with standard 7/8"-14 threading, the set mounts into standard single-stage and turret reloading presses used by Australian handloaders.

Key Features

Full-Length Resizing: The resizing die returns fired brass to exact .243 Winchester Ackley Improved specifications with a 40° shoulder angle.

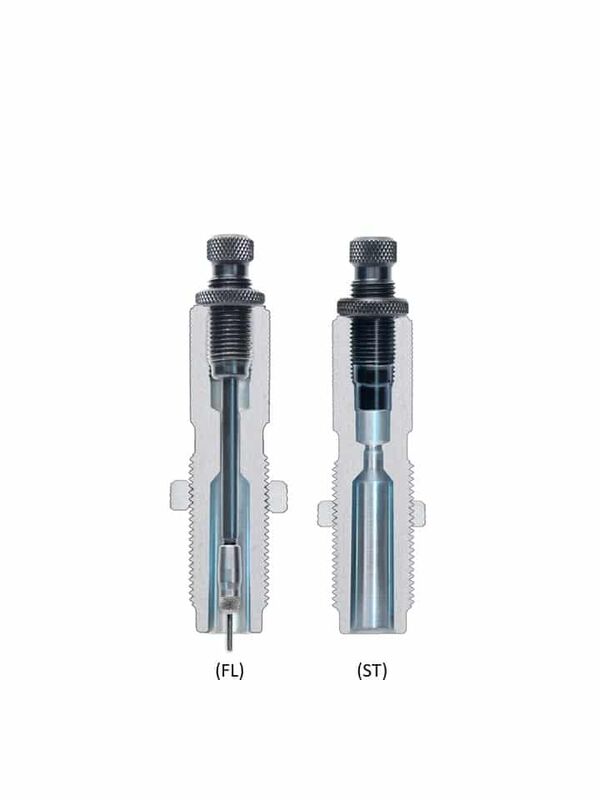

Integrated Decapping and Expanding: Combines spent primer decapping and neck expansion in a single stroke via the internal decapping rod assembly and expander button.
Concentric Bullet Seating: The seating die features an internal bullet guide and seating plug to align the projectile and control overall cartridge length (COAL), with a built-in crimping ring for optional roll crimping.
Press Compatibility: Industry-standard 7/8"-14 thread interface mounts to common single-stage and turret reloading presses without adaptors (requires a standard #1 shellholder, sold separately).

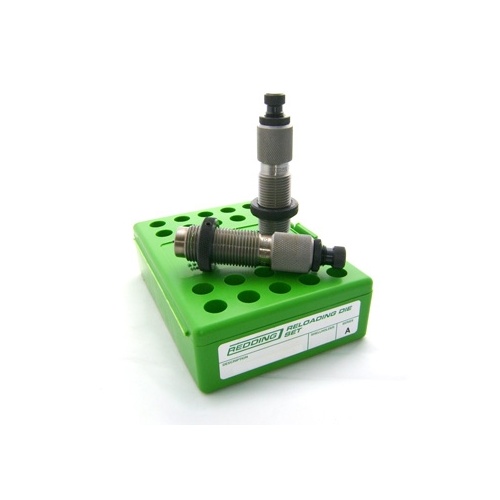

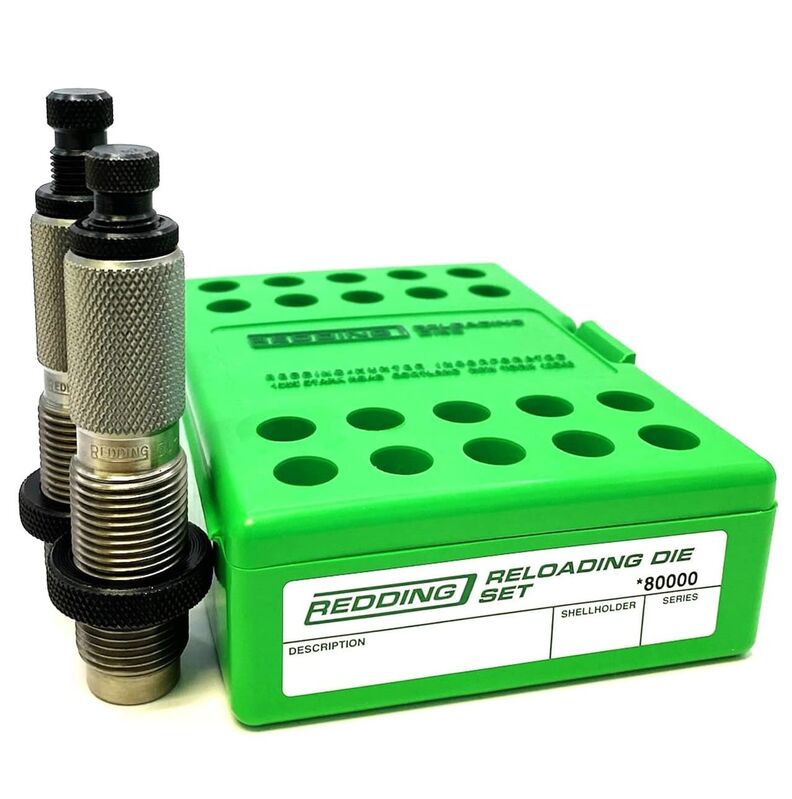

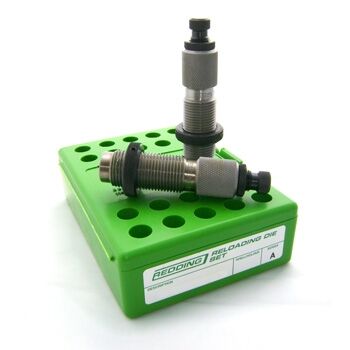

Storage Protection: Supplied in a dedicated hard plastic storage case to protect precision-machined steel surfaces between loading sessions.

Product Specifications

Brand: Redding Reloading Equipment
Model / MPN: 80420
Calibre: .243 Winchester Ackley Improved (40° shoulder)
Die Type: 2-Die Set (Full-Length Resizer and Bullet Seater)
Die Thread Interface: 7/8"-14 thread
Material: Heat-treated alloy steel
Package Dimensions: Approximately 15 × 11 × 4 cm
Package Weight: Approximately 0.55–0.60 kg
Power Requirements: Manual / unpowered

Who is the Redding 243 Win Ackley Improved 40° Full Length Die Set for?

Handloaders running .243 Ackley Improved rifles — Requires a 2-die set with industry-standard 7/8"-14 threads to reliably full-length resize brass back to the precise 40° shoulder angle for flawless chambering in field conditions.
Hunters and precision varmint shooters utilizing custom wildcat chambers — Needs this .243 Ackley Improved die set to restore fire-formed bottleneck brass back to exact dimensions while maintaining strict bullet-to-bore concentricity across high-volume hunting loads.

Less suitable for: Standard .243 Winchester chambers with a factory 20° shoulder angle; using this die set on standard cases will cause severe brass and die damage, requiring a standard .243 Winchester 20° full-length die set instead.

SKU	RD41887LP
Model #	80420
Brand	Redding
Shipping Weight	1.0000kg
