Will the Redding 80421 die set work on standard parent 6mm Remington cases before they are fireformed?

No, this die set is designed specifically and exclusively for the 6mm Remington Ackley Improved 40-degree chambering. It will not correctly size standard parent 6mm Remington cases that have not yet been fireformed, nor other wildcats like the 6mm Creedmoor or .243 AI.

What press thread size and shellholders do I need to set up this Redding die set in my Australian workshop?

The dies feature the industry-standard 7/8"-14 thread, making them fully compatible with all standard single-stage and progressive reloading presses in Australia from brands like Redding, RCBS, Hornady, Lyman, and Dillon. You will need to separately acquire a standard Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder #1 (Part #11601), as shellholders are not included in the boxed set.

Does this mechanical reloading tool require any electrical certification or power supply for use in Australia?

No electrical compliance, SAA/RCM certification, or 240V mains power is required. The Redding 6mm Remington Ackley Improved Full Length Die Set is a completely non-powered, mechanical workshop tool operating on manual leverage with a 0W electrical input.

When should I choose this full-length die set versus a neck sizing set for my bolt-action rifle?

This 2-die set is ideal when you need to bump the 40-degree shoulder and return fireformed brass to minimum SAAMI/wildcat chamber tolerances for reliable feeding across multiple rifles. However, if you are firing brass exclusively in a single bolt-action chamber and want maximum case life without body working, a dedicated Redding Neck Sizing Die Set (#82421) is better suited.

6mm Remington AI Dies - Redding 80421

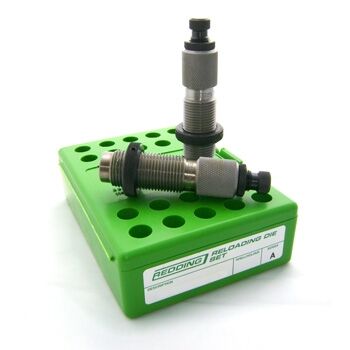

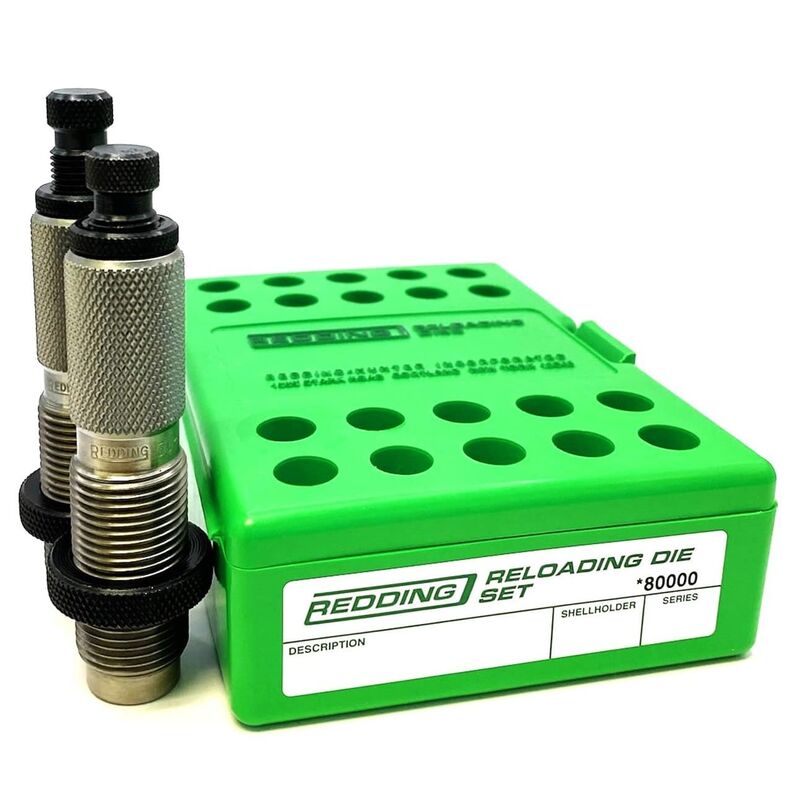

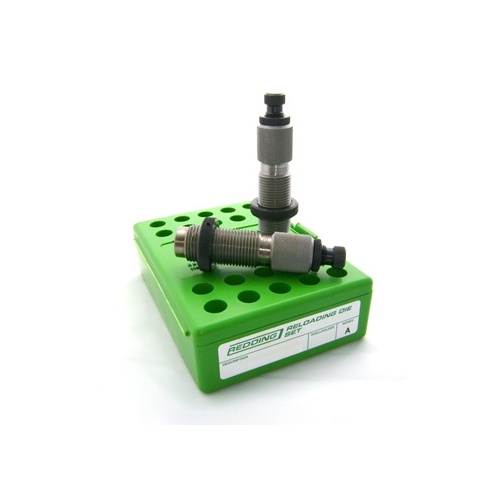

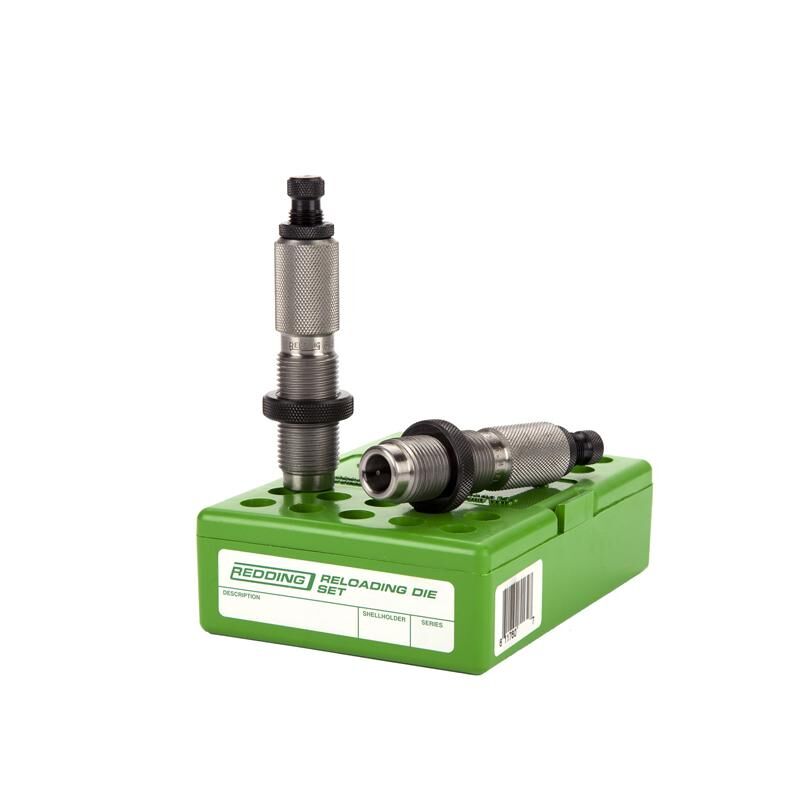

The Redding 6mm Remington Ackley Improved 40° Full Length Die Set (MPN 80421) is a 2-die mechanical reloading system engineered to resize fireformed brass and seat bullets for precision handloading. Built from alloy steel heat-treated in atmospherically controlled furnaces and hand-polished, this non-powered set returns fired cartridge cases to minimum chamber dimensions for reliable feeding in hunting and target rifles. It threads directly into any standard single-stage or progressive reloading press using an industry-standard 7/8"-14 thread interface.

Key Features

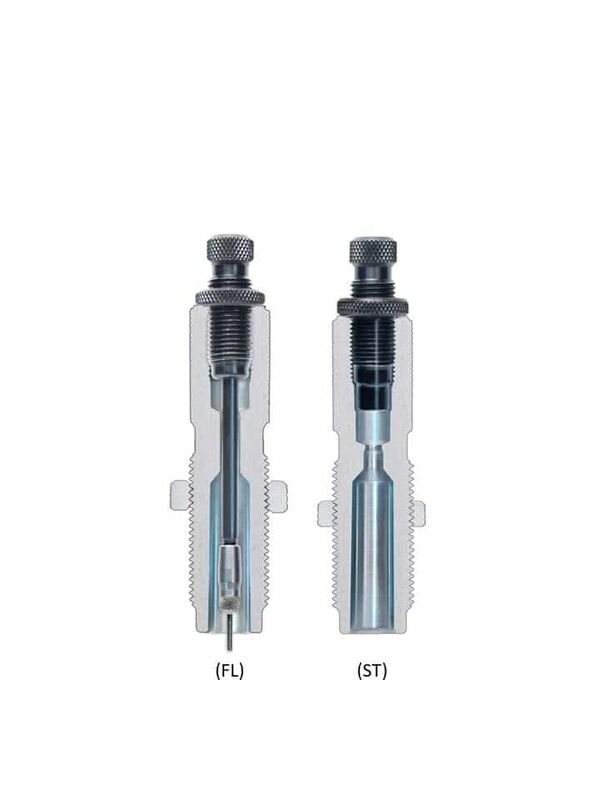

Two-Die Configuration: Includes a Full-Length Sizing Die (Part #91421) and a Standard Bullet Seating Die (Part #92421).
Full-Length Case Sizing: Resizes the case body, bumps the 40-degree shoulder to maintain correct headspace, decaps spent primers with assembly #34242, and expands the neck via expander ball #39242.
Seating and Crimping Control: Features an adjustable seating plug (#01066) with an integrated roll-crimp ring that can be adjusted out of contact for non-crimped match loads.
Standard Press Interface: Uses standard 7/8"-14 threading to ensure universal fitment across standard Australian reloading presses.
Shellholder Compatibility: Designed for use with Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder #1 (Part #11601), sold separately.

Product Specifications

Brand: Redding Reloading Equipment
Model Number (MPN): 80421
Calibre: 6mm Remington Ackley Improved 40°
Compatible Projectile Diameter: 0.243" / 6mm
Thread Interface: 7/8"-14
Included Sizing Die: Full-Length Sizer #91421
Included Seating Die: Standard Seater #92421
Decapping Assembly: Part #34242 with Expander Ball #39242
Weight: Approximately 0.5–0.6 kg
Power Requirement: 0W (Manual mechanical operation)

Who is the Redding 6mm Remington Ackley Improved 40° Full Length Die Set for?

Long-Range Hunters and Varmint Shooters — Requires reliable cartridge cycling and precise shoulder restoration for fireformed 6mm Remington Ackley Improved 40° brass, ensuring smooth chambering during field shooting.
Bolt-Action Target Shooters — Needs consistent bullet seating depth and body sizing using standard 7/8"-14 thread reloading presses to produce tailored match ammunition for custom 6mm Remington Ackley Improved 40° rifles.

Less suitable for: Reloaders seeking maximum brass working life by sizing only the case neck from a single bolt-action chamber (who require a dedicated neck sizing die set), or precision competition shooters requiring micrometer-level neck tension tuning without an expander ball (who require bushing-style sizing dies or competition seating dies).

SKU	RD41888LP
Model #	80421
Brand	Redding
Shipping Weight	1.0000kg
