Will the Redding 80443 die set work with my standard Australian-purchased reloading press?

Yes, this 2-die set features an industry-standard 7/8"-14 thread interface that fits all standard single-stage and progressive reloading presses sold in Australia from brands like Redding, RCBS, Hornady, Lyman, and Lee. You will also need a standard #1 shellholder (such as the Redding #11001), which is sold separately.

Can I use this 6mm Creedmoor die set for other cartridges like 6.5 Creedmoor or .243 Winchester?

No, the Redding Model 80443 die set is strictly engineered to SAAMI specifications for the 6mm Creedmoor cartridge only. It will not properly size or seat other 6mm variants like 6mm Dasher, 6mm GT, or .243 Winchester, nor will it accommodate the larger body and shoulder dimensions of the 6.5 Creedmoor.

Does this standard die set include micrometer adjustments for seating depth?

No, this standard 2-die set utilizes a traditional fixed seating plug and a standard decapping/expander assembly rather than a micrometer head. If you require fine-tuned micrometer adjustments down to 0.001" or interchangeable bushing neck-tension control for precision PRS/NRL competition, you will need to step up to Redding's Premium Series or Type S Bushing dies.

What preparation or lubricants are required when operating these steel dies in outback conditions?

Because these dies are manufactured from heat-treated alloy steel, you must apply a high-pressure case sizing wax or lubricant—such as Imperial Sizing Die Wax—to your 6mm Creedmoor brass prior to resizing. Operating the full-length sizing die without proper lubrication will immediately result in a stuck case, and keeping them lightly oiled or waxed is essential to protect the steel against corrosion in humid or dusty outback environments.

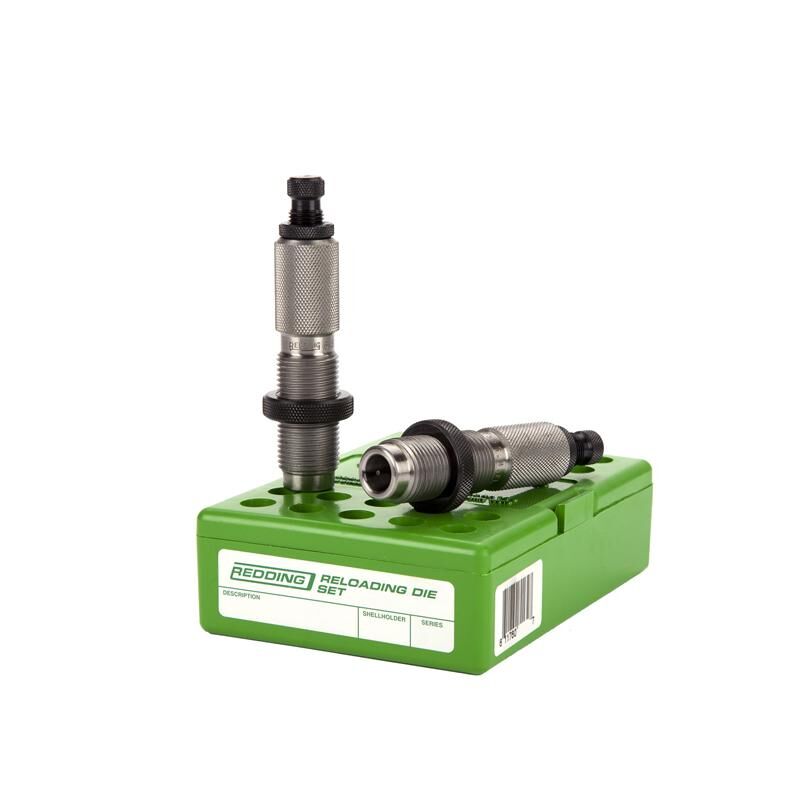

6mm Creedmoor Die Set - Redding 80443

The Redding 6mm Creedmoor Full Length Die Set is a precision 2-die reloading system designed to restore fired brass to factory SAAMI dimensions and seat 0.243-inch (6.17 mm) bullets. Machined from heat-treated alloy steel and hand-polished, the set features a full-length sizing die that decaps spent primers, resets case body diameters, and controls headspace, alongside a dedicated seating die with an internal bullet guide and built-in roll crimp ring. Built with standard 7/8"-14 threads, this mechanical set mounts to all standard reloading presses used by Australian reloaders.

Key Features

Two-Die Configuration: Includes a full-length resizing die with decapping rod and neck expander button, plus a standard bullet seating die with an adjustable roll crimp shoulder.
SAAMI Dimension Resizing: Returns fired brass to minimum factory specifications, ensuring reliable feeding and smooth chambering across both bolt-action and semi-automatic platforms.
Precision Bullet Alignment: The internal bullet guide aligns projectiles straight with the case neck during seating to minimise overall bullet runout.
Standard Press Mounting: Uses standard 7/8"-14 threads to ensure compatibility across all standard single-stage and progressive reloading presses.
Durable Steel Construction: Heat-treated alloy steel construction resists brass galling and wear across high-volume reloading sessions.

Product Specifications

Calibre: 6mm Creedmoor
Compatible Bullet Diameter: 0.243 in / 6.17 mm
Thread Interface: 7/8"-14 industry-standard thread
Shellholder Requirement: Redding #1 shellholder / standard 0.473" bolt face family (sold separately)
Set Contents: Full-length resizing die (Part #91443) with expander button (Part #39242), bullet seating die (Part #92443) with standard seat plug (Part #01067), storage box, and instructions
Total Boxed Weight: Approximately 0.5 kg to 0.6 kg

Who is the Redding 6mm Creedmoor Full Length Die Set for?

PRS and NRL precision rifle competitors — requires standard SAAMI-spec sizing and low-runout 0.243-inch (6.17 mm) bullet seating using a 2-die set to maintain reliable feeding and consistent chambering during rapid match stages.
Hunters and target reloaders — needs a durable 7/8"-14 thread 6mm Creedmoor full length die set to resize fire-formed brass to factory dimensions and apply an optional roll crimp for reliable field use in bolt-action or semi-automatic rifles.

Less suitable for: Precision target reloaders requiring micrometer-adjustable seating depths down to 0.001" or fine-tuned neck tension control via interchangeable bushings, who are better served by a micrometer-adjustable competition seating die or a bushing full-length resizing die set; and reloaders working with other cartridges such as .243 Winchester, 6mm GT, or 6.5 Creedmoor, as this tooling is strictly dimensioned for 6mm Creedmoor brass and requires high-pressure case lubricant to operate.

SKU	RD41889LP
Model #	80443
Brand	Redding
Shipping Weight	1.0000kg
