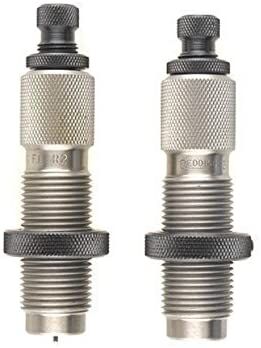

The Redding 80817 30 Nosler Full Length 2-Die Set is a dedicated reloading tool designed to restore fired .30 Nosler bottleneck cartridge cases to SAAMI factory dimensions and precisely seat .308-inch (7.82 mm) diameter projectiles. Manufactured from heat-treated, precision-machined alloy steel, this mechanical die set threads into standard reloading presses using an industry-standard 7/8"-14 TPI interface. It provides reliable full-body sizing, shoulder setback, decapping, and controlled bullet seating for handloaders targeting consistent chambering in field and range rifles.

Key Features

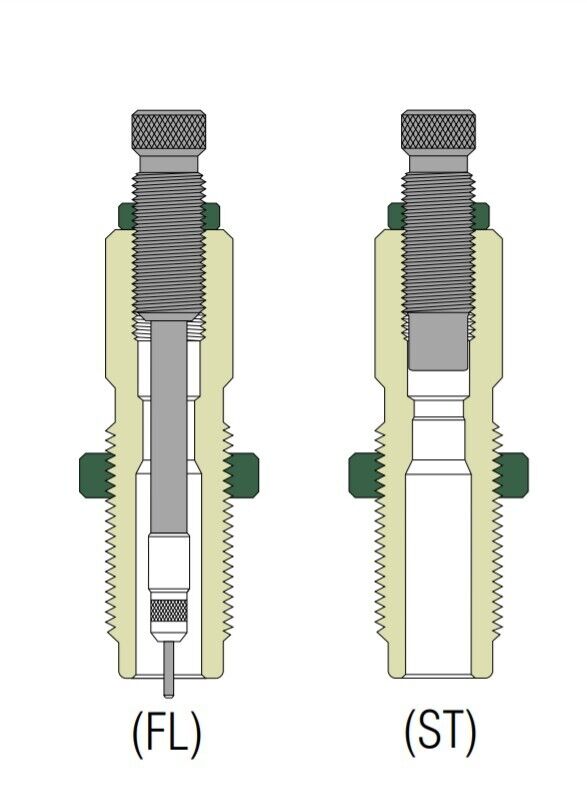

• Full-Length Resizing Die: Resizes the cartridge case body and neck to original factory tolerances, bumps the shoulder back for smooth feeding, and decaps spent primers using an integrated decapping rod and size expander assembly (Part #40307).
• Standard Bullet Seating Die: Aligns and seats .308-inch bullets to the desired overall cartridge length (COAL) with integrated crimping capability.
• Heat-Treated Alloy Steel: Precision-machined hardened steel construction maintains exact internal dimensions across extensive reloading cycles.
• Universal Press Fit: Features standard 7/8"-14 TPI exterior threads for compatibility with standard single-stage and turret reloading presses.
• Shellholder Compatibility: Engineered for use with a standard Redding #6 shellholder (Part #11006) or Competition #6 shellholder (Part #11606) (available separately).

Product Specifications

• Calibre: .30 Nosler
• Compatible Bullet Diameter: .308 in (7.82 mm)
• Thread Interface: 7/8"-14 TPI
• Die Set Type: 2-Die Set (Full-Length Sizer and Bullet Seater)
• Material: Heat-treated, precision-machined alloy steel
• Weight: Approximately 0.45–0.55 kg (1.0–1.2 lbs) boxed
• Manufacturer Part Number (MPN): 80817

Who is the Redding 80817 .30 Nosler Full Length 2-Die Set for?

• Australian big game hunters — Who require dependable chambering for .30 Nosler rifles used on large game such as sambar deer, achieved by resizing fired brass back to SAAMI factory geometry using the full-length hardened steel sizing die on standard 7/8"-14 TPI presses.
• Long-range marksmen — Who load for .30 Nosler precision platforms and need consistent projectile alignment when seating standard 0.308-inch diameter bullets to a uniform overall length across high-volume firing strings.

Less suitable for: Reloaders working with alternative .30-calibre or magnum cartridges such as .300 Win Mag, .300 PRC, .300 WSM, or other Nosler cases (such as 26, 28, or 33 Nosler), which require cartridge-specific dies to avoid case and die damage; presses using large-series 1-1/4"-12 or 1"-14 threads without step-down bushing adaptors; reloading without case lubricant on this non-carbide steel die; or competition shooters requiring micro-adjustable neck tension down to 0.001 inches without an expander ball, who are better served by bushing-style sizing dies.
