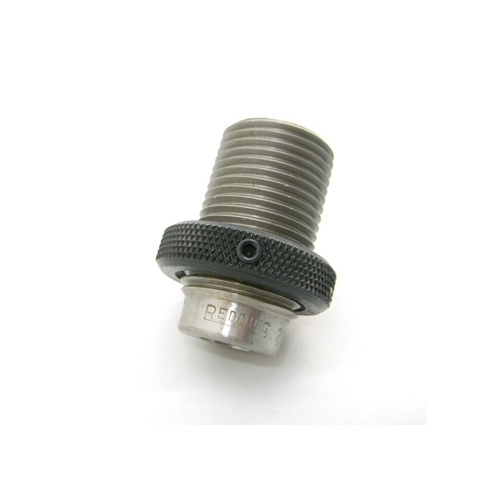

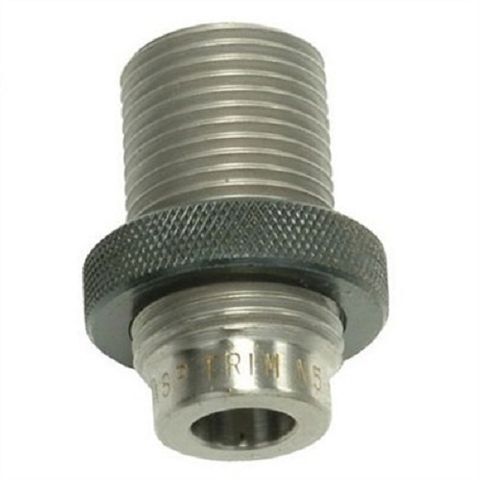

The Redding 83114 Case Form and Trim Die is a non-powered, mechanical reloading tool engineered to shape and trim metallic brass cartridge cases for .243 Winchester. Machined from heat-treated, hardened alloy steel, the die is built to withstand direct contact with a flat metal file without altering critical internal dimensions. Unlike standard full-length sizing dies, Redding form and trim dies are profiled to exact cartridge chamber dimensions, allowing handloaders to file-trim excess neck material flush with the die mouth without forcing unnecessary resizing on previously fired brass. It functions as both an intermediate forming die for necking down parent cases and a dedicated case-length trimming solution on standard single-stage or turret reloading presses.

Key Features

• Chamber-Dimension Profiling: Precision-machined to cartridge chamber dimensions rather than sizing dimensions, enabling uniform case trimming without excess working of the brass.
• Hardened Steel Top: Features a heat-treated, hardened top face designed for manual file-trimming, letting handloaders remove excess neck length flush and square using a fine flat file.
• Intermediate Case Forming: Functions as a dedicated forming die to reform larger parent brass, such as .308 Winchester or .260 Remington, down to .243 Winchester dimensions.
• Standard Thread Mounting: Integrates industry-standard 7/8"-14 threading to mount directly into standard single-stage or turret reloading presses.
• Manual Single-Case Processing: Provides complete tactile control over case mouth squareness and overall length (OAL) during low-to-medium volume brass preparation.

Product Specifications

• Product Type: Cartridge case form and trim die
• Manufacturer Part Number (MPN): 83114
• Calibre Compatibility: .243 Winchester (0.243" bullet diameter)
• Die Thread Interface: Standard 7/8"-14 thread
• Shellholder Compatibility: Standard Redding #1 shellholder (sold separately)
• Material: Heat-treated, hardened alloy steel
• Packaged Weight: Approximately 200–300 g
• Operation Type: Manual, non-powered mechanical press tool

Who is the Redding 83114 Case Form and Trim Die for?

• Precision handloaders forming brass from parent cartridges — requires the dedicated .243 Winchester chamber-dimension profile and hardened intermediate forming body to safely neck down larger brass from the .308 Winchester cartridge family using standard 7/8"-14 threaded reloading presses.
• Handloaders requiring consistent case length via manual bench trimming — utilizes the heat-treated, file-hardened top surface to trim excess neck length flush to exact .243 Winchester chamber specifications on single-stage presses without altering full-length sizing dimensions.

Less suitable for: High-volume production trimming processing hundreds to thousands of rounds per batch; a motorized case prep center or rotary power case trimmer is better suited for high-volume automated trimming.
