What reloading press thread size does the Redding 83139 7mm-08 Remington Case Trim Die require?

The Redding 83139 trim die features industry-standard 7/8"-14 reloading press threads. This makes it natively compatible with standard single-stage and turret presses commonly used in Australian reloading benches, including brands like Redding, RCBS, Hornady, and Lee.

How does the chamber-dimension design of this trim die affect brass longevity?

Unlike standard resizing dies that force full-length resizing, the Redding trim die is machined directly to chamber dimensions. This allows you to file-trim case necks flush without unnecessary, repetitive full-length resizing, which prevents overworking the brass and significantly extends case life.

What is the expected processing speed when using the Redding 83139 manual trim die?

Being a manual file-trimming tool, processing speed is typically limited to a batch operation of 30 to 60 cases per hour, depending on user pace and fatigue. Handloaders requiring high-volume commercial output exceeding hundreds of cases per hour would be better suited to powered rotary trimmers.

Does this Redding trim die require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required. The Redding 83139 is an entirely manual, non-powered mechanical reloading tool with no electrical components, meaning 240V mains compatibility and local electrical regulations do not apply.

What additional tools or accessories are needed to operate the Redding 83139 trim die effectively?

To use this die, you will need a standard single-stage or turret reloading press, a compatible shellholder such as the Redding #1 shellholder, case lubricant, and a flat mill file to manually remove the excess brass protruding from the hardened top surface of the die.

How should I maintain the Redding 83139 case trim die to prevent rust in Australian workshop environments?

The die is constructed from heat-treated, hardened alloy steel which can be susceptible to surface rust if exposed to humidity. To ensure longevity, store the tool in a clean, dry workshop environment and apply a light coat of protective gun oil or rust preventative after use.

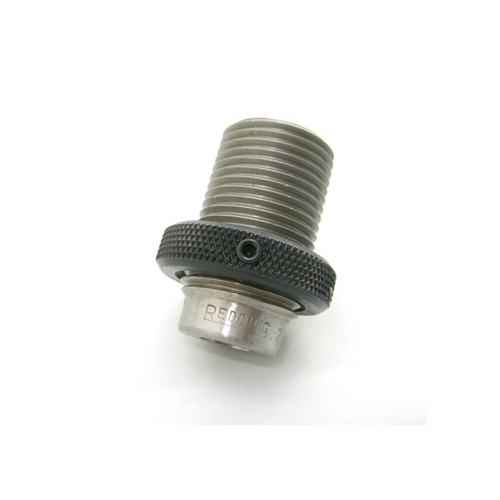

7mm 08 Trim Die - Redding 83139

The Redding 83139 7mm-08 Remington Case Trim Die provides precision handloaders with a dedicated, mechanical method for trimming cartridge brass to uniform lengths. Machined to true chamber dimensions from heat-treated, hardened alloy steel, this die allows users to file-trim case necks flush without subjecting brass to full-length resizing or unnecessary work-hardening. Operating on standard reloading presses, the die holds the lubricated case secure while the protruding case neck is hand-trimmed flat and square across the hardened top surface with a standard mill file.

Key Features

Chamber-Dimension Machining: Cut to exact chamber profiles to support the case body and neck for trimming without overworking the brass or forcing full-length sizing.
Hardened Top Surface: Constructed from hardened alloy steel specifically heat-treated to resist wear and abrasion from direct contact with flat metal files.
Case Forming Capability: Serves as an intermediate forming step when creating 7mm-08 Remington brass from parent cartridges such as .308 Winchester prior to final full-length sizing.
Manual Operation: Operates entirely without electrical power or specialised motorized accessories on standard single-stage or turret reloading presses.

Specifications

Calibre Compatibility: 7mm-08 Remington (0.284" bullet diameter)
Thread Interface: Industry-standard 7/8"-14 reloading press threads
Shellholder Compatibility: Standard #1 shellholders (Redding part #11001 or standard compatible press shellholders)
Material: Heat-treated, hardened alloy steel
Estimated Tool Weight: Approx. 200–300 g
Power Requirements: None (manual handloading tool)

Who is the Redding 7mm-08 Remington Case Trim Die for?

Handloaders reloading 7mm-08 Remington precision rifle ammunition — Threads into standard 7/8"-14 presses to trim 7mm-08 Remington cartridge cases (0.284" bullet diameter) flush across a hardened steel surface without forcing repetitive full-length resizing.
Reloaders forming 7mm-08 Remington brass from parent cases — Supports the dimensional profile of 7mm-08 Remington cases during intermediate forming steps, allowing excess neck material from parent cartridges like .308 Winchester to be filed square using 7/8"-14 threaded tooling.

Less suitable for: High-volume processing requiring throughput exceeding 30 to 60 cases per hour, which is better served by powered rotary case trimmers or motor-driven indexing prep stations.

SKU	RD102329LP
Model #	83139
Brand	Redding
Shipping Weight	0.2000kg
