What dies are included in the Redding 84125 Deluxe 3-Die Set?

This set includes a full-length sizing die to return brass to SAAMI specifications, a neck sizing die to improve case life and accuracy for bolt-action rifles, and a standard bullet seating die with a built-in crimp ring. It also comes with a plastic storage box, a spare decapping pin, and a hex wrench.

Will this 3-die set work with my standard reloading press in Australia?

Yes, the dies feature industry-standard 7/8"-14 threaded bodies designed to fit any standard single-stage or turret reloading press available on the market. As entirely mechanical precision tools, electrical compliance or Australian SAA/RCM certifications are not applicable.

Can I use the Redding 84125 set for .257 Roberts Improved or .25-06 Remington cartridges?

No, this set is strictly engineered for standard .257 Roberts chambers using a 0.257" projectile diameter. It is completely incompatible with .257 Roberts Improved (40-degree Ackley Improved) or other calibres such as the .25-06 Rem and .257 Weatherby Mag.

Do I need to purchase a shellholder separately for the Redding 84125 set?

Yes, shellholders are sold separately and are not included in the box. You will need a standard Redding Shellholder #1 (Part #11001) or a Redding Competition Shellholder #1 (Part #11601) to securely hold your .257 Roberts brass during the reloading process.

When should I use the neck sizing die versus the full-length sizing die?

The neck sizing die should only be used on fire-formed cases intended for the exact same bolt-action rifle to preserve the custom chamber fit and extend brass life. You must use the full-length sizing die when loading brass fired from different firearms or when preparing ammunition for semi-automatic, pump, or lever-action rifles to ensure reliable chambering in the field.

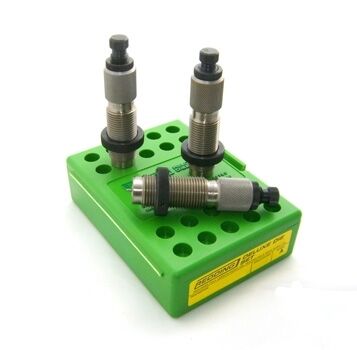

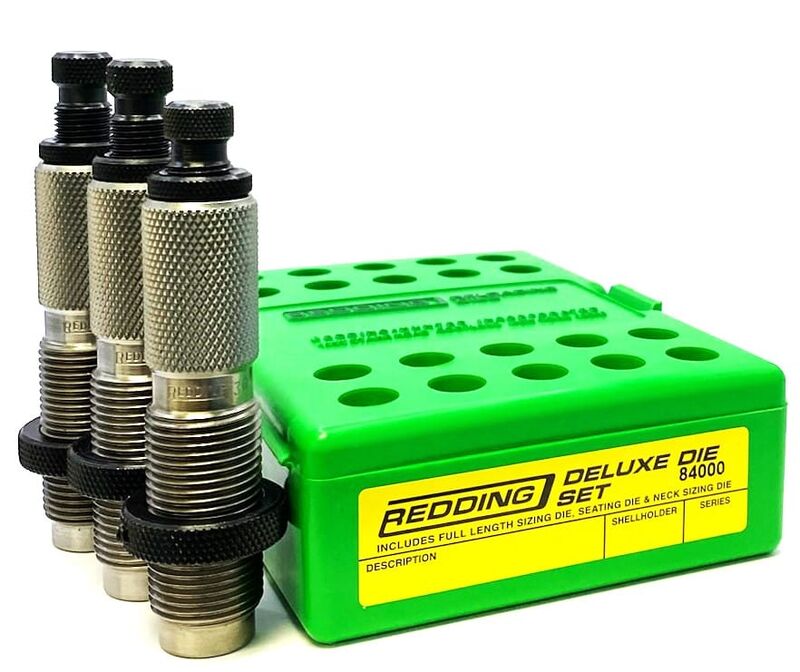

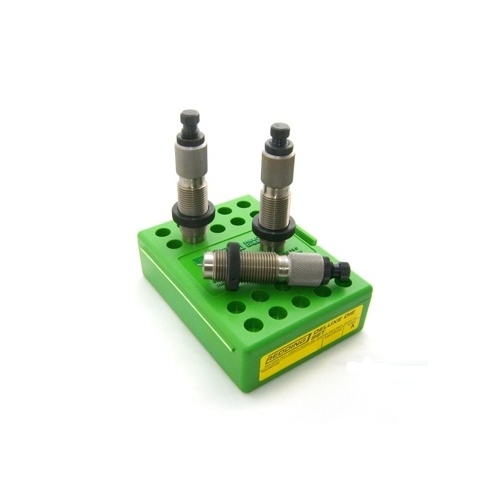

257 Roberts Die Set - Redding 84125

The Redding .257 Roberts Deluxe 3-Die Set (MPN: 84125) provides the necessary tooling to reload and resize bottleneck rifle brass for standard SAAMI .257 Roberts chambers. Built from heat-treated alloy steel machined on precision lathes with hand-polished internal surfaces, these dies utilise standard 7/8"-14 threaded bodies compatible with standard reloading presses. This set provides the flexibility of both full-length resizing for cross-rifle reliability and neck sizing for fire-formed brass longevity.

Key Features

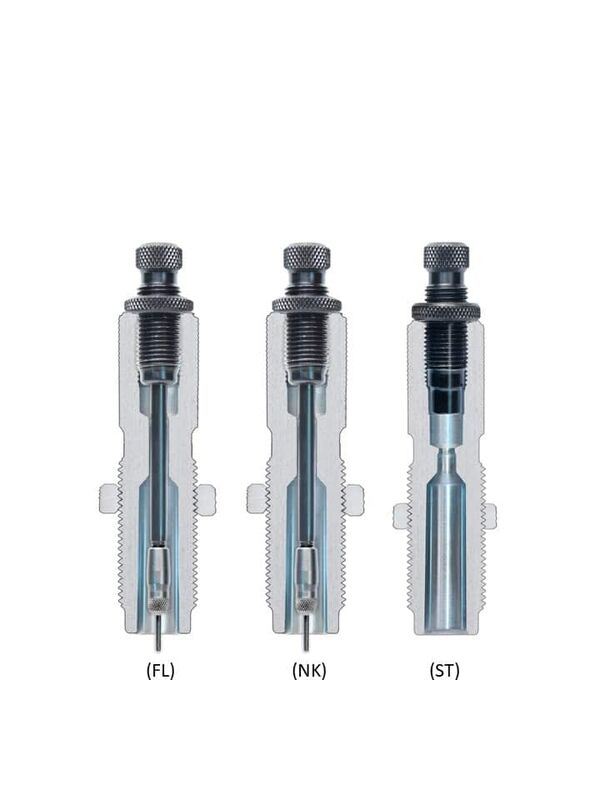

3-Die Configuration: Includes a Full-Length Sizing Die with decapping rod/expander ball assembly, a Neck Sizing Die, and a Standard Bullet Seating Die with a built-in crimp ring.
Alloy Steel Construction: Machined from heat-treated alloy steel on Hardinge Super-Precision lathes to maintain tight dimensional tolerances.
Versatile Case Preparation: Allows handloaders to choose between full-length resizing to SAAMI specifications or neck-only sizing to extend the working life of fire-formed brass.
Integrated Seating Plug: Bullet seating die features an adjustable crimp ring that accommodates crimped or non-crimped seating operations for 0.257" diameter projectiles.

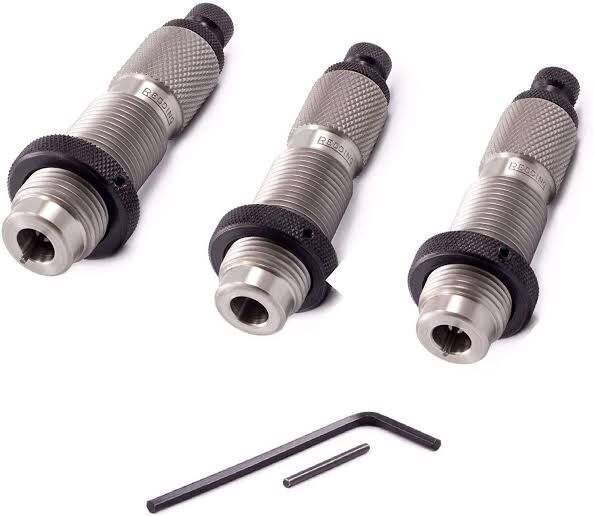

Included Accessories: Packaged in a plastic storage box complete with a spare decapping pin and a hex wrench for die adjustments.

Specifications

Calibre: .257 Roberts (0.257" projectile diameter)
Thread Size: Industry-standard 7/8"-14 thread
Die Count: 3 dies (Full-Length Sizing Die, Neck Sizing Die, Seating Die)
Material: Heat-treated alloy steel
Shellholder Compatibility: Standard Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder #1 (sold separately)
Manufacturer Part Number (MPN): 84125

Who is the Redding .257 Roberts Deluxe 3-Die Set for?

Precision handloaders shooting .257 Roberts bolt-action rifles — sizes only the case neck using the dedicated neck die in this 3-die set, preserving fire-formed dimensions to maximise accuracy and extend brass life across 0.257" diameter projectile loads.
Hunters reloading custom .257 Roberts ammunition for game — restores fired cases to factory SAAMI dimensions via the full-length sizing die on standard 7/8"-14 threaded presses, ensuring smooth cycling and chambering reliability in field conditions.

Less suitable for: Firearm chambers altered to .257 Roberts Improved (40-degree Ackley Improved) or distinct calibres like .25-06 Rem and .257 Weatherby Mag; these configurations require cartridge-specific, dedicated wildcat or magnum sizing die sets. Handloaders seeking micrometer-incremental neck tension adjustments in 0.001" steps should consider a dedicated bushing-style sizing die set.

SKU	RD102427LP
Model #	84125
Brand	Redding
Shipping Weight	0.2000kg
