Will the Redding 84159 die set work with older J-bore 8x57 Mauser rifles?

No, this die set is engineered strictly for modern 8x57mm JS Mauser chambers utilizing .323-inch diameter bullets. It is incompatible with older J-bore variants featuring a .318-inch diameter bore.

What shellholder do I need to use this die set with my standard reloading press?

The Redding 84159 features standard 7/8"-14 threads compatible with presses from brands like Redding, RCBS, Hornady, and Lee. However, you will need to separately acquire a Redding Shellholder #1 (Part #11001 or Competition Shellholder #11601) to properly hold the 8x57mm JS cases.

What is the difference between using the included neck sizing die versus the full-length sizing die?

The neck sizing die is restricted to fire-formed brass intended for use in the exact same bolt-action chamber, which helps maximize brass life and accuracy. You must use the full-length sizing die when preparing ammunition for semi-automatic rifles or multiple firearms to ensure reliable chamber feeding.

Are there any electrical compliance certifications or Australian plugs required for this product?

No electrical compliance or SAA/RCM certifications are required. The Redding 84159 Deluxe Die Set is a purely manual, non-powered mechanical tool designed for standard Australian reloading benches.

8x57 Mauser Dies - Redding 84159

The Redding 8x57 Js Mauser Deluxe Die Set (MPN: 84159) is a precision three-die reloading kit engineered for handloaders producing 8x57mm JS Mauser ammunition. Machined from heat-treated alloy steel on Hardinge Super-Precision lathes and hand-polished, this non-powered mechanical die set mounts to standard reloading presses via industry-standard 7/8"-14 threads. It provides handloaders with the tools to full-length resize, neck resize, and seat bullets to standard SAAMI chamber dimensions, ensuring dependable concentricity and headspace control.

Key Features

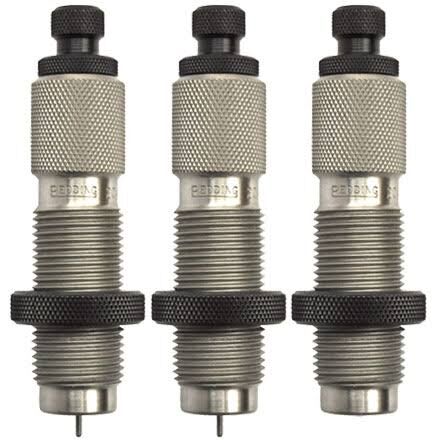

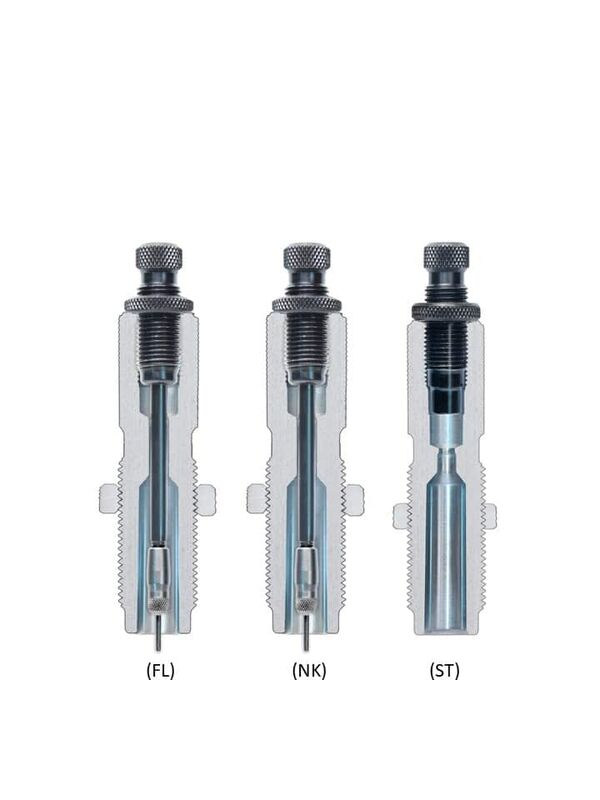

Three-Die Versatility: Contains a Full-Length Resizing Die with decapping assembly, a dedicated Neck Sizing Die, and a Bullet Seating Die with a built-in crimp ring.
Dual Sizing Flexibility: Allows reloaders to neck-size fire-formed cases to maximise brass longevity for a single rifle, or full-length resize cases for smooth feeding across multiple firearms.
Precision Construction: Manufactured from heat-treated alloy steel to tight tolerances, ensuring repeatable case dimensions and consistent bullet seating.

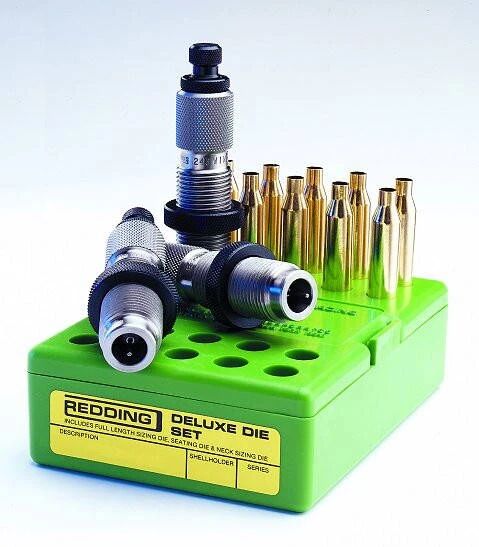

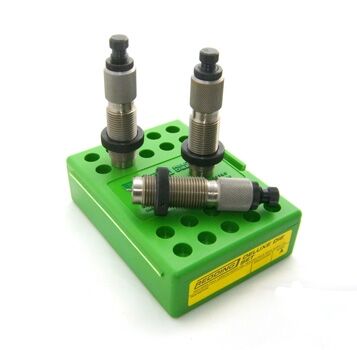

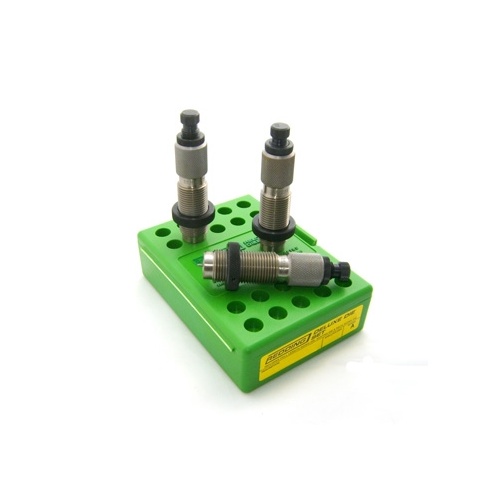

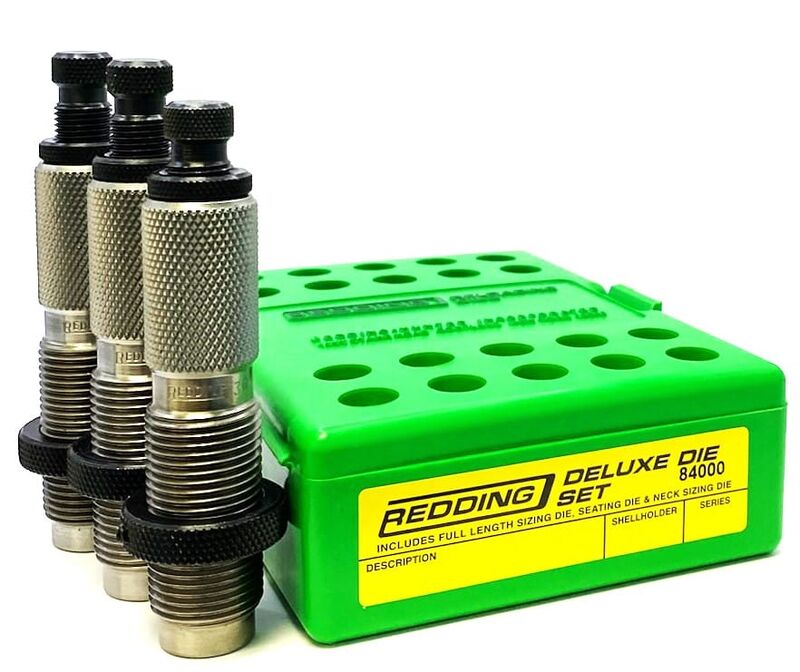

Complete Kit: Supplied in a protective plastic storage box that doubles as a loading block, including a hex wrench and a spare decapping pin (total boxed weight approximately 0.5–0.6 kg).

Product Specifications

Calibre Compatibility: 8x57mm JS Mauser (also designated 8mm x 57 Mauser)
Bullet Diameter: .323 in (8.2 mm)
Thread Standard: 7/8"-14 TPI
Required Shellholder: Redding Shellholder #1 (sold separately)
Operating Type: Manual, non-powered mechanical reloading tool
Included Components: Full-Length Resizer Die, Neck Sizer Die, Bullet Seater Die, storage box/loading block, spare decapping pin, hex wrench

Who is the Redding 8x57 Js Mauser Deluxe Die Set for?

Bolt-Action Rifle Handloaders — Benefits from the included neck sizing die in this 8x57mm JS reloading die set, which resizes only the case neck to fit fire-formed brass perfectly to a single bolt-action chamber while loading .323 in diameter bullets.
Reloaders Loading for Multiple or Semi-Automatic Firearms — Relies on the full-length resizing die with standard 7/8"-14 threads to restore fired brass back to SAAMI factory dimensions, ensuring seamless feeding and reliable chambering across different rifles chambered in 8x57mm JS Mauser.

Less suitable for: Owners of older "J-bore" 8x57 Mauser rifles requiring smaller .318 inch diameter bullets, who require a dedicated .318-calibre sizing die set; or benchrest competition shooters requiring neck-tension adjustments in thousandths-of-an-inch increments, who are better served by a bushing-style precision die set with a micrometer seating die.

SKU	RD41934LP
Model #	84159
Brand	Redding
Shipping Weight	1.0000kg
