What shellholder do I need to use with the Redding 84239 Deluxe Die Set for .225 Winchester?

This die set requires a standard Redding Shellholder #4 (Redding Part #11004 or Competition #11604), which is sold separately. Ensure you have the correct shellholder ready before attempting to mount the dies onto your press.

Will this die set work for resizing other .22-calibre bottleneck rifle brass like .223 Remington or .22-250?

No, the Redding 84239 die set is dimensionally engineered exclusively for the .225 Winchester semi-rimmed cartridge and uses a .224 inch projectile diameter. It cannot be used to resize other .22-calibre bottleneck cases such as the .223 Remington or .22-250 Remington.

Does this mechanical reloading die set require any electrical compliance markings like an SAA or RCM approval for use in Australia?

No electrical compliance markings are required for this product. Because the Redding Deluxe Die Set is entirely manual and mechanical reloading hardware operating without electricity, 240V power regulations, SAA, and RCM certifications do not apply.

What is the difference in application between the Full Length Sizing Die and the Neck Sizing Die included in this set?

The Full Length Sizing Die returns brass back to SAAMI factory dimensions and requires case lubrication to prevent stuck cases, which is necessary for brass from unknown chambers or multiple firearms. The dedicated Neck Sizing Die is strictly designed to resize only the case neck for brass fired in and returned to the exact same bolt-action or single-shot rifle, helping to extend rare .225 Winchester brass life.

Reloading Die Set - Redding 84239

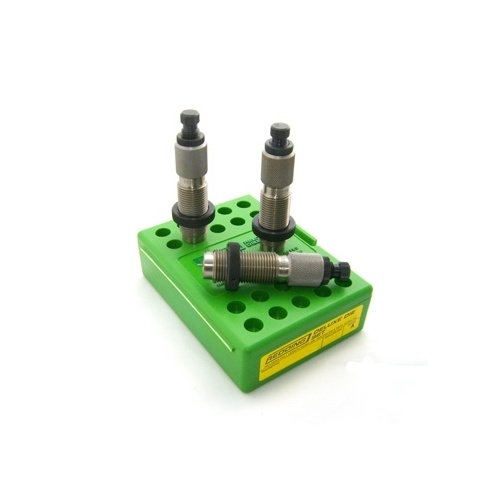

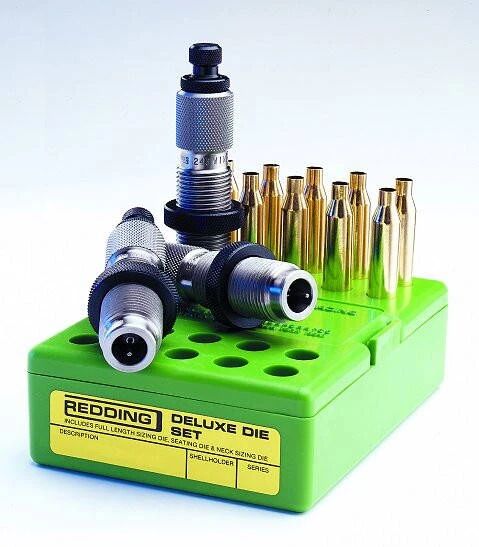

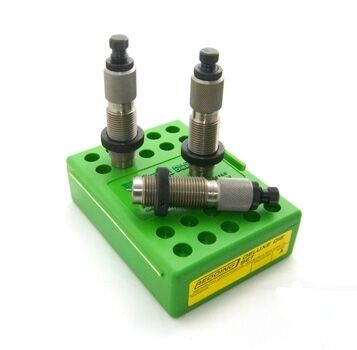

The Redding 84239 Deluxe Full Length Reloading Die Set is a premium 3-die system engineered specifically for handloading the .225 Winchester bottleneck cartridge (using .224" / 5.7mm diameter projectiles). Manufactured in Cortland, New York, the set includes a full-length sizing die with a decapping rod and neck expander button, a neck sizing die to resize fire-formed cases without working the body, and a standard bullet seating die with a built-in crimp ring. Machined from heat-treated alloy steel on precision lathes, hand-polished, and ultrasonically cleaned, these dies maintain strict SAAMI tolerances for uniform headspace and dependable chambering.

Key Features

3-Die Versatility: Provides both a full-length sizing die for universal chambering and a dedicated neck sizing die to preserve fire-formed brass dimensions.
Extended Brass Life: Neck sizing reduces work-hardening on scarce .225 Winchester cartridge cases while maintaining tighter concentricity for bolt-action platforms.
Standard Press Interface: Machined with standard 7/8"-14 TPI threads to fit mainstream single-stage, turret, and progressive reloading presses.
Included Accessories: Ships with a durable storage box that doubles as a cartridge loading block, a spare decapping pin, and a hex wrench for adjustments.

Specifications

Calibre: .225 Winchester (.224" / 5.7mm projectile diameter)
Thread Pitch: 7/8"-14 TPI
Required Shellholder: Redding Shellholder #4 (sold separately)
Die Set Type: Deluxe 3-Die Set (Full-Length Sizer, Neck Sizer, Bullet Seating Die with Crimp)
Material: Heat-treated alloy steel
Packaged Weight: Approximately 0.5 kg to 0.6 kg

Who is the Redding 84239 Deluxe Full Length Reloading Die Set For 225 Winchester for?

Handloaders maintaining legacy or custom .225 Winchester bolt-action rifles — provides standard 7/8"-14 TPI threaded full-length and seating dies built specifically to reliably cycle .224" diameter projectiles through vintage firearms like Winchester Model 70s or custom single-shot actions.
Reloaders seeking to extend rare .225 Winchester brass life via neck sizing — includes a dedicated neck sizing die that resizes only the case neck of .225 Winchester brass, eliminating unnecessary work-hardening of the fire-formed body while using standard Redding Shellholder #4 tooling.

Less suitable for: Reloading other .22-calibre bottleneck cartridges such as .223 Remington or .22-250 Remington (which require calibre-specific dies), or high-volume non-lubricated progressive loading (which requires carbide-ring sizing dies).

SKU	RD102215LP
Model #	84239
Brand	Redding
Shipping Weight	0.2000kg
