Will the Redding 84270 die set work with my standard .243 Winchester or .25 WSSM brass?

No, this die set is engineered exclusively for the .243 Winchester Super Short Magnum (.243 WSSM) cartridge. It is completely incompatible with standard .243 Winchester, .223 WSSM, .25 WSSM, or standard WSM cases due to distinct case dimensions.

What reloading press thread size does the Redding 84270 3-Die Set require?

The dies feature a standard industry 7/8"-14 thread pitch. This ensures seamless compatibility with virtually all standard single-stage and turret reloading presses available on the market.

When should I use the Full-Length Sizing Die versus the Neck Sizing Die included in this set?

Use the Neck Sizing Die strictly for fire-formed brass to be reused in the same bolt-action rifle chamber to maximize case life and accuracy. The Full-Length Sizing Die is required when reloading for multiple rifles, semi-automatic platforms, or when brass exhibits chambering resistance.

Are shellholders included in the Redding 84270 Deluxe 3-Die Set?

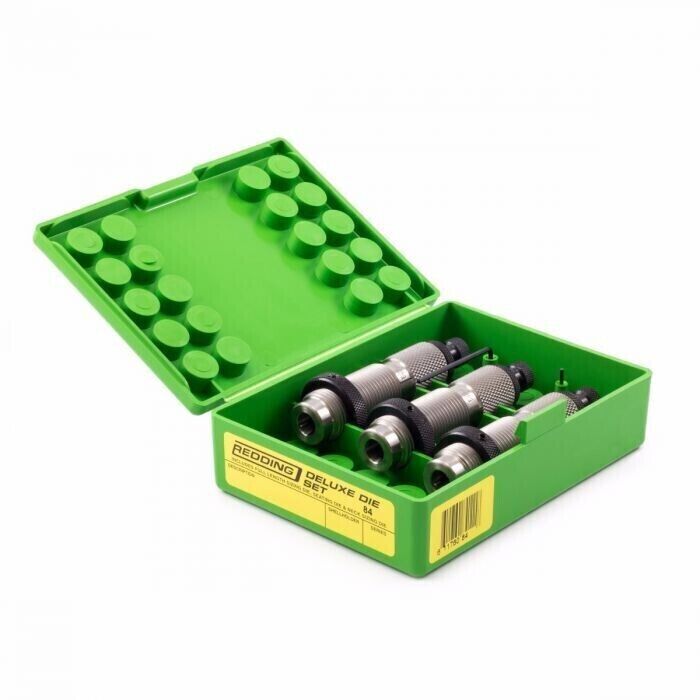

No, a shellholder is not included and must be purchased separately to suit your specific reloading press setup. The box does, however, include a plastic storage case, a spare decapping pin, and a hex wrench.

Does this mechanical reloading tool require any electrical certification or power supply for use in my Australian workshop?

No electrical compliance or SAA/RCM certification is required. The Redding 84270 is an entirely non-powered, mechanical reloading tool designed for static workbench environments, making it ideal for outback handloaders without reliance on 240V power.

.243 WSSM Die Set - Redding 84270

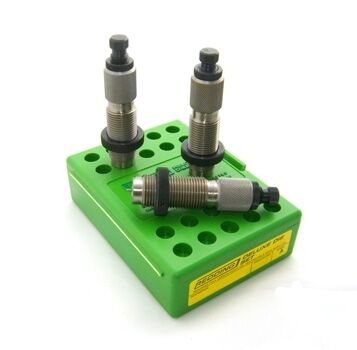

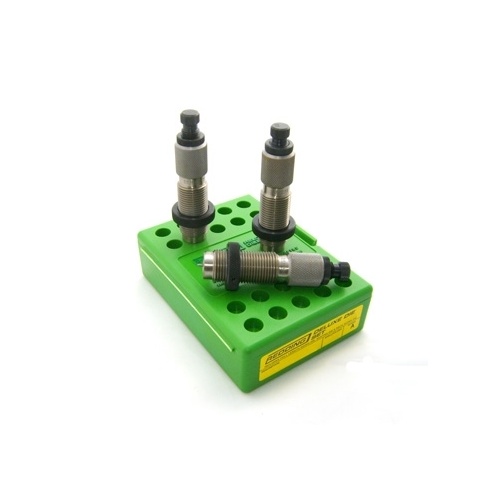

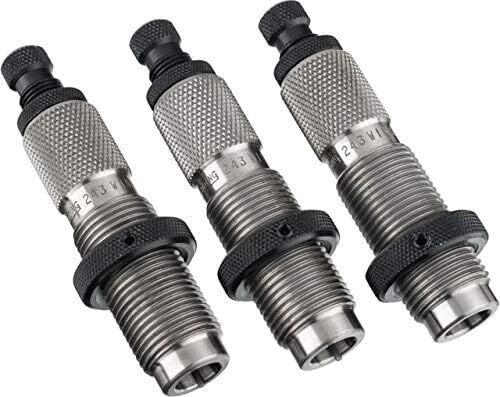

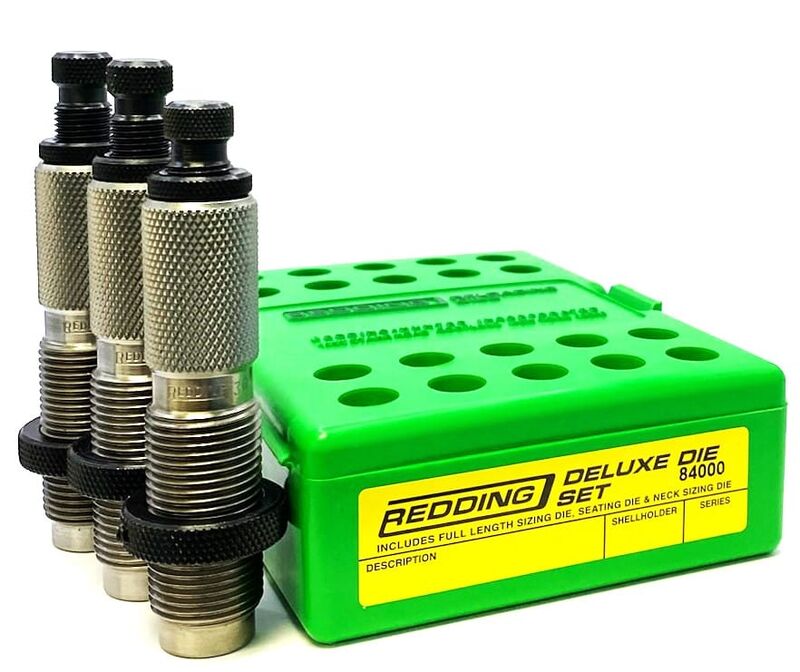

The Redding Deluxe Reloading 3 Die Set for .243 WSSM Cartridges (MPN 84270) is a dedicated handloading toolset designed for resizing, decapping, and bullet seating for .243 Winchester Super Short Magnum brass. Manufactured in the USA from heat-treated precision alloy steel with hand-polished internal surfaces, this set provides dual-sizing flexibility. Handloaders can choose between a full-length sizing die to return fired cases to factory external dimensions, or a dedicated neck sizing die to preserve fire-formed chamber fit in bolt-action rifles, extend brass case life, and minimise work-hardening. A precision standard bullet seating die with an integrated roll-crimping capability completes the set to maintain consistent bullet alignment and concentricity.

Key Features

Dual Sizing Configuration: Includes a full-length sizing die with an expander/decapping assembly for reliable chambering across different actions, plus a dedicated neck sizing die to size only the case neck of fire-formed brass.
Precision Seating Die: Features an in-line seating stem engineered for uniform bullet seating depth and concentricity, with the ability to apply or omit a roll crimp.
Heat-Treated Alloy Steel: Precision-machined and hand-polished to minimise friction, reduce case wear, and withstand continuous reloading pressure.
Universal Press Interface: Standard 7/8"-14 thread pitch mounts directly to standard single-stage and turret reloading presses.
Mechanical Operation: Fully non-powered, bench-mounted reloading equipment requiring no electrical power sources.

Product Specifications

Product Name: Redding Deluxe Reloading 3 Die Set for .243 WSSM Cartridges
Manufacturer Part Number (MPN): 84270
Cartridge Compatibility: .243 Winchester Super Short Magnum (.243 WSSM)

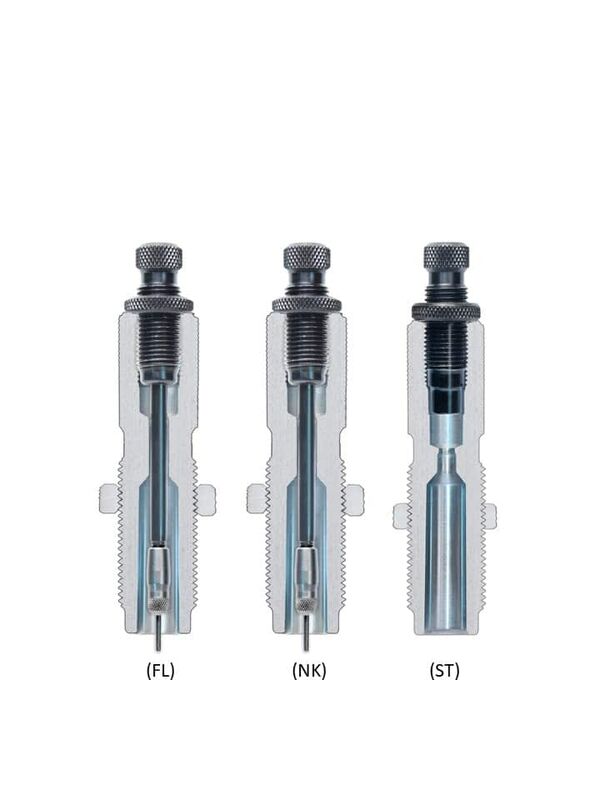

Die Set Type: 3-Die Rifle Set (Full-Length Sizing Die, Neck Sizing Die, Bullet Seating Die)
Thread Pitch: Standard 7/8"-14
Material: Heat-treated precision alloy steel
Packaged Weight: Approximately 0.55 kg to 0.68 kg (1.2 lbs to 1.5 lbs)
Country of Manufacture: United States

Who is the Redding Deluxe 3-Die Set for .243 WSSM for?

Australian varmint and long-range pest hunters — secures a reliable supply of .243 Winchester Super Short Magnum ammunition by forming cases via standard 7/8"-14 threaded reloading presses when factory-loaded rounds are unavailable locally.
Precision bolt-action target shooters — maximises cartridge concentricity and prolongs case life using the dedicated neck sizing die to size only the neck of fire-formed .243 Winchester Super Short Magnum brass for repeat firing in the same rifle chamber.

Less suitable for: Handloaders working with standard .243 Winchester, .223 WSSM, .25 WSSM, or standard WSM cases, which require dedicated calibre-specific die sets matching those distinct case lengths and body taper profiles. Shooters requiring 0.001" micrometer-adjustable seating increments or customisable neck tension bushings should look to competition micrometer bushing die sets.

SKU	RD102312LP
Model #	84270
Brand	Redding
Shipping Weight	0.2000kg
