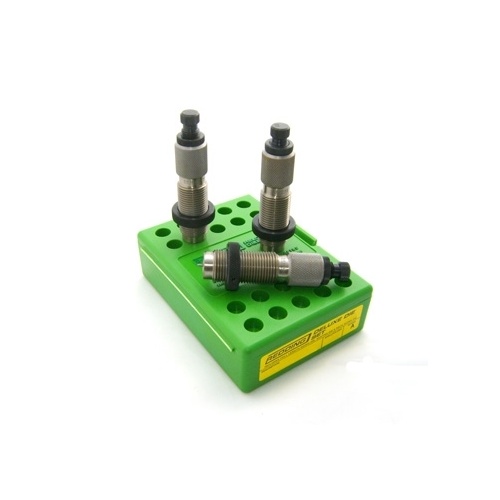

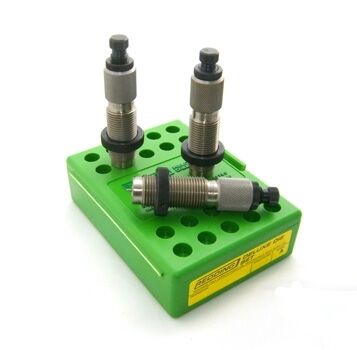

The Redding Deluxe 3-Die Set for 6mm P.P.C. USA (MPN: 84319) is a precision handloading toolset engineered for sizing and seating 6mm PPC (.243-inch bullet diameter) ammunition. Machined from heat-treated alloy steel and hand-polished on precision lathes, this mechanical set includes a full-length sizing die with a decapping rod and expander button, a dedicated neck sizing die, and a standard bullet seating die with an integrated crimp ring. Designed with universal 7/8"-14 threading, the set fits standard Australian-market single-stage and turret reloading presses, giving handloaders the choice between full-length body resizing and fire-formed neck-only sizing to extend brass life and optimize benchrest accuracy.

Key Features

• Three-Die Versatility: Contains a full-length sizing die to return cases to factory dimensions, a neck sizing die to process fire-formed brass without working the case body, and a bullet seating die with a built-in crimp ring.
• Precision Machined Steel: Crafted from heat-treated alloy steel to maintain tight dimensional tolerances through repeated reloading cycles.
• Modular Upgrade Compatibility: Accepts optional Redding upgrades, including carbide expander button kits and standard or VLD Bullet Seating Micrometer plugs.
• Universal Press Interface: Standard 7/8"-14 thread interface ensures complete compatibility with standard reloading presses.
• Smooth Internal Finish: Precision-polished internal die cavities prevent brass scoring and reduce resizing friction when used with proper case lubrication.

Product Specifications

• Manufacturer Part Number (MPN): 84319
• Cartridge Compatibility: 6mm PPC / 6mm P.P.C. USA (.243 in / 6.17 mm bullet diameter)
• Die Thread Size: 7/8"-14 TPI
• Shellholder Requirement: Redding Shellholder #12 (sold separately)
• Die Body Height: Standard ~4.25 in
• Packed Set Weight: ~0.6 to 0.7 kg (~1.3 to 1.5 lbs)
• Power Requirements: None (manual mechanical tool)

Who is the Redding Deluxe 3-Die Set for 6mm PPC Reloading for?

• Benchrest shooters shooting standard 6mm PPC USA chambers — need the neck sizing die in this 6mm PPC reloading die set to work fire-formed brass without disturbing the case body dimensions, running on standard 7/8"-14 threaded presses.
• Precision target handloaders tuning 6mm PPC rifle ammunition — require the choice between full-length resizing and neck sizing across repeated firings for the 6mm PPC cartridge using industry-standard 7/8"-14 press tooling.
• Varmint hunters reloading 6mm PPC bolt-action ammunition — use the full-length sizing die in this 6mm PPC reloading die set to ensure reliable feeding and chamber clearance on 7/8"-14 reloading presses.

Less suitable for: Handloaders running custom tight-neck benchrest chambers (such as .262-inch or .269-inch neck dimensions), who require a bushing-style neck sizing die system with interchangeable sizing bushings to precisely regulate neck tension without overworking unturned brass.
