Can I use this Redding 84362 die set with standard factory .22 Hornet brass straight out of the box?

No, this set is strictly engineered for the improved .22 K-Hornet wildcat cartridge and cannot be used with standard factory .22 Hornet brass until those cases have been properly fire-formed to the K-Hornet chamber geometry. It utilizes industry-standard 7/8"-14 threads and accepts .224" diameter projectiles once your brass is ready.

Does the Redding 84362 deluxe die set include a shellholder, or do I need to purchase one separately?

The shellholder is not included in the package and must be purchased separately. This specific set requires a Redding Shellholder #14 (Part #11014) to function correctly with your reloading press.

What is the benefit of having both a Full Length Sizing Die and a Neck Sizing Die in this 3-die set?

This deluxe configuration gives you ultimate versatility for handloading custom ammunition. The Neck Sizing Die is ideal for fire-formed brass shot exclusively in a single rifle to extend brass life and maintain chamber conformity, while the Full-Length Sizing Die ensures reliable chambering by returning cases back to exact SAAMI specifications when needed.

.22 K-Hornet Die Set - Redding 84362

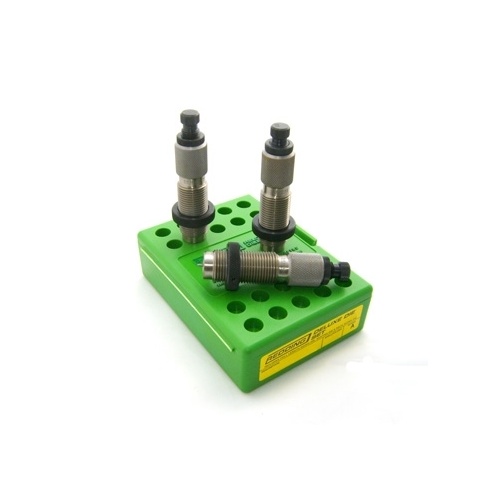

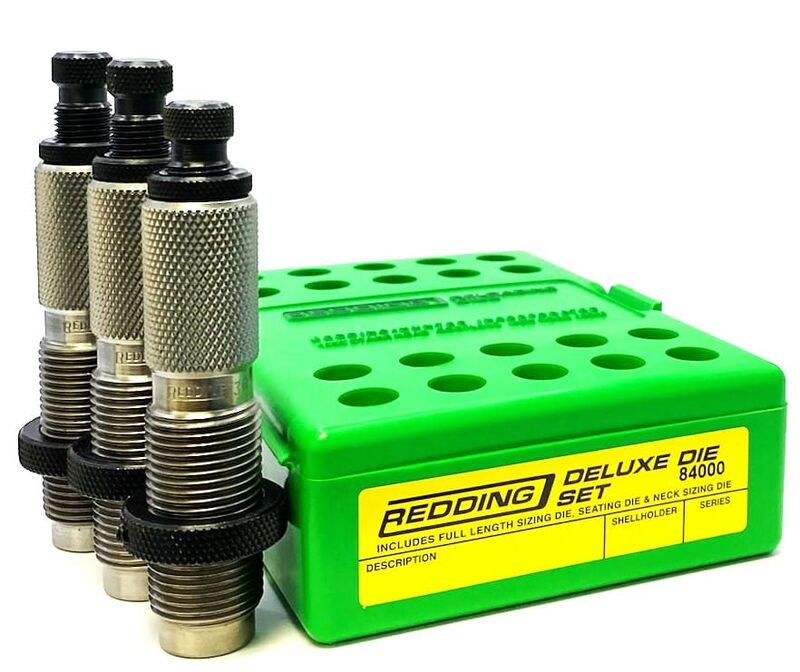

The Redding Deluxe 3-Die Set for .22 K-Hornet (MPN 84362) is a precision reloading tool designed for handloading custom ammunition for fire-formed .22 K-Hornet wildcat cartridges. Machined from heat-treated alloy steel with hand-polished internal surfaces, this set provides both full-length and neck sizing capabilities alongside a standard bullet seating die. Operating via standard 7/8"-14 press threads, it is compatible with single-stage and turret reloading presses without requiring electrical power.

Key Features

Dual Sizing Configuration: Includes a Full-Length Sizing Die (Part #91362) with a decapping rod and standard .224" expander button, plus a dedicated Neck Sizing Die (Part #81362) to maximize brass longevity for fire-formed cases.
Precision Seating Die: Includes a Bullet Seating Die (Part #92362) with a standard seating plug engineered for .224" diameter projectiles.

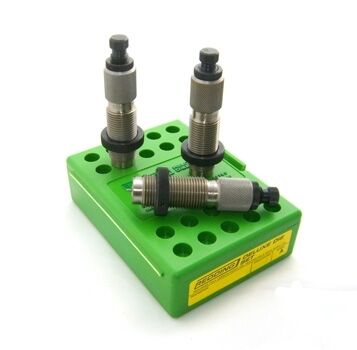

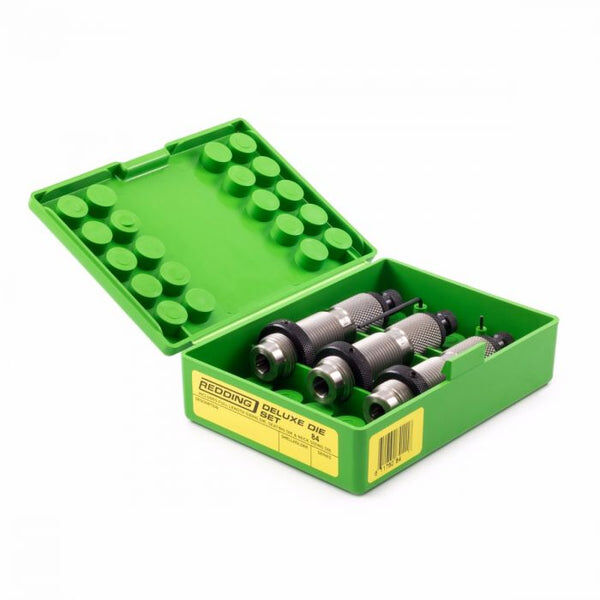

Dual-Purpose Packaging: Shipped in a hard plastic storage box measuring approximately 1.75" H × 4.25" W that doubles as a cartridge loading block.
Maintenance Spares Included: Comes supplied with an allen/hex wrench and a spare decapping pin for field and bench maintenance.

Specifications

Calibre: .22 K-Hornet (.224" projectile diameter)

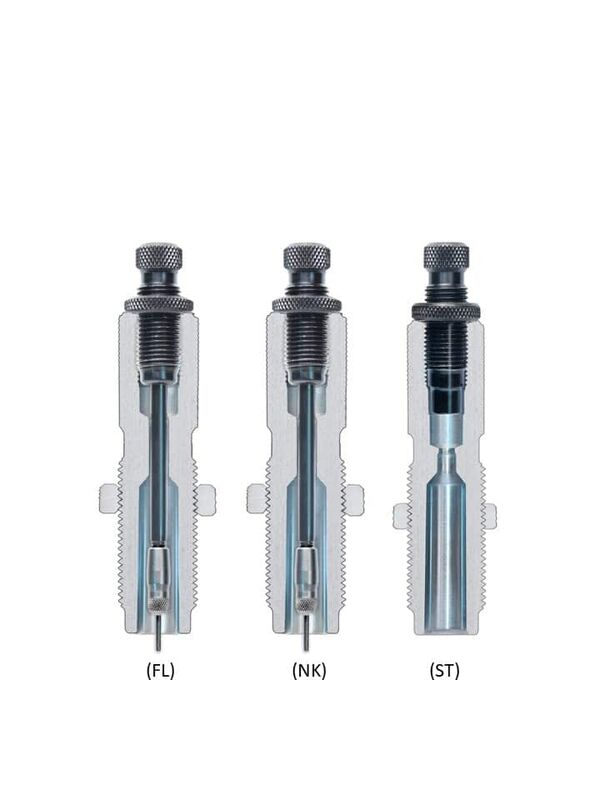

Die Set Type: Deluxe 3-Die Set (Full-Length Sizer, Neck Sizer, Bullet Seater)
Thread Interface: Industry-standard 7/8"-14 threads

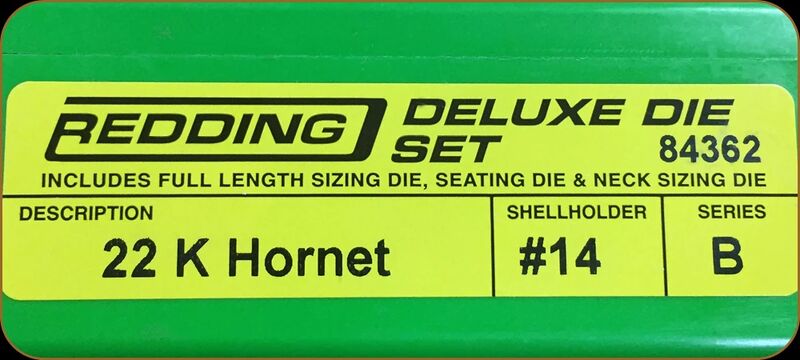

Required Shellholder: Redding Shellholder #14 (Part #11014; sold separately)
Material: Heat-treated alloy steel with hand-polished internal tooling
Shipping Weight: Approximately 500–600 g (1.1–1.3 lbs)
Power Requirements: None (manual mechanical tool)

Who is the Redding Deluxe 3-Die Set for .22 K-Hornet for?

Varmint and Small-Game Hunters — requires the precision .22 K-Hornet chamber specification with a .224" diameter expander button to handload consistent, high-velocity field ammunition on standard 7/8"-14 threaded reloading presses.
Precision Handloaders — requires both a dedicated neck sizing die and a full-length sizing die to work-harden brass less frequently and preserve fire-formed chamber conformity across repeated firings in .22 K-Hornet bolt-action rifles.

Less suitable for: Standard factory .22 Hornet brass that has not been fire-formed to .22 K-Hornet shoulder dimensions; reloaders working strictly with unformed parent brass require a standard factory .22 Hornet 2-die set instead.

SKU	RD102226LP
Model #	84362
Brand	Redding
Shipping Weight	0.2000kg
