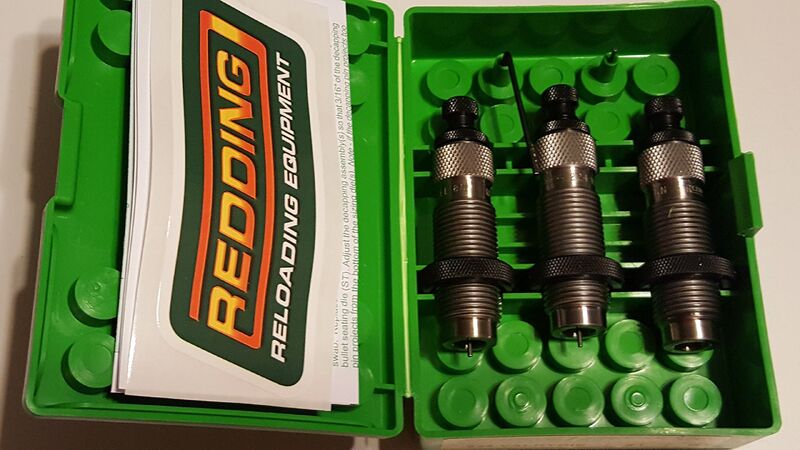

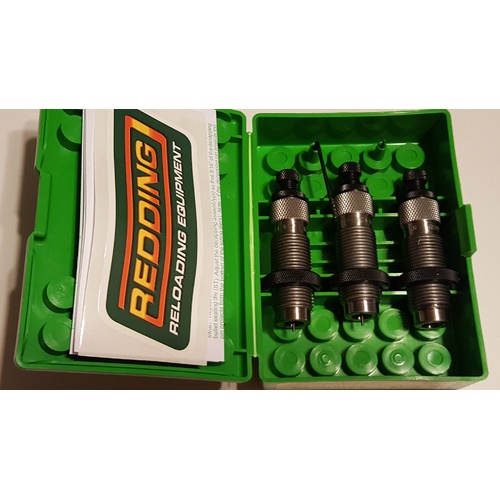

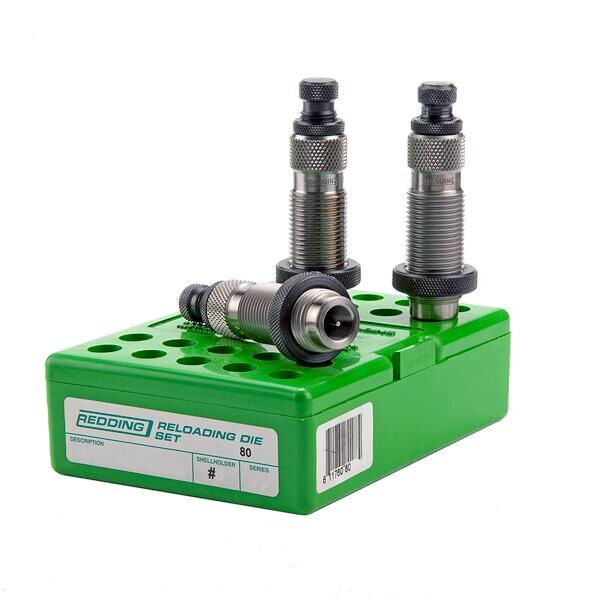

The Redding Deluxe 3-Die Set for .224 Valkyrie (Manufacturer Part Number: 84387) provides complete case resizing and projectile seating tooling for reloading .224 Valkyrie bottleneck cartridges. Machined from heat-treated alloy steel with hand-polished internal surfaces, this set includes a Full Length (FL) sizing die with a decapping rod and expander button, a dedicated Neck (NK) sizing die, and a standard bullet seating (ST) die with a built-in roll-crimp ring. Operating via standard 7/8"-14 threads, this tooling allows reloaders to alternate between restoring fired brass to factory SAAMI dimensions for semi-automatic cycling or sizing solely the case neck to prolong brass life in bolt-action rifles.

Key Features

• Three-Die Versatility: Contains a full-length sizing die, a neck sizing die, and a standard seating die to support multiple reloading procedures across different firearm actions.
• Full-Length Resizer: Deprimes spent primers and returns the case body, shoulder, and neck to standard SAAMI dimensions to ensure reliable feeding and chambering in semi-automatic platforms.
• Neck Sizing Die: Decaps and sizes only the case neck without working the shoulder or body, reducing brass fatigue and maintaining fire-formed chamber conformity for bolt-action rifles.
• Standard Bullet Seating Die: Features an integrated crimp ring and standard seating plug (#01084) to align and seat 0.224-inch diameter projectiles to consistent overall lengths (COAL).
• Alloy Steel Construction: Precision-machined and heat-treated steel dies hand-polished to internal tolerances, weighing approximately 0.65 kg to 0.70 kg in the factory storage box.

Product Specifications

• Calibre Compatibility: .224 Valkyrie (0.224-inch projectile diameter)
• Thread Interface: 7/8"-14 standard reloading press thread
• Shellholder Requirement: Redding Shellholder #5 (sold separately)
• Die Set Configuration: 3-Die Set (Full Length Sizer, Neck Sizer, Bullet Seating Die)
• Included Seating Plug: Standard Seating Plug #01084
• Total Packaged Weight: Approximately 0.65–0.70 kg

Who is the Redding Deluxe 3-Die Set for .224 Valkyrie for?

• Precision match competitors loading .224 Valkyrie for AR-15 platforms — requires the full-length sizing die mounted in a standard 7/8"-14 thread press to restore cases to SAAMI specifications for reliable cycling, paired with a Redding Shellholder #5.
• Varmint hunters handloading match-grade .224 Valkyrie ammunition — benefits from the standard seating die to seat 0.224-inch diameter bullets to uniform overall lengths with consistent crimp tension in standard 7/8"-14 reloading presses.
• Bolt-action shooters reloading .224 Valkyrie cartridges — utilises the dedicated neck sizing die in 7/8"-14 threaded presses to deprime and resize fire-formed .224 Valkyrie brass without working the case shoulder, extending case life and preserving chamber fit.

Less suitable for: Reloading parent cases such as 6.8 SPC or alternative calibres like .223 Remington due to mismatched headspace and chamber dimensions; shooters loading non-.224 Valkyrie bottleneck cartridges require a calibre-specific reloading die set matched to their cartridge's SAAMI dimensions.
