What is included in the Redding 84414 Deluxe 3-Die Set for 6mm/284 Winchester?

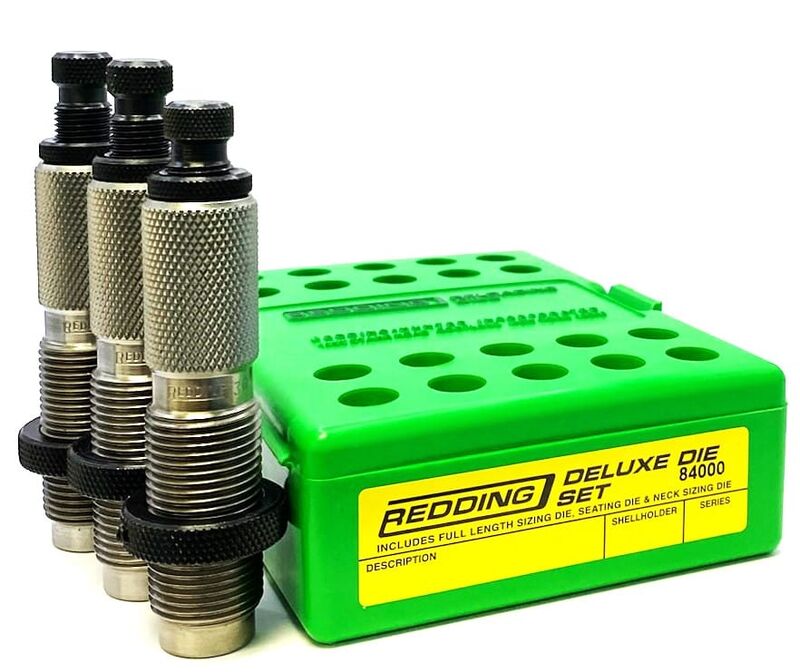

The Redding 84414 set includes three specific dies: a Full-Length Sizing Die with a decapping rod assembly and size button, a Neck Sizing Die, and a Standard Bullet Seating Die with a built-in crimp ring. It also comes with a spare decapping pin, a hex wrench, and a durable plastic storage case.

What shellholder do I need to use with this 6mm/284 Winchester die set on my reloading press?

This die set requires a Redding Standard Shellholder #1 (Part #11001) or a Redding Competition Shellholder #1, which must be purchased separately. The dies themselves feature an industry-standard 7/8"-14 thread interface to fit most single-stage and progressive reloading presses.

Can I use the neck sizing die included in this set for brass fired in different rifles?

No, the Neck Sizing Die is strictly intended for brass fired exclusively in your specific bolt-action rifle chamber to minimise brass fatigue and enhance alignment. If you are reloading for multiple different rifles or semi-automatic actions, you must use the Full-Length Sizing Die to ensure reliable chambering.

Does the Redding 84414 die set require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because this is a purely manual, mechanical handloading tool set that does not use 240V power. It is fully suited for use in Australian reloading benches, outback workshops, or rural properties without any electrical constraints.

Will this die set work with standard .284 Winchester or other 6mm cartridges like .243 Winchester?

No, this die set is strictly built for the 6mm/284 Winchester cartridge, which uses a 0.243" bullet diameter paired with a 284 Winchester case body. It will not function correctly on standard .284 Winchester cartridges, 6mm Creedmoor, or 6mm BR, and attempting to use it on mismatched calibres can cause dangerous cartridge deformities.

How should I maintain these heat-treated alloy steel dies to protect them from corrosion in humid Australian climates?

To ensure a lifetime of service and prevent atmospheric corrosion, you should keep the exterior and interior surfaces lightly coated with a quality gun oil or rust preventative when storing them in their plastic case. Avoid exposing them to prolonged moisture, especially in coastal or humid regional environments.

6mm 284 Reloading Dies - Redding 84414

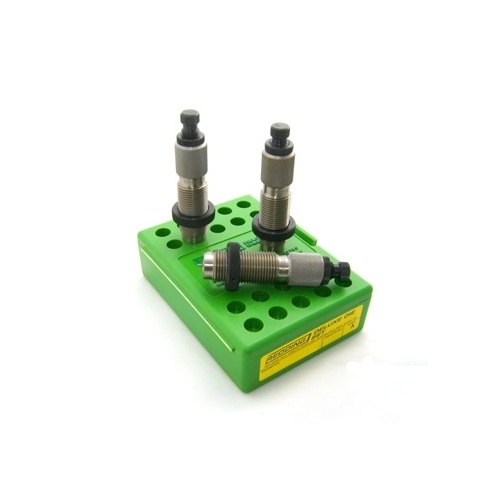

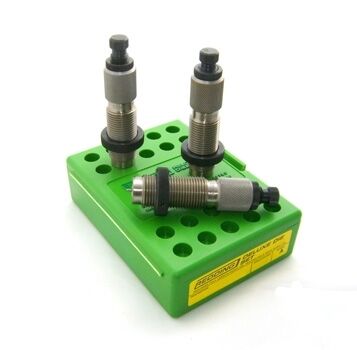

The Redding 84414 6mm/284 Winchester Deluxe Reloading 3 Die Set provides the essential tooling required to resize brass cases and seat projectiles for the high-velocity 6mm-284 Winchester rifle cartridge. Machined from heat-treated alloy steel with polished internal surfaces, this Series C three-die set allows reloaders to alternate between full-length sizing and fire-formed neck sizing to maintain chamber alignment and extend case life. The set operates via standard 7/8"-14 threading and functions without electrical power on conventional reloading presses.

Key Features

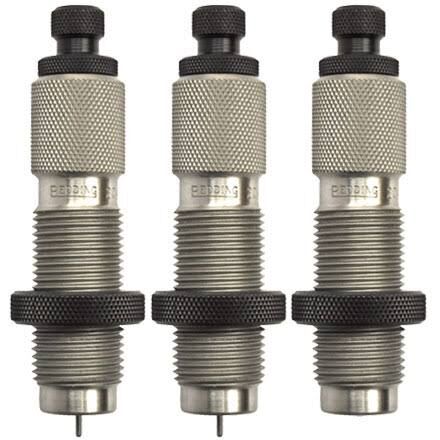

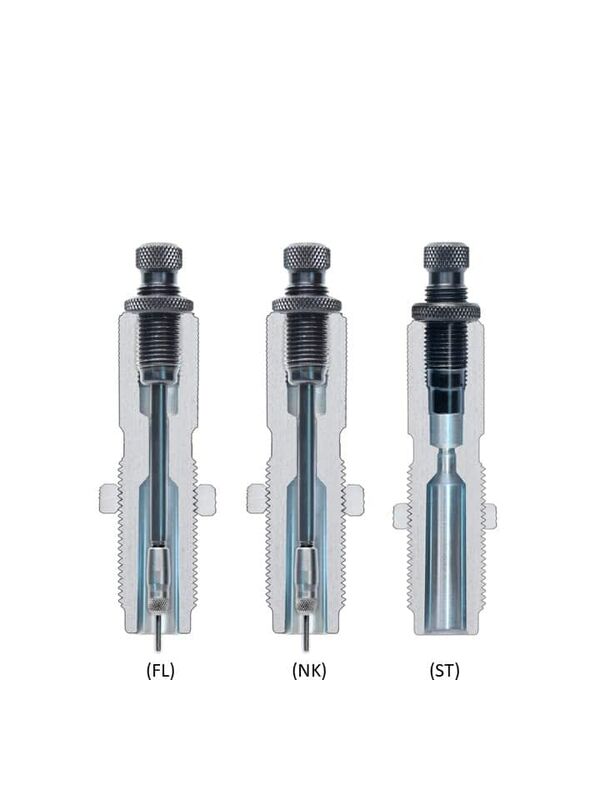

Three-Die Versatility: Contains a Full-Length Sizing Die (Part #91414) with decapping assembly, a Neck Sizing Die (Part #81414), and a Standard Bullet Seating Die (Part #92414).
Brass Life Optimisation: Enables neck-only resizing for fire-formed brass to reduce work-hardening, while retaining the full-length die to restore SAAMI-style exterior dimensions when case expansion causes tight chambering.
Precision Machined Steel: Heat-treated alloy steel construction, ground and polished internally to minimise friction and brass galling during the resizing stroke.
Standard Seating Assembly: Includes a standard seating plug engineered for uniform bullet alignment with crimp or non-crimp functionality.

Specifications

Calibre: 6mm-284 Winchester (.243" / 6mm projectile diameter necked on a .284 Win case)
Die Thread Interface: Standard 7/8"-14 thread
Shellholder Compatibility: Redding Standard Shellholder #1 (Part #11001) or Redding Competition Shellholder #1 (sold separately)
Weight: Approximately 0.5 kg to 0.7 kg (1.1 lbs to 1.5 lbs) total weight including storage box
Power Requirements: Manual mechanical operation (no electrical requirements)

Who is the Redding 84414 6mm/284 Winchester Deluxe Reloading 3 Die Set for?

Long-range precision rifle shooters — standard 7/8"-14 thread die stations accommodate this 6mm-284 Winchester reloading die set to produce ammunition with consistent bullet seating and dedicated neck tension for tighter downrange groupings.
Handloaders and hunters running custom bolt-action rifles — 0.243-inch projectile sizing combined with a dedicated Neck Sizing Die allows reloaders to maintain fire-formed case dimensions perfectly fire-formed to a single bolt-action chamber while extending brass working life.

Less suitable for: Firearm platforms requiring ammunition interchangeability across multiple rifles, semi-automatic actions, or standard .284 Winchester (0.284" bullet diameter) cartridges. Reloaders seeking micrometer-adjustable seating depths or custom neck-bushing tension control should use a competition bushing-style die set.

SKU	RD102960LP
Model #	84414
Brand	Redding
Shipping Weight	0.2000kg
