What shellholder do I need to use with the Redding 84544 7mm STW Deluxe Die Set?

This die set requires a Redding #6 Standard Shellholder (MPN: 11006) or a Competition Shellholder #6 (MPN: 11606), which must be purchased separately. The dies feature industry-standard 7/8"-14 threaded bodies, making them fully compatible with standard single-stage and turret reloading presses commonly used by Australian handloaders.

Can I use the Redding 84544 dies for standard 7mm Remington Magnum or 7mm PRC brass?

No, this die set is strictly engineered to the specific dimensions of the bottleneck 7mm STW (Shooting Times Westerner) cartridge and cannot be used for 7mm Rem Mag, 7mm-08, or 7mm PRC cases. Attempting to use them with other calibres will result in improperly formed brass and potential chambering failures in your rifle.

What is the difference in application between the Full Length Sizing Die and the Neck Sizing Die included in this set?

The Full Length Sizing Die returns fired brass entirely to SAAMI specifications and bumps the shoulder back, which is essential for newly sourced range brass or rounds destined for field hunting where absolute chambering reliability is vital. The Neck Sizing Die only sizes the neck portion of the case to preserve fire-formed brass dimensions, minimise case stretching, and extend brass lifespan for specific bolt-action rifles.

Does this manual reloading tool require any Australian electrical compliance or SAA/RCM certifications?

No, the Redding 84544 is a purely mechanical handloading tool that requires no mains electricity, 240V power supply, or batteries. Because it operates entirely by manual hand power, it is exempt from Australian SAA or RCM electrical safety approvals and is ready for immediate setup on your bench.

7mm STW Die Set - Redding 84544

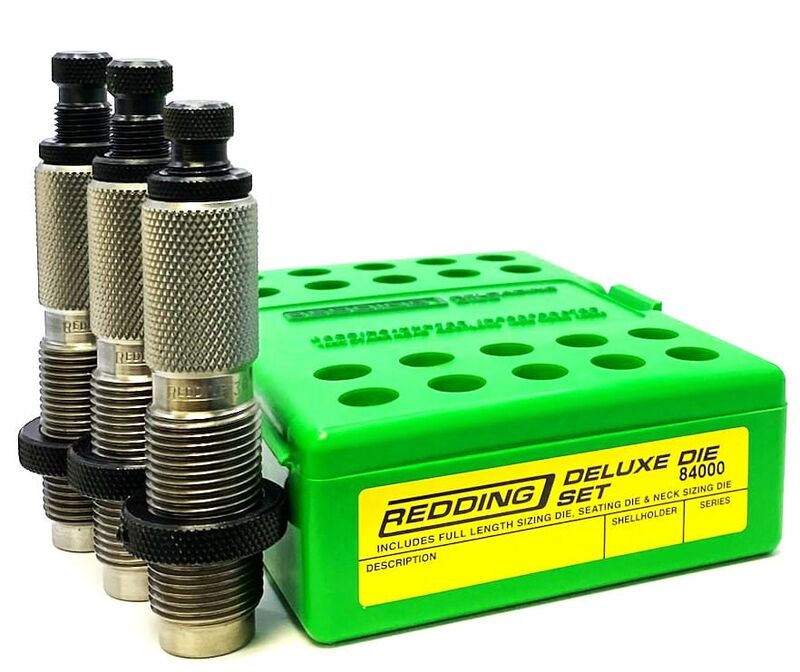

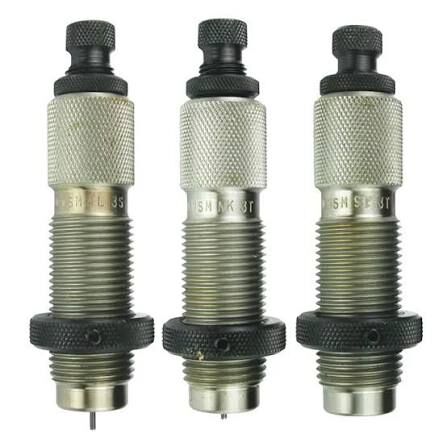

The Redding 84544 Deluxe 3-Die Set is a precision handloading toolset designed for the 7mm Shooting Times Westerner (7mm STW) bottleneck rifle cartridge. Machined on Hardinge lathes from heat-treated alloy steel, hand-polished, and ultrasonically cleaned, this set provides both full-length and neck-sizing flexibility alongside precision projectile seating. Built with industry-standard 7/8"-14 threaded bodies, these purely mechanical dies thread directly into standard Australian reloading presses to assemble accurate, reliable ammunition tailored for high-velocity bolt-action rifles.

Key Features

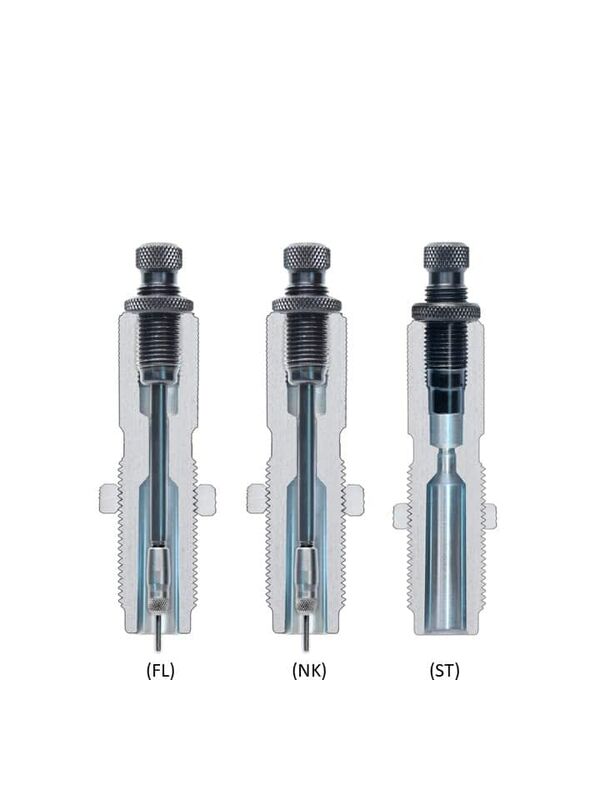

Full-Length Sizing Die: Returns fired brass to SAAMI dimensions and bumps the shoulder back, including a built-in decapping rod assembly to prepare cases for reliable chambering across factory and custom chambers.
Dedicated Neck Sizing Die: Sizes only the case neck to preserve fire-formed cartridge dimensions, prolonging brass working life and improving intrinsic accuracy for a specific rifle.
Standard Bullet Seating Die: Features an internal seating stem capable of non-crimping or roll-crimping operations for 0.284" / 7mm projectiles.
All-Steel Construction: Heat-treated alloy steel construction ensures strict dimensional tolerances under continuous reloading press leverage.

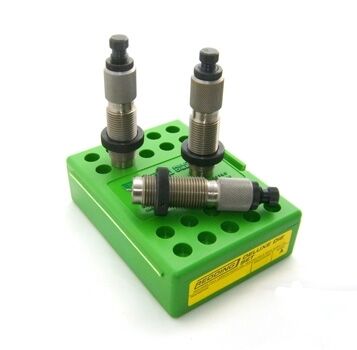

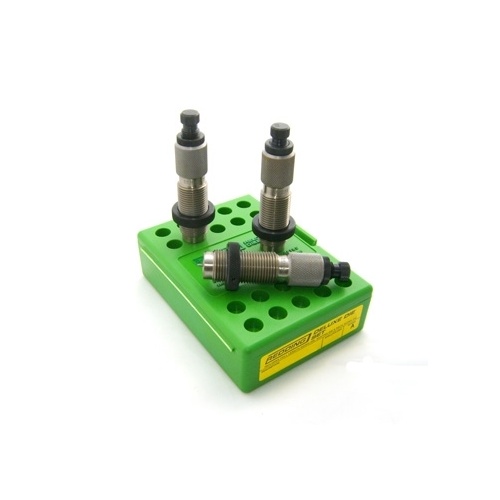

Included Accessories: Ships in a dedicated storage box that doubles as a cartridge block, complete with a hex wrench and a spare decapping pin.

Product Specifications

Calibre: 7mm Shooting Times Westerner (7mm STW)
Bullet Diameter Compatibility: 0.284" / 7mm
Thread Pitch: 7/8"-14 standard threads
Shellholder Required: Redding #6 Standard Shellholder (MPN: 11006) or Competition Shellholder #6 (MPN: 11606) (sold separately)
Die Material: Heat-treated, hand-polished alloy steel
Total Shipping Weight: Approximately 0.6–0.7 kg
Power Requirements: Manual mechanical operation (no electrical requirements)

Who is the Redding Deluxe 3-Die Set for 7mm STW for?

Long-range hunters — requires the full-length sizing die with standard 7/8"-14 threaded bodies to guarantee smooth chambering and dependable field cycling for high-velocity 7mm STW bottleneck cartridges.
Precision handloaders — utilises the dedicated neck sizing die to preserve fire-formed case dimensions for 0.284" / 7mm diameter projectiles fired through a single bolt-action rifle, reducing brass fatigue and maintaining tighter grouping consistency.

Less suitable for: Firearm owners shooting other 7mm variants, as these dies are strictly engineered for the 7mm STW and cannot size standard 7mm Rem Mag, 7mm-08, or 7mm PRC brass; shooters interchanging neck-sized-only brass across multiple distinct rifles of the same calibre require full-length sizing dies, while benchrest reloaders needing incremental neck tension control without an expander ball require bushing-style sizing dies.

SKU	RD102252LP
Model #	84544
Brand	Redding
Shipping Weight	0.2000kg
