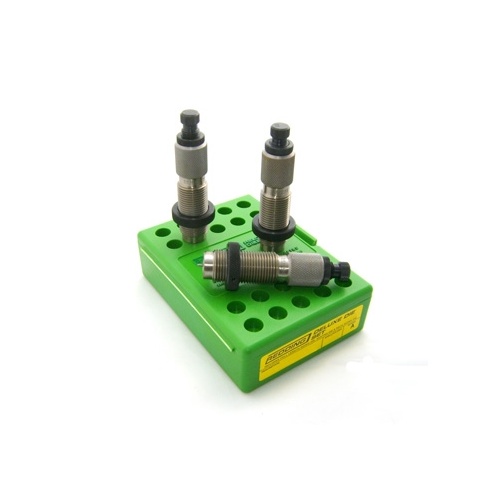

The Redding 6.5 Weatherby RPM Deluxe Die Set (Model 84794) is a specialised 3-die rifle reloading set engineered to process and handload .264" (6.5 mm) calibre 6.5 Weatherby Rebated Precision Magnum cartridge cases. Machined from heat-treated alloy steel on precision lathes and finished with hand-polished internal surfaces, this set provides both full-length resizing and fire-formed neck-sizing capabilities for standard reloading benches.

Key Features:

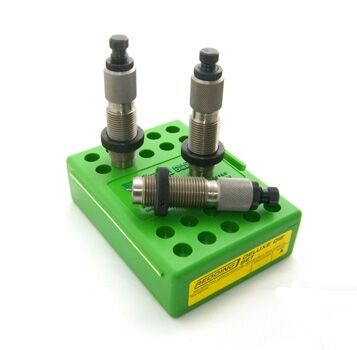

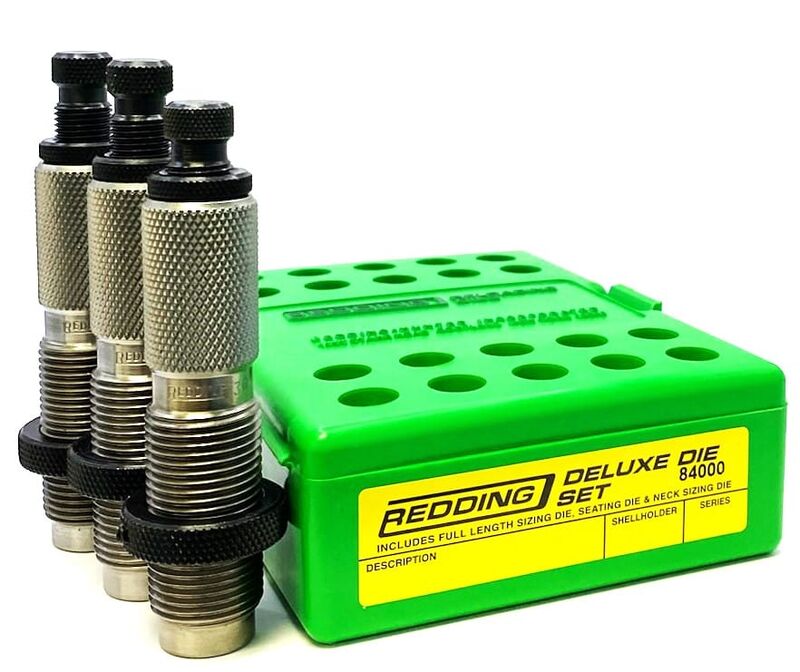

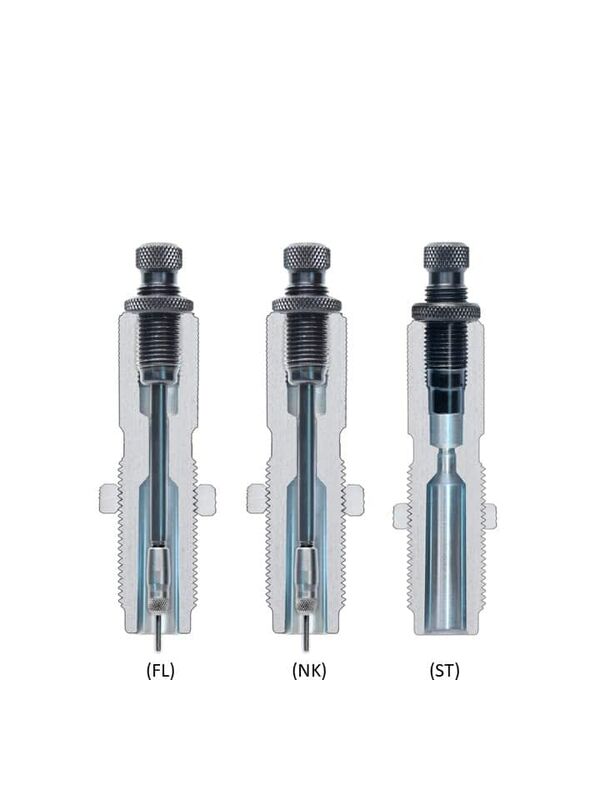

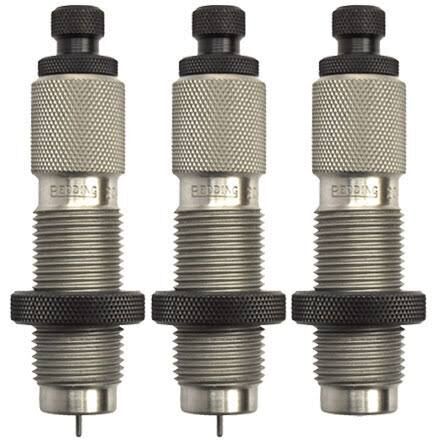

• Deluxe 3-Die Configuration: Includes a Full-Length Sizing Die with a decapper rod and expander button, an independent Neck Sizing Die to preserve fire-formed brass geometry, and a Bullet Seating Die.
• Precision Bullet Seating: The seating die features an internal bullet alignment guide and an integrated roll-crimp shoulder to secure .264" projectile depth and tension.
• Universal Press Threading: Built with industry-standard 7/8"-14 thread to fit standard single-stage and progressive reloading presses.

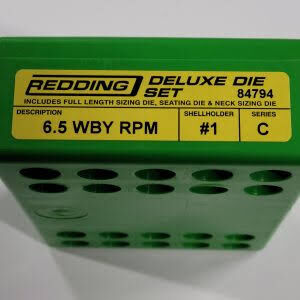

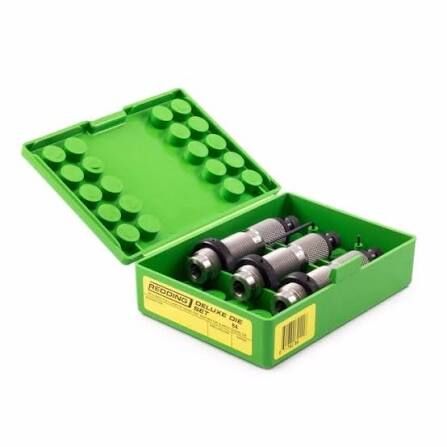

• Convenient Packaging: Ships in a plastic storage box designed to function as a cartridge loading block, including a spare decapping pin and hex wrench.

Specifications:

• Brand: Redding Reloading Equipment
• Model Number: 84794
• Calibre: 6.5 Weatherby Rebated Precision Magnum (6.5 Wby RPM)
• Bullet Diameter Compatibility: .264" (6.5 mm)
• Die Thread Size: 7/8"-14 thread
• Shellholder Compatibility: Redding #1 Shellholder or #1 Competition Shellholder
• Unit Shipping Weight: Approximately 0.6–0.7 kg
• Power Requirements: Manual operation (non-powered)

Who is the Redding 6.5 Weatherby RPM Deluxe Die Set for?

• Australian long-range hunters shooting ultra-lightweight bolt-action rifles — Full-length resizes 6.5 Weatherby Rebated Precision Magnum cases back to factory chamber tolerances using standard 7/8"-14 thread presses to ensure smooth, reliable chamber feeding in field conditions.
• Handloaders seeking both neck and full-length sizing options — Provides a dedicated neck sizing die alongside a full-length sizer for .264" calibre 6.5 Weatherby RPM brass, allowing shooters to prolong brass case life by working only the neck on fire-formed cases fired from a single rifle.

Less suitable for: Reloading other 6.5mm cartridges such as 6.5 Creedmoor, 6.5 PRC, or .264 Win Mag due to distinct shoulder and chamber geometry; handloaders requiring exact, measurable bullet seating depth down to 0.001" increments without trial-and-error (who need micrometer-head competition seating dies); or benchrest and F-class shooters requiring precise bushing-based neck tension control without an expander button (who need specialised Type S bushing dies).
