What shellholder do I need to use with the Redding 7mm Rem Mag Full Length Sizing Die?

This die requires a standard Shellholder #6 (such as Redding Part #11006 or Competition #11606), which is sold separately. Ensure you have the correct shellholder to securely lock your 7mm Remington Magnum brass into position during the sizing stroke.

Does this mechanical sizing die require any electrical certification or plug adapters for use in Australia?

No electrical compliance or SAA/RCM certifications are required. This product is a purely mechanical handloading tool with no electrical components, meaning it operates entirely without mains power in your workshop or outback shed.

Is this full length sizing die suitable if I want ultra-precise control over neck tension for a single rifle?

While this standard full length die returns fired brass to SAAMI specifications and is ideal for mixed brass lots or hunting ammunition, shooters seeking ultra-precise neck tension control in 0.001-inch increments for a single rifle should instead consider a Redding Type S Bushing Full Length Die or Neck Sizing Die.

7mm Rem Mag Sizing Die - Redding 91136R

Q: Will this Redding 91136R full length sizing die fit my standard reloading press in Australia?

Yes, the die features an industry-standard 7/8"-14 TPI thread interface. It is fully compatible with all standard single-stage, turret, and progressive reloading presses from brands like Redding, RCBS, Hornady, Lee, and Lyman used on Australian reloading benches.

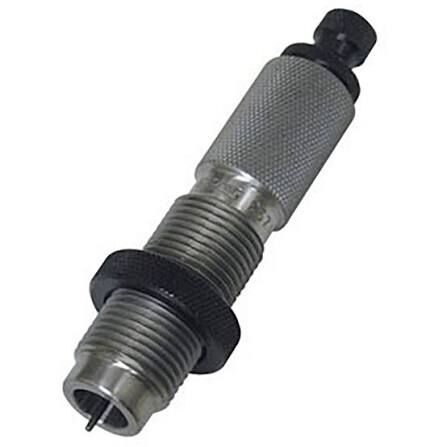

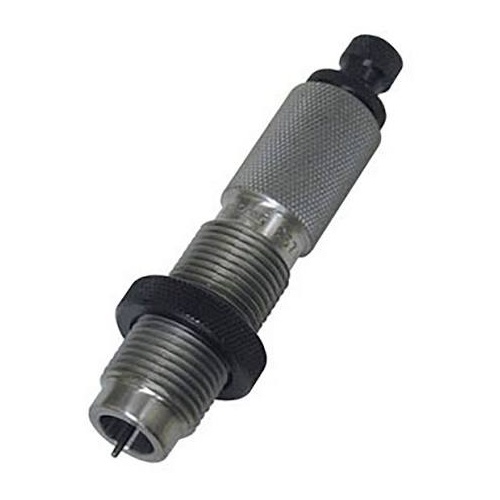

The Redding 7mm Rem Mag Full Length Sizing Die restores fired 7mm Remington Magnum bottleneck brass cases back to factory SAAMI dimensions. Machined from high-grade alloy steel, heat-treated, and hand-polished, this die resizes the case body, bumps the shoulder back to standard headspace, sizes and expands the neck, and decaps spent boxer primers in a single downstroke. It features an industry-standard 7/8"-14 TPI thread interface, making it compatible with standard single-stage, turret, and progressive reloading presses.

Key Features

Full Dimension Resizing: Sizes the case body, sets back the shoulder, and expands the neck to factory SAAMI dimensions to ensure smooth feeding and chambering across various rifles.
Integrated Decapping Assembly: Built with a decapping rod assembly, steel expander size button, and decapping pin to remove spent primers simultaneously during the sizing stroke.
Precision Heat-Treated Alloy Steel: Precision-ground and hand-polished interior surfaces reduce brass friction and minimise case stretching during full-length resizing.
Standard Press Mounting: Uses standard 7/8"-14 threads per inch (TPI) to integrate seamlessly into standard reloading press setups.

Specifications

Calibre: 7mm Remington Magnum
Bullet Diameter: .284 in (7.21 mm)
Thread Interface: 7/8"-14 TPI
Required Shellholder: Shellholder #6 (sold separately)
Operating Mechanism: Mechanical manual press operation (non-powered)
Included Components: Full-length sizing die body, decapping rod assembly, steel expander size button, and decapping pin

Who is the Redding 7mm Rem Mag Full Length Sizing Die for?

Hunters and Field Shooters — requires guaranteed chambering and extraction for .284 in (7.21 mm) 7mm Remington Magnum hunting rifles by sizing the entire case body and shoulder back to SAAMI specifications using standard 7/8"-14 TPI reloading presses.
Reloaders Processing Mixed-Rifle Brass — ensures cartridges fired across multiple chambers are restored to uniform dimensions with this 7mm Rem Mag full length sizing die, functioning with standard Shellholder #6 tooling.

Less suitable for: Target shooters seeking ultra-precise control over neck tension in single, dedicated bolt-action rifles, who require a bushing-style full length die or dedicated neck sizing die.

SKU	RD41963LP
Model #	91136R
Brand	Redding
Shipping Weight	1.0000kg
