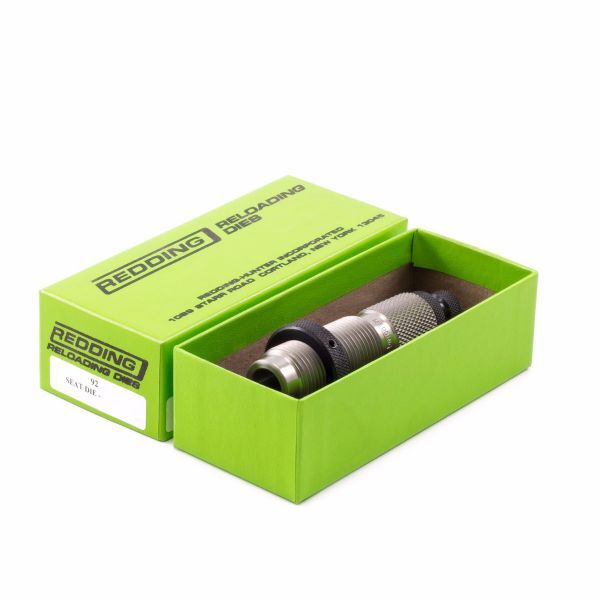

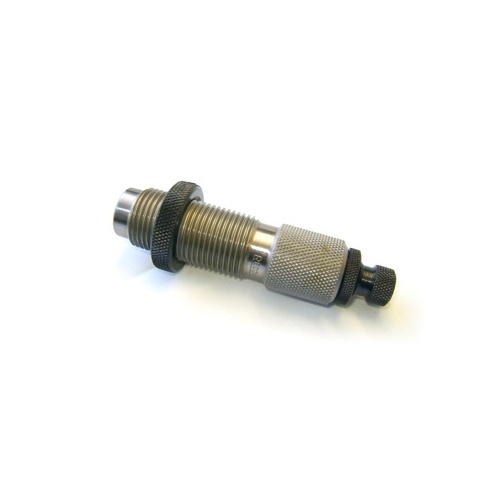

The Redding 92114 Standard Seating Die is a precision-machined reloading tool engineered specifically for seating projectiles into .243 Winchester cartridge cases. Constructed from heat-treated, case-hardened alloy steel finished to SAAMI chamber dimensions, it features an internal bullet guide that aligns the projectile with the cartridge case neck prior to seating to minimise runout. Built with an industry-standard 7/8"-14 thread pattern, this mechanical die operates on all standard single-stage and progressive reloading presses without requiring electrical power.

Key Features

• Internal Bullet Alignment Guide: Aligns .243-calibre projectiles directly with the case neck to maintain concentricity during the seating stroke.
• Integrated Roll-Crimping Ring: Enables simultaneous projectile seating and roll-crimping, or can be adjusted upward to seat bullets without crimping.
• Standard Seating Plug: Fitted with the factory Redding #01067 seat plug designed for traditional soft point and spitzer bullet profiles.
• Upgrade Compatibility: Accommodates optional Redding Standard (#09067) or VLD (#09167) Bullet Seating Micrometers for direct micrometer-adjustable depth control.

Technical Specifications

• Cartridge Compatibility: .243 Winchester (0.243 in / 6mm diameter projectiles)
• Thread Size: 7/8"-14 standard reloading thread
• Included Seating Plug: Seat Plug #01067
• Required Shellholder: Shellholder #1 (Redding Part #11001, sold separately)
• Material: Heat-treated, case-hardened alloy steel
• Die Group: Redding Series A

Who is the Redding 92114 Standard Seating Die for?

• Australian pest and deer hunters — loading field ammunition for .243 Winchester rifles across manual presses using the industry-standard 7/8"-14 thread pattern to seat 0.243 in diameter hunting projectiles.
• Target shooters and routine handloaders — assembling standard range rounds on presses with a 7/8"-14 thread mount, utilizing a standard bullet seating die machined precisely to SAAMI .243 Winchester chamber tolerances.

Less suitable for: Handloaders reloading alternative 6mm cartridges such as 6mm Creedmoor, 6mm GT, or 6mm Remington; these require dedicated cartridge-specific seating dies engineered for their distinct case geometries.
