Will the Redding 243 Win Seating Die fit my existing reloading press?

Yes, this die features the industry-standard 7/8"-14 thread interface, making it fully compatible with virtually all single-stage and progressive presses used in Australia, including models from Redding, RCBS, Hornady, Lyman, Dillon, and Lee. As a purely mechanical reloading tool, it requires no electrical power or Australian regulatory certifications.

Can I use this standard seating die for .243 Win Ackley Improved wildcat brass?

No, the Redding 92114R is strictly engineered for standard .243 Winchester chambers and 0.243-inch bullets. Attempting to use it on Ackley Improved brass without altering headspace and crimp dynamics can result in improper seating and deformed cases, so dedicated wildcat dies should be used instead.

Does this die allow for micro-adjustments down to 0.001 inches out of the box?

The standard Redding 92114R model features a traditional adjustable seating stem rather than the native 0.001-inch increments found on the Redding Competition Seating Die (Part #55114). However, if you require finer adjustments later on, you can easily upgrade this standard die by purchasing and installing a Redding Standard Bullet Seating Micrometer.

How should I maintain and store this steel reloading die in humid Australian environments?

The die is machined from high-grade alloy steel with hand-polished internal surfaces to prevent marring during bullet seating. To protect against corrosion during humid storage or in outback sheds, apply a light coat of anti-corrosion gun oil to all metal surfaces after use and store it in a dry environment.

243 Win Seating Die - Redding 92114R

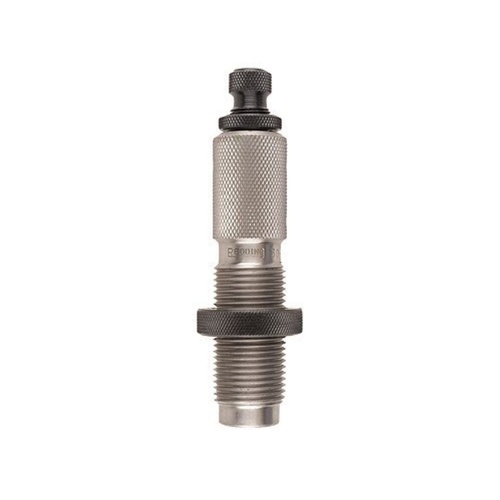

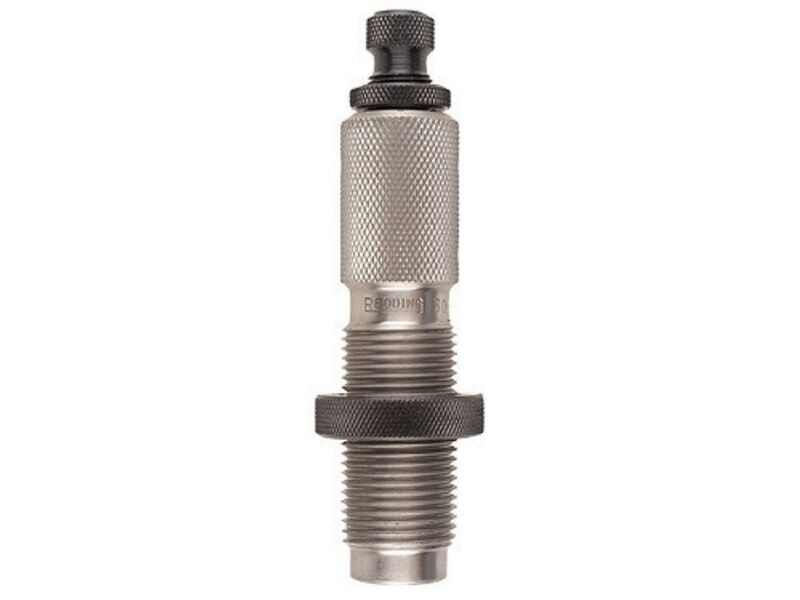

The Redding .243 Winchester Standard Seating Die (Manufacturer Part Number: 92114 / 92114R) is a mechanical reloading die engineered to seat 0.243-inch (6mm) diameter projectiles to precise Overall Length (OAL) specifications. Machined from heat-treated alloy steel with hand-polished internal surfaces, this die ensures concentric seating and protects brass cases and bullets from marring during the handloading process. It features industry-standard 7/8"-14 threading to integrate directly into standard reloading presses and includes a knurled steel lock ring with a brass hex-head locking screw to maintain critical depth adjustments.

Key Features

Precision Machined Construction: Manufactured from alloy steel and heat-treated in precision furnaces to maintain tight concentricity tolerances and high wear resistance.
Hand-Polished Internals: Polished interior cavities prevent bullet deformation and brass galling during seating operations.
Integrated Roll Crimp: Allows simultaneous bullet seating and roll crimping, or standard seating only by adjusting the die body position in the press.
Knurled Steel Lock Ring: Equipped with a brass hex screw that locks depth settings in place without damaging the 7/8"-14 die threads.
Standard Component Compatibility: Uses Redding Seat Plug part #01067 and interfaces with #1 Standard or #1 Competition Shellholders.

Specifications

Product Name: Redding .243 Winchester Standard Seating Die
Manufacturer Part Number: 92114 (92114R)
Calibre: .243 Winchester
Bullet Diameter: 0.243 in (6mm)
Thread Interface: 7/8"-14
Seat Plug Part Number: #01067
Compatible Shellholders: #1 Standard Shellholder (#11001), #1 Competition Shellholder (#11601)
Length: Approximately 100 mm to 120 mm
Shipping Weight: Approximately 250 g to 350 g

Who is the Redding 243 Win Seating Die for?

Hunters and pest controllers — requires a standard 7/8"-14 thread die to produce consistently seated .243 Winchester (0.243 in / 6mm) ammunition for field management of feral pigs, goats, and wild dogs.
Target shooters — needs precise bullet alignment on standard reloading presses utilizing 7/8"-14 threading to seat 0.243 in projectiles to reliable overall lengths for routine range practice.

Less suitable for: Handloaders firing the .243 Win Ackley Improved wildcat cartridge due to differing headspace geometry, or precision competition shooters requiring direct 0.001" micrometer adjustments, who should instead use a dedicated chamber-specific die or a dedicated competition seating die with a floating sleeve.

SKU	RD41964LP
Model #	92114R
Brand	Redding
Shipping Weight	1.0000kg
