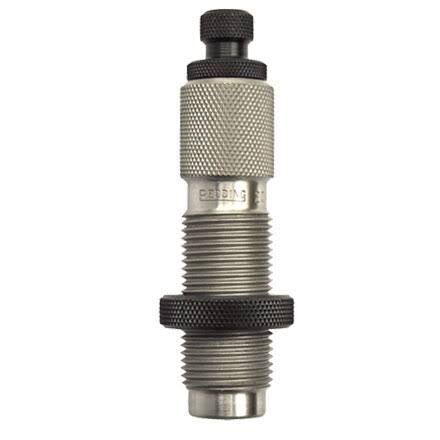

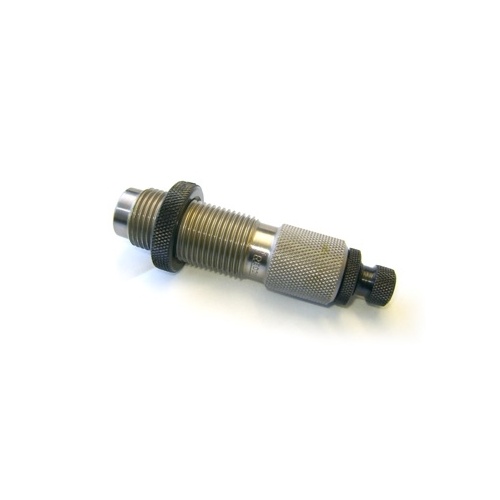

The Redding 92146 Standard Seating Die is a dedicated mechanical reloading tool designed to seat 0.308-inch diameter bullets into pre-sized .30-30 Winchester (.30 WCF) cartridge cases. Machined from alloy steel on precision lathes, heat-treated in atmospherically controlled furnaces, hand-polished, and ultrasonically cleaned, this die ensures uniform projectile alignment and depth. It incorporates an internal roll crimp feature, allowing handloaders to either seat and crimp simultaneously or seat without crimping by adjusting the die body relative to the press shellholder. Built with industry-standard 7/8"-14 threads, it is directly compatible with standard single-stage and progressive reloading presses.

Key Features

• Precise Projectile Seating: Accurately seats 0.308-inch diameter flat-nose, round-nose, and spitzer bullets into .30-30 Winchester brass using the included #01080 standard seating plug.
• Integrated Roll Crimp: Features a built-in roll crimping ring to secure bullets against recoil movement in tubular magazines, adjustable to seat and crimp concurrently or perform seating only.
• Alloy Steel Construction: Precision-machined, heat-treated, hand-polished, and ultrasonically cleaned for tight internal tolerances and smooth operation.
• Universal Press Fit: Uses an industry-standard 7/8"-14 thread interface to mount into standard reloading presses.
• Shellholder Compatibility: Engineered to pair with standard Redding #2 shellholders (Part #11002, sold separately) during the reloading cycle.

Specifications

• Manufacturer Part Number (MPN): 92146
• Thread Interface: 7/8"-14 thread
• Calibre Compatibility: .30-30 Winchester (.30 WCF)
• Bullet Diameter: 0.308-inch
• Included Seating Plug: Standard seating plug (Part #01080)
• Required Shellholder: Redding Shellholder #2 (sold separately)
• Material: Heat-treated, hand-polished alloy steel
• Power Requirements: None (manual mechanical operation)

Who is the Redding 92146 Standard Seating Die For 30-30 Winchester Reloading for?

• Lever-Action Rifle Handloaders — requires seating 0.308-inch diameter bullets into .30-30 Winchester cases on a standard 7/8"-14 thread reloading press while applying an integrated roll crimp to prevent projectile setback inside tubular magazines under recoil.
• Hunting Ammunition Handloaders — needs a dedicated .30-30 Winchester seating die capable of delivering uniform seating depths across standard flat-nose and round-nose 0.308-inch hunting projectile profiles.

Less suitable for: Handloaders loading other .30-calibre cartridges such as .308 Winchester or .30-06 Springfield, or those seating very low drag (VLD) profile projectiles, who require a dedicated cartridge-specific seating die or an upgraded competition seating die with an optional VLD seating plug.
