Which specific dies are compatible with the Redding Type S Decapping Rod Model 10714?

This decapping rod is engineered exclusively for Redding Type S Bushing Full Length Resizing Dies and Type S Neck Bushing Sizing Dies designed for small-calibre cartridges. It is completely incompatible with standard non-bushing Redding dies, Redding competition seating dies, or dies manufactured by brands like Lee, RCBS, and Hornady.

Can I use this decapping rod with .17 Mach 4, .20 BR, or .22 Hornet brass?

No, Model 10714 is strictly sized for .17 Remington, .204 Ruger, and .20 Tactical cases. For .17 Mach 4 or .20 BR cases you will need model 10715, while .22 Hornet or 6.5 Grendel cases require model 10710 instead.

Does this purchase include the decapping pin, lock nut, and expander ball?

No, this product is supplied as the bare decapping rod only. The lock nut, decapping pin, expander ball or size button, and pin retainer must be purchased separately or transferred from your existing Redding Type S assembly.

Are there any Australian electrical or regulatory compliance requirements for this tool?

As a purely mechanical reloading component made of precision-machined steel, this product requires no electrical input. Therefore, regulations regarding 240V compatibility, Australian mains plugs, and SAA or RCM certifications are not applicable for import and use in Australia.

Decapping Rod - Redding 10714

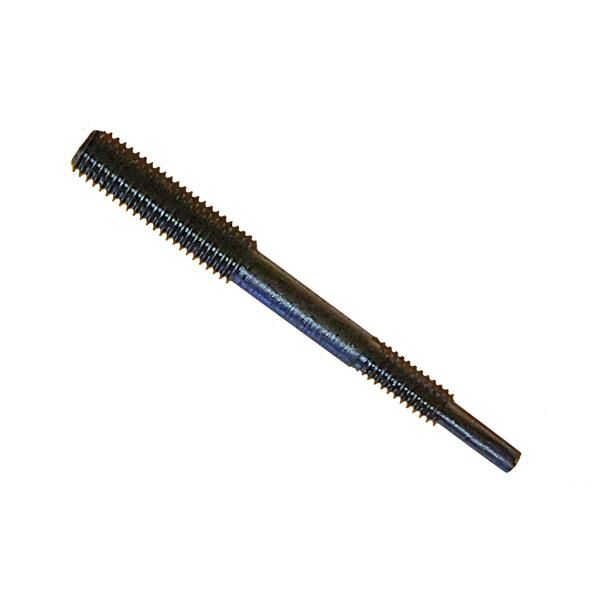

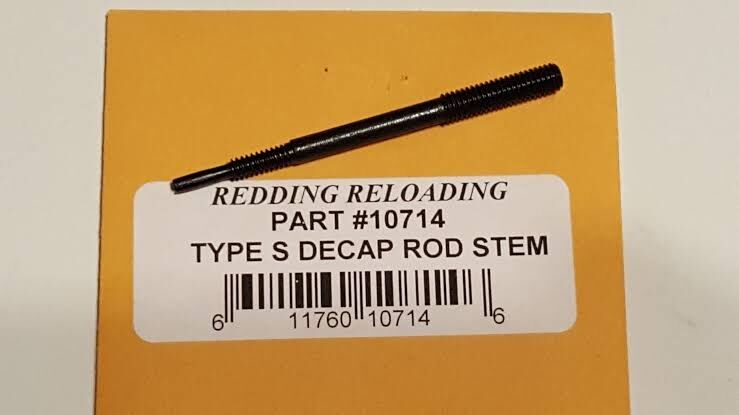

The Redding Type S Decapping Rod – .17 Rem, .204 (Part No. 10714) is a precision-machined steel replacement spindle engineered specifically for small-calibre Redding Type S Bushing Full Length Resizing Dies and Type S Neck Bushing Sizing Dies. Manufactured in the USA, this component replaces bent, worn, or broken rods to restore proper decapping function. Its reduced shaft diameter allows smooth entry into narrow .17-calibre and .20-calibre case necks without fouling internal neck walls or interfering with the die's free-floating sizing bushing.

Key Features

Direct Replacement Component: Replaces damaged factory decapping spindles inside Redding Type S bushing dies to maintain concentric depriming.
Small-Calibre Profile: Machined with a narrow shank designed specifically to clear the compact internal neck dimensions of .17 and .20 calibre cases.
Adjustable Depth Setup: Allows precise vertical adjustment within the die body to position the decapping pin accurately relative to the flash hole.
Bushing Die Centring: Aligns decapping components without binding or contacting the self-centring, free-floating neck sizing bushing.

Product Specifications

Manufacturer: Redding Reloading Equipment
Model / Part Number: 10714 (10-714)
Material: Precision-machined steel
Die Compatibility: Redding Type S Bushing Full Length Dies and Type S Neck Bushing Sizing Dies
Calibre Compatibility: .17 Remington, .204 Ruger, and .20 Tactical
Included Components: Bare decapping rod only (lock nut, decapping pin, expander ball, and retainer sold separately or transferred from existing die assembly)
Weight: Under 50 g shipping weight

Who is the Redding Type S Decapping Rod - 17 Rem, 204 for?

Handloaders reloading .204 Ruger precision rifle ammunition — requires a dedicated small-diameter decapping rod that enters .204 Ruger case necks without internal friction while maintaining alignment with Redding Type S bushing dies.
Handloaders reloading .17 Remington precision rifle ammunition — provides the precise clearance needed inside narrow .17 Remington case necks to deprime cases reliably without fouling the neck walls during resizing.

Less suitable for: Handloaders using standard non-bushing dies or dies from other manufacturers, as well as those loading .17 Mach 4 or .20 BR cartridges (which require a model 10715 decapping rod) or .22 Hornet and 6.5 Grendel cases (which require a model 10710 decapping rod).

SKU	RD41442LP
Model #	10714
Brand	Redding
Shipping Weight	1.0000kg
