Does the Redding 71241 Type S Neck Die come with sizing bushings included in the box?

No, sizing bushings are sold separately and are required to operate this die. You will need to calculate your precise neck diameter using your loaded round neck outside diameter minus 0.001" to 0.002" to select the correct steel or titanium-nitride bushing, such as the Redding 73333 Bushing if appropriate for your loaded brass.

Can I use this neck sizing die if my 7mm BR Remington brass is going to be fired across multiple different rifles?

No, neck sizing only is designed specifically for fire-formed brass shot from a single, specific bolt-action or single-shot rifle or pistol. If you are sharing brass across multiple rifles or using semi-automatic actions, you will need a Full-Length (FL) Die like the Redding #77241 or a Body Die like the Redding #75241 to ensure proper chambering.

What press threading interface and shellholders are compatible with the Redding 7mm BR Remington Type S Die?

This die features an industry-standard 7/8"-14 TPI threading interface, making it fully compatible with standard single-stage and turret reloading presses. For shellholder compatibility, it requires a Redding Standard Shellholder #1 (Part #11001) or a Competition Shellholder #1 (Part #11601), which must be purchased separately.

Does this mechanical reloading tool require any electrical certifications or SAA/RCM approval for use in Australia?

As a purely mechanical, manually operated reloading tool, the Redding 71241 requires no power supply, has no 240V components, and does not require SAA, RCM, or any electrical compliance certification for use in Australian workshops.

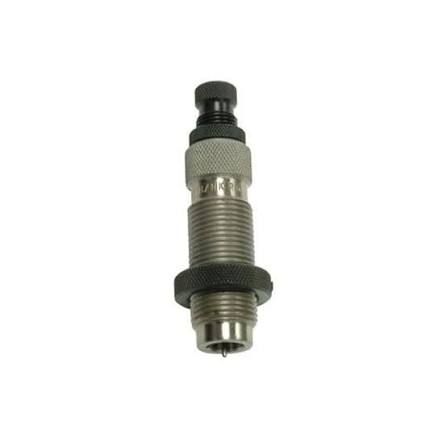

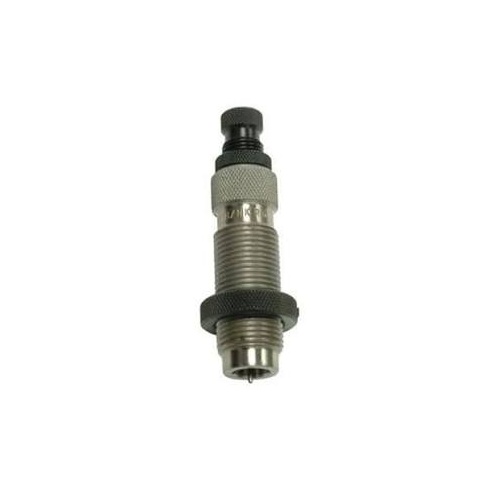

7mm BR Neck Die - Redding 71241

The Redding Type S – Bushing Style Neck Sizing Die (MPN: 71241) is a precision reloading tool engineered to size the case neck of 7mm Bench Rest Remington (7mm BR Rem) cartridges without altering the fire-formed body dimensions. Machined from heat-treated alloy steel, this die utilises freely floating, self-centring bushings to control external neck tension in precise increments. Sizing only the neck preserves the cartridge's custom fit to a specific chamber, extending case life and maintaining minimal bullet runout for match-grade consistency.

Key Features

Interchangeable Bushing System: Accepts self-centring steel or titanium-nitride (TiN) bushings (available in 0.001-inch increments) to set exact neck tension without overworking cartridge brass.
Adjustable Decapping Assembly: Permits full-length or partial neck resizing, allowing reloaders to leave the shoulder-neck junction undisturbed if desired.
Dual Operation Modes: Includes a standard expander button for commercial un-turned brass, as well as a decapping pin retainer to eliminate internal sizing entirely when preparing neck-turned match cases.
Heat-Treated Steel Construction: Machined to tight tolerances from durable alloy steel for reliable mechanical repeatability on the reloading bench.

Product Specifications

Calibre: 7mm Bench Rest Remington (7mm BR Rem)
Compatible Bullet Diameter: .284 in (7.21 mm)
Die Threading: Standard 7/8"-14 TPI
Compatible Shellholders: Redding Standard Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601)
Die Type: Type S Bushing Neck Sizing Die
Dimensions: Approximately 12 × 5 × 4 cm (packaged)
Weight: Approximately 250–320 g

Who is the Redding 7mm BR Remington Type S Neck Die for?

Precision handloaders shooting 7mm BR bolt-action or single-shot firearms — requires precise calibration of neck tension for .284 in (7.21 mm) bullet diameters via interchangeable bushings while maintaining the fire-formed headspace of a dedicated chamber using standard 7/8"-14 TPI presses.
Benchrest and metallic silhouette target shooters — reduces brass fatigue and minimises cartridge runout by resizing only the neck of .284 in (7.21 mm) diameter 7mm BR cases, prolonging the usable life of match-prepared brass.

Less suitable for: Cartridges used across multiple firearms, brass fed through semi-automatic actions, or cases that have expanded to cause heavy bolt lift and tight extraction; these boundary conditions require a dedicated full-length sizing die or a separate body die to bump the shoulder back 0.001" to 0.002" and restore factory body clearances.

SKU	RD41732LP
Model #	71241
Brand	Redding
Shipping Weight	1.0000kg
