What rings or mounts do I need to attach the Sabre X4 1-4x24 to my rifle?

The Sabre X4 features a 30 mm main tube diameter, so it requires standard 30 mm scope rings or cantilever mounts for proper installation. For optimal mounting compatibility, we recommend pairing it with the Sabre Cantilever Mount from our range to ensure secure placement on your firearm.

How does the fixed parallax perform for close-quarters and bush hunting?

The Sabre SAD1424 comes with a fixed parallax setting at 91 metres (100 yards), which is optimized for quick point-blank to mid-range engagement. Combined with its true 1x magnification, this setup provides a wide field of view ranging from 40 m down to 10 m at 100 metres, making it exceptionally well-suited for fast target acquisition in heavy timber and dense Australian bush.

Is the illuminated reticle suitable for low-light dawn and dusk hunting conditions?

Yes, the scope is equipped with an illuminated #4 Dot reticle paired with multi-layer lens coatings to enhance light transmission. This ensures high visibility and clarity during early morning or late evening hunts when game is most active in low-light environments.

What is the effective working range for the Sabre X4 1-4x24?

This optic is specifically optimized for targets from point-blank out to approximately 200 to 300 metres. Because it features a maximum magnification of 4x and a fixed 91-metre parallax, targets situated beyond 300 metres or specialized small-varmint hunting are better suited to higher-magnification riflescopes.

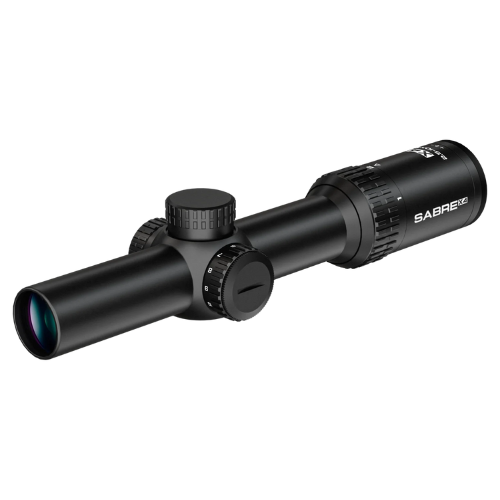

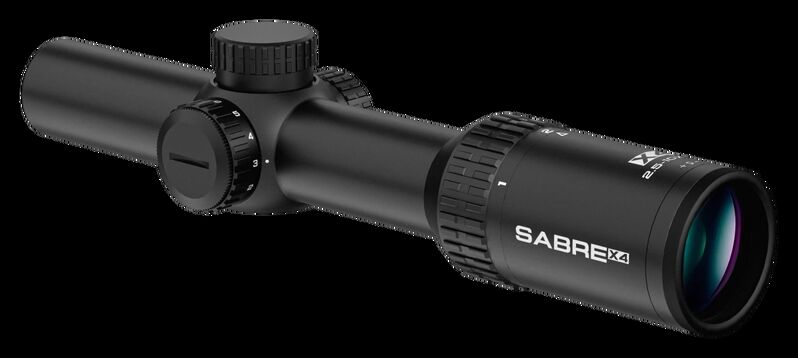

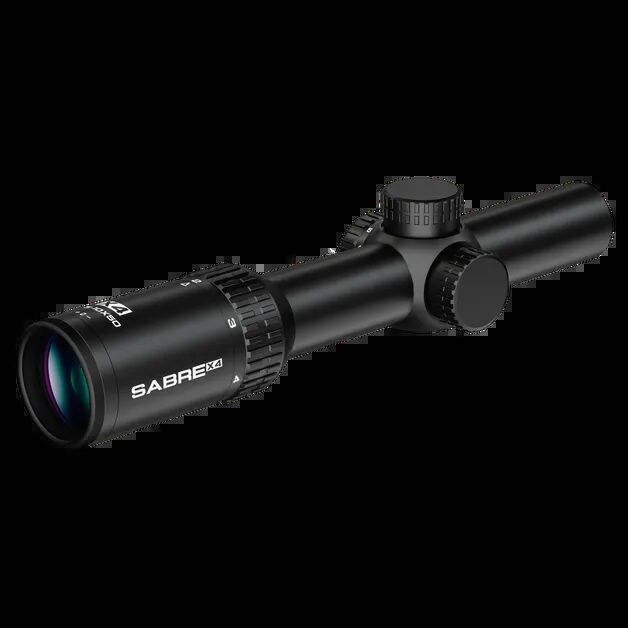

1-4x24 LPVO Riflescope - Sabre SAD1424

The Sabre X4 Riflescope 1-4x24 is a low-power variable optic (LPVO) engineered for fast target acquisition at close quarters and precision out to mid-range distances. Built around a 30 mm one-piece main tube and a 24 mm objective lens, it delivers a true 1x magnification for both-eyes-open tracking, transitioning up to 4x for placed shots. Equipped with a second focal plane illuminated #4 Dot reticle and multi-layer lens coatings, this optic provides clear sight pictures and high light transmission in low-light conditions during dawn and dusk.

Key Features

1-4x Zoom Ratio: Allows rapid switching between wide-area scanning at 1x and focused aiming at 4x magnification.

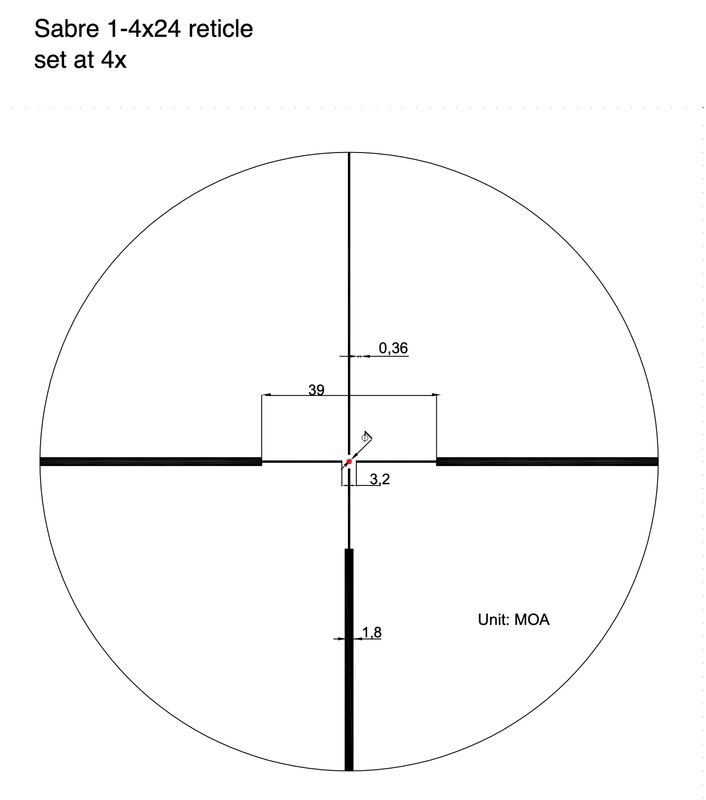

Illuminated #4 Dot Reticle: Second focal plane reticle with fine-tuned dot illumination powered by a standard coin-cell battery for high-contrast aiming against dark brush and low-light backgrounds.
Wide Field of View: Offers an optical field of view ranging from 40 m down to 10 m at 100 m (121 ft to 30.2 ft at 100 yds) for continuous situational awareness.
Low-Capped Turrets: Provides 1/2 MOA (15 mm at 100 m) click adjustments protected against accidental displacement in heavy scrub.
Substantial Adjustment Travel: Features 100 MOA of total elevation and windage travel for flexible zeroing across various calibres.

Specifications

Magnification: 1–4x
Objective Lens Diameter: 24 mm
Main Tube Diameter: 30 mm
Focal Plane: Second Focal Plane (SFP)
Reticle: Illuminated #4 Dot
Click Value: 15 mm @ 100 m (1/2 MOA)
Adjustment Range: 100 MOA elevation / 100 MOA windage
Field of View: 40 m – 10 m @ 100 m
Eye Relief: 85 mm
Parallax: Fixed at 91 m (100 yds)
Overall Length: 257 mm
Weight: 520 g
Mounting Interface: Standard 30 mm scope rings or cantilever mounts

Who is the Sabre X4 Riflescope 1-4x24 for?

Driven hunt and heavy-timber stalkers targeting pigs and deer — benefits from this low-power variable riflescope offering an expansive 40 m field of view at 100 m on 1x magnification paired with a compact 520 g weight, allowing fast target tracking in dense scrub without unbalancing lightweight rifles.
Close-to-medium range running game shooters — utilizes the 1-4x zoom ratio and 100 MOA internal adjustment range on this LPVO to quickly engage moving targets from point-blank out to 200–300 metres while maintaining an 85 mm eye relief.

Less suitable for: Target engagements beyond 300 metres or precision small-varmint hunting, where higher-magnification optics (such as 3-9x, 2.5-10x, or 3-12x) with adjustable parallax are required.

SKU	SAR40718LP
Model #	SAD1424
Brand	Sabre
Shipping Weight	1.0000kg
