What rifle calibres is the BDC R8 reticle on the Sabre X8 1-8x24 calibrated for?

The BDC R8 reticle is specifically pre-calibrated around the standard ballistic trajectories of .223 Remington and .308 Winchester loads. This makes it exceptionally well-suited for popular Australian sporting and pest control calibres used in outback environments out to 800 yards.

Does the Sabre X8 1-8x24 have a side parallax adjustment dial?

No, this specific 1-8x24 model features a fixed parallax design and excludes the side focus dial found on larger Sabre X8 models. This streamlined profile helps keep the optic compact and fast-handling for dynamic shooting scenarios.

What scope mount size do I need to attach this optic to my rifle?

The Sabre X8 1-8x24 features a standard 30 mm main tube diameter. To mount it securely on a flat-top tactical or sporting rifle, it pairs exceptionally well with the Sabre SABCM30W Sabre Cantilever Mount.

How does the Sabre X8 1-8x24 perform in low-light conditions like dawn or dusk?

While the fully multi-coated glass and illuminated central horseshoe provide good target acquisition in daytime and twilight, the 24 mm objective lens creates limitations. For serious low-light dusk and dawn stalking where larger light gathering is required, a dedicated larger-objective optic like the Sabre X4 2.5-10x50 is better suited.

LPVO Riflescope - Sabre SAO1824R223

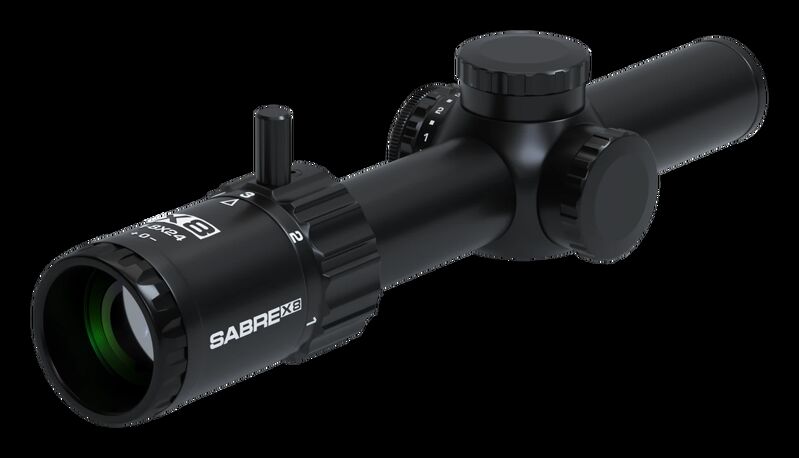

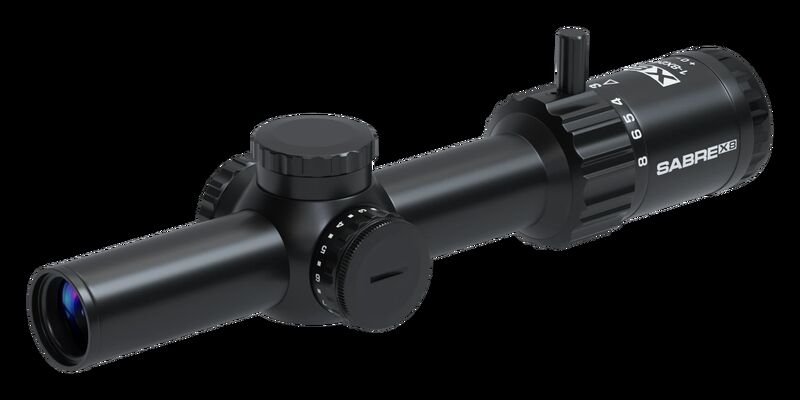

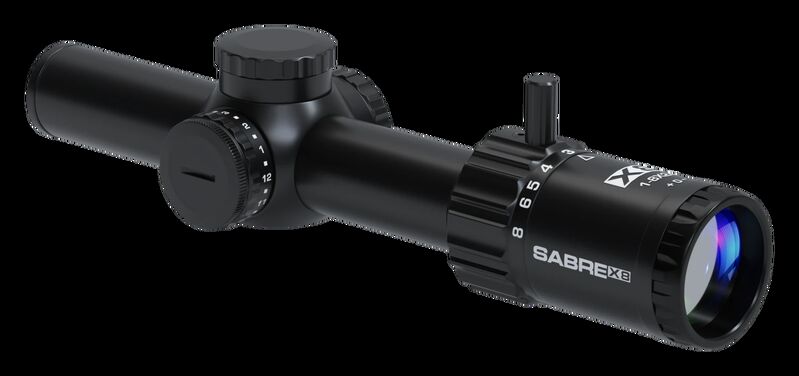

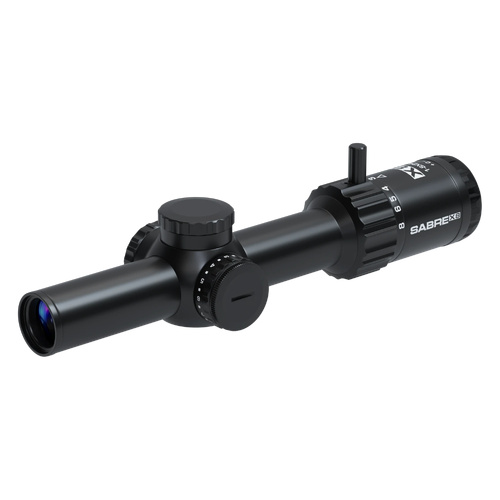

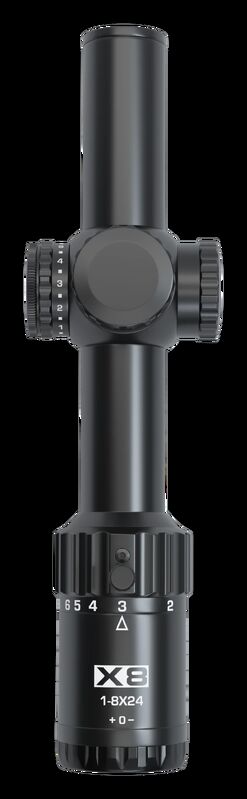

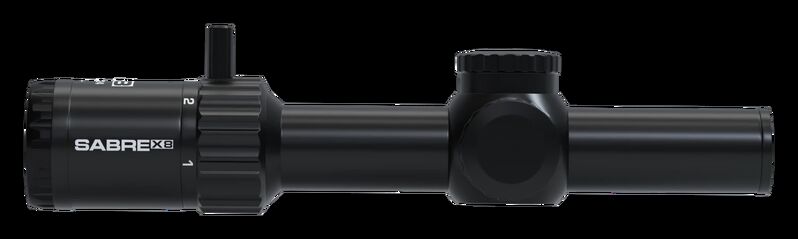

The Sabre X8 1-8x24 Riflescope (model SAO1824R223) is a Low Power Variable Optic (LPVO) designed for rapid close-quarters engagement and extended mid-range shooting. Built on a 30 mm main tube with an 8x zoom ratio, it provides true 1x magnification for both-eyes-open snap shooting up to 8x magnification for distant targets. The optic features fully multi-coated glass, a Second Focal Plane (SFP) illuminated R8 reticle calibrated for standard .223 Remington and .308 Winchester trajectories, an integrated zoom throw lever, and low-profile capped turrets.

Key Features

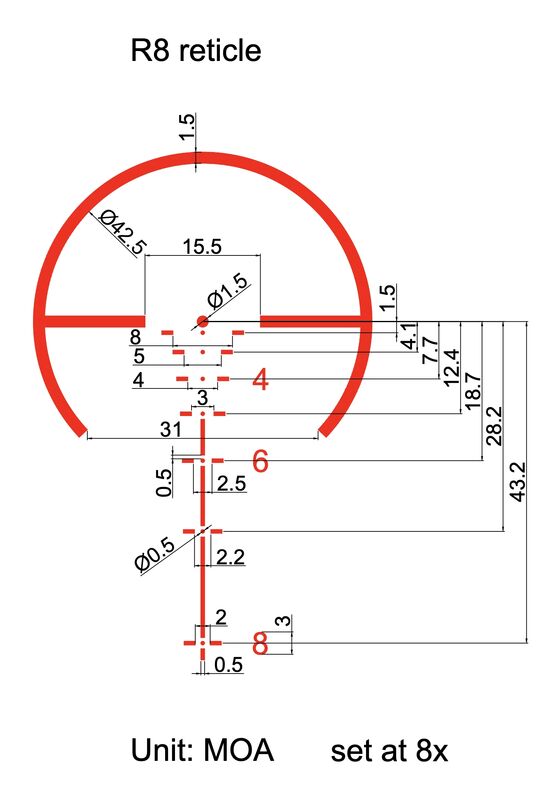

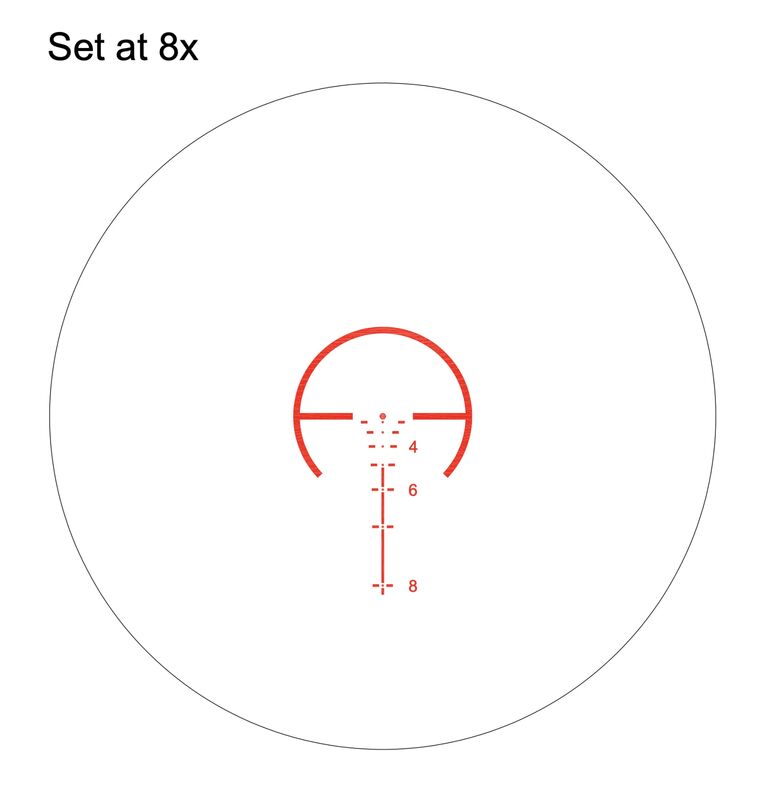

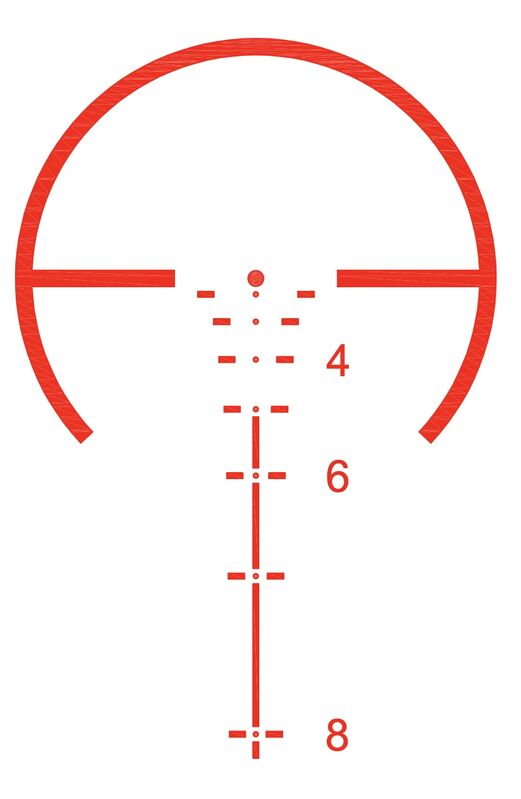

Illuminated R8 BDC Reticle: Incorporates an illuminated central horseshoe and dot design with integrated ballistic drop holdover markings calibrated out to 800 yards (~730 metres).
True 1x to 8x Magnification: Delivers an 8x zoom ratio, allowing immediate transitions from close-range tactical scenarios to mid-range target identification.
Integrated Throw Lever: Features aggressive dial knurling and a built-in lever for fast magnification adjustments in dynamic shooting environments.
30 mm Main Tube: Machined with a 30 mm tube diameter to ensure compatibility with standard 30 mm rings and cantilever mounting systems.
Protective Accessories: Supplied with silent flip-up lens covers to protect the 24 mm objective and ocular lenses from debris.

Product Specifications

Magnification Range: 1x to 8x
Objective Lens Diameter: 24 mm
Main Tube Diameter: 30 mm
Focal Plane: Second Focal Plane (SFP)
Reticle Type: Illuminated R8 BDC (horseshoe with centre dot, MOA-based)
Trajectory Calibration: .223 Remington (5.56 NATO) and .308 Winchester (7.62 NATO) holdovers to 800 yards (~730 metres)
Turrets: Low capped turrets
Parallax: Fixed
Illumination Source: Low-voltage coin-cell battery

Who is the Sabre X8 1-8x24 BDC R8 Reticle for?

Practical competition shooters — requires a true 1x setting for rapid close-quarters acquisition combined with an 8x top magnification to instantly transition between targets across 3-Gun courses.
Running game and driven hunters — benefits from the 24 mm objective lens and illuminated horseshoe-and-dot reticle designed for rapid snap shooting on fast-moving targets.
Feral pest controllers — utilizes the Low Power Variable Optic reticle holdovers calibrated out to 800 yards (~730 metres) for managing pigs, goats, and foxes using standard .223 Rem or .308 Win rifles.

Less suitable for: Long-range precision target shooting beyond 800 yards, where high-magnification First Focal Plane optics with adjustable side parallax are better suited, or low-light dusk and dawn hunting where optics with 50 mm or 56 mm objective lenses provide superior light gathering.

SKU	SAR40726LP
Model #	SAO1824R223
Brand	Sabre
Shipping Weight	1.0000kg
