What optical design gives the Sightron SV 10x42 ED SWA binoculars their wide field of view?

These binoculars feature a Super Wide-Angle (SWA) and integrated field-flattener optical system that delivers a massive 408 ft field of view at 1,000 yards (a 7.8 degree real FOV). Combined with Extra-Low Dispersion (ED) glass and phase-corrected H-BAK7GT prism coatings, this setup virtually eliminates chromatic aberration while providing sharp edge-to-edge optical resolution.

How does the 907 g weight impact extended glassing sessions in the Australian outback?

At 907 grams, the SV Series 10x42 is slightly heavier than standard 42 mm roof-prism binoculars due to its advanced SWA ocular and flattener lenses. While the die-cast magnesium alloy chassis provides rugged durability and a solid feel in the hand, extended glassing sessions from outback ridges will benefit greatly from using a compatible chest bino harness or a tripod mounting adapter to eliminate fatigue and hand-shake.

Do these binoculars require any Australian electrical or regulatory compliance certifications such as SAA or RCM?

No, the Sightron SV Series 10x42 ED SWA binoculars are entirely passive mechanical optical devices containing no electronic components, batteries, internal lasers, or active circuitry. Therefore, they do not require any Australian wall plugs, 240V mains compatibility, SAA approval, or RCM compliance markings.

10x42 Binoculars - Sightron SI-27014

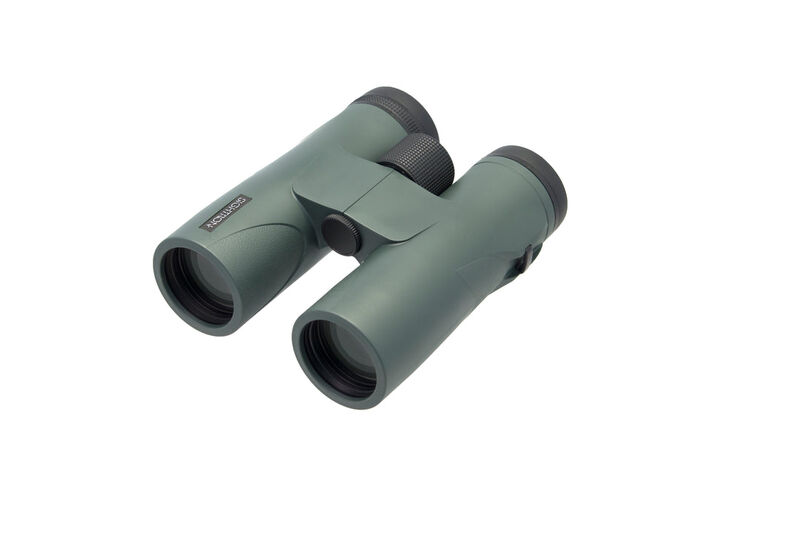

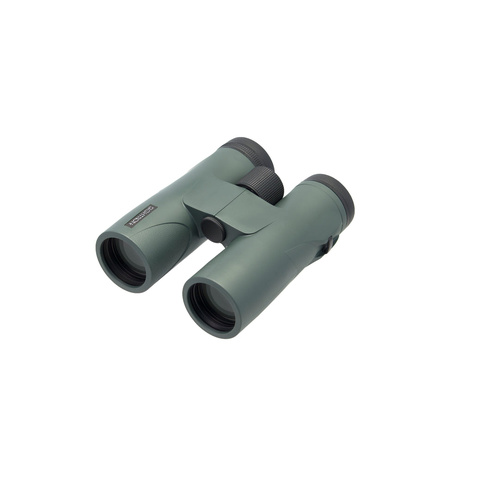

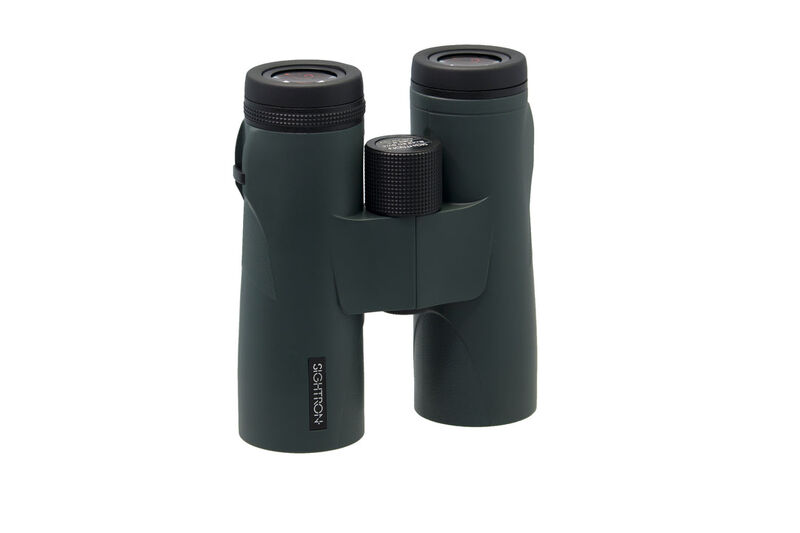

The Sightron SV Series 10x42 ED SWA Binoculars (model 27014) are roof-prism observation optics engineered for mid- to long-range scanning. Combining 10x magnification with 42 mm objective lenses, the optical system incorporates Extra-Low Dispersion (ED) glass, phase-corrected H-BAK7GT Schmidt-Pechan prisms, and an integrated field-flattener system that delivers an expansive 408 ft field of view at 1,000 yards (7.8° real field of view, exceeding a 70° apparent field of view). Built into a die-cast magnesium alloy chassis with protective rubber armour, this optic provides edge-to-edge optical clarity while remaining completely waterproof and nitrogen-purged for field reliability in wet conditions.

Key Features

Super Wide-Angle Optical System: Delivers a wide 408 ft at 1,000 yards field of view with an integrated field-flattener design to resolve edge-to-edge distortion across the entire sight picture.
ED Glass Elements: Extra-Low Dispersion glass paired with fully multi-coated surfaces minimises chromatic aberration and achieves approximately 90% total light transmission.
Durable Magnesium Housing: Die-cast magnesium alloy chassis provides structural rigidity, protected by an elastomer rubber armour and an oversized knurled metal centre focus wheel for gloved operation.
All-Weather Sealing: Fully waterproof and charged with dry nitrogen gas to prevent internal lens fogging during rapid temperature transitions.
Ergonomic Viewing: Offers 18 mm of eye relief via twist-up rubber eyecups, a 4.2 mm exit pupil, and an adjustable interpupillary distance ranging from 56 mm to 76 mm.

Specifications

Magnification: 10x
Objective Lens Diameter: 42 mm
Field of View: 408 ft at 1,000 yards (7.8° real FOV / >70° apparent FOV)
Close Focus Distance: 2.0 metres (6.56 ft)
Eye Relief: 18 mm
Exit Pupil: 4.2 mm
Prism Type: Schmidt-Pechan roof prism (Phase-corrected H-BAK7GT glass)
Diopter Adjustment: ±4 dpt
Interpupillary Distance: 56 mm to 76 mm
Dimensions: 162.6 mm L x 121.9 mm W x 66 mm H
Weight: 907 g (32 oz)

Who is the Sightron SV Series 10x42 ED SWA Binoculars for?

Open-country spot-and-stalk hunters — requires the 408 ft at 1,000 yards field of view delivered by this roof-prism hunting binocular to scan expansive hillsides and track moving game across broad horizons without constant head panning.
Long-range target spotters — relies on the 10x magnification and phase-corrected ED glass of this roof-prism binocular to resolve distant shot placements and target details at extended ranges from 2.0 metres out to infinity.
Ornithologists scanning wide terrain — benefits from the 2.0 metres close focus limit paired with the wide-angle 7.8° real field of view to rapidly locate and track erratic bird movements across varied foliage and open airspace.

Less suitable for: Close-range inspection under 2.0 metres where targets cannot be resolved into focus, or handheld users sensitive to a 907 g carrying weight over extended glassing sessions, who are better served by a lightweight 8x32 binocular or by supporting this optic with a tripod mounting adapter and chest harness.

SKU	SIT42344LP
Model #	SI-27014
Brand	Sightron
Shipping Weight	1.0000kg
