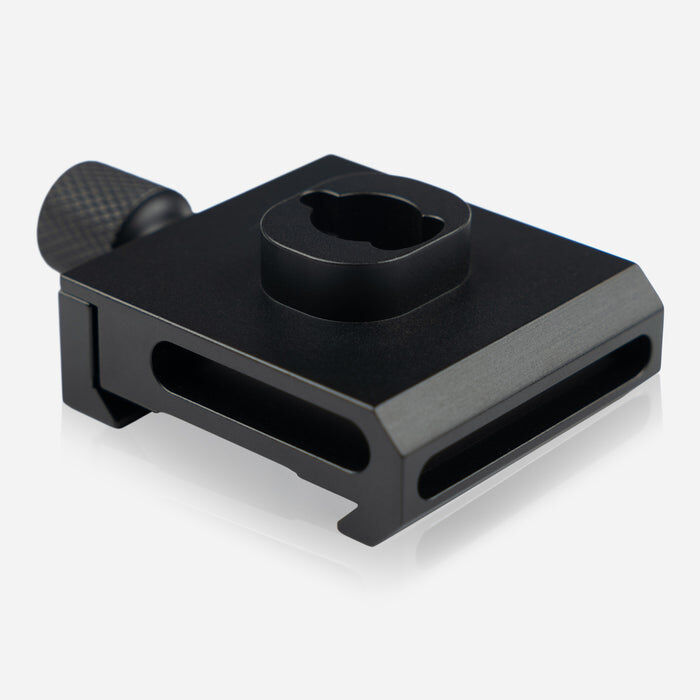

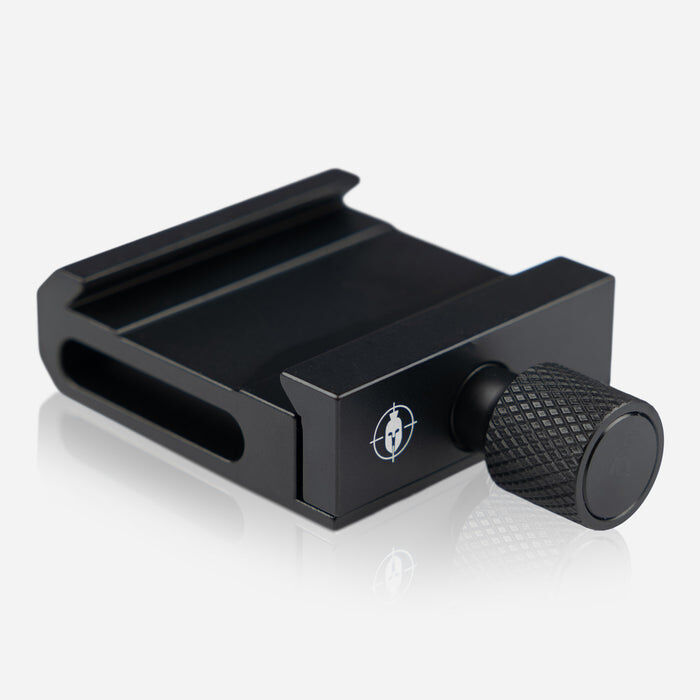

The Spartan Classic Arca Adaptor (SPAR02025R) allows precision rifles fitted with Arca-Swiss accessory rails to interface seamlessly with the Spartan MagnaSwitch™ magnetic quick-detach support ecosystem. CNC-machined from aerospace-grade 7075-T7351 aluminium billet with a hard-anodised black finish, this non-powered mechanical mounting block clamps directly onto standard Arca rails without permanent rifle modifications or gunsmithing. It features a standard Spartan 12 mm Classic magnetic spigot socket, enabling rapid bipod and tripod attachment while retaining locked target mode and traversable panning modes for tracking moving targets.

Key Features

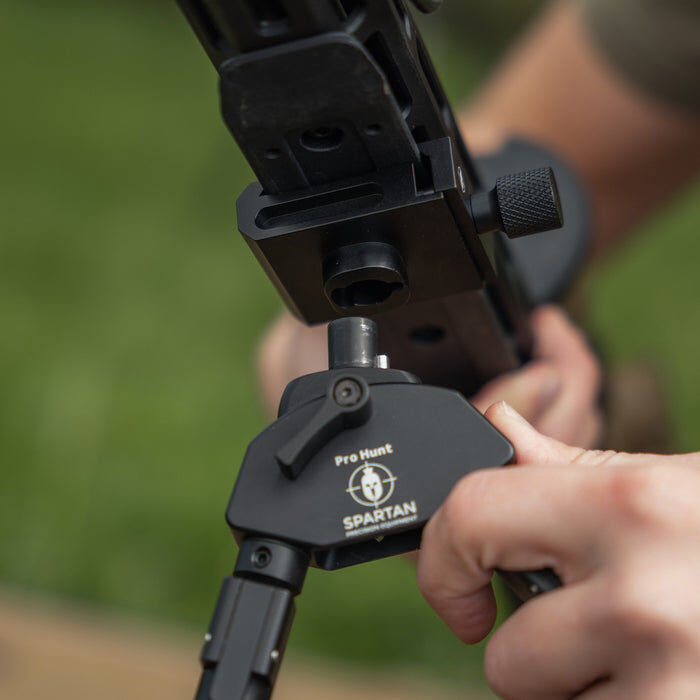

• Magnetic MagnaSwitch™ Interface: Houses a standard Spartan 12 mm Classic socket, allowing instant attachment and detachment of Spartan Javelin bipods, SpringBok systems, Ascent, Sentinel, and Hoplite tripods, as well as Davros heads.

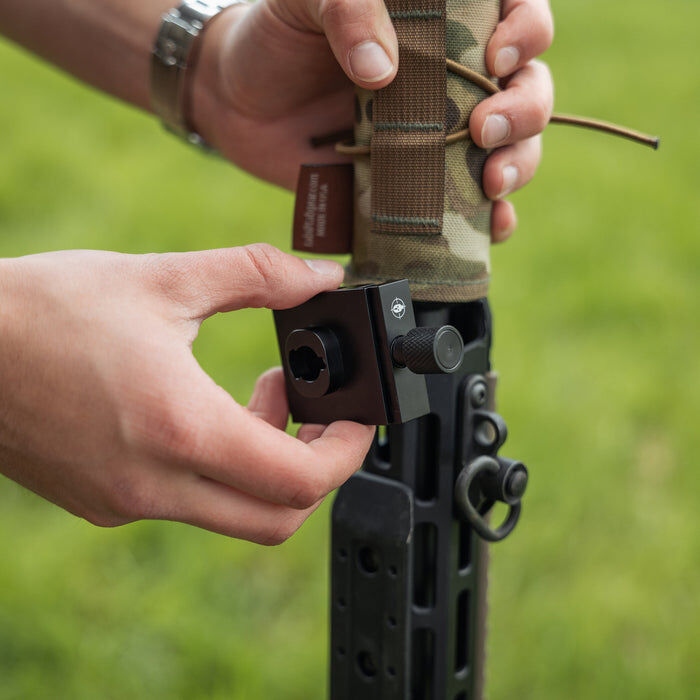

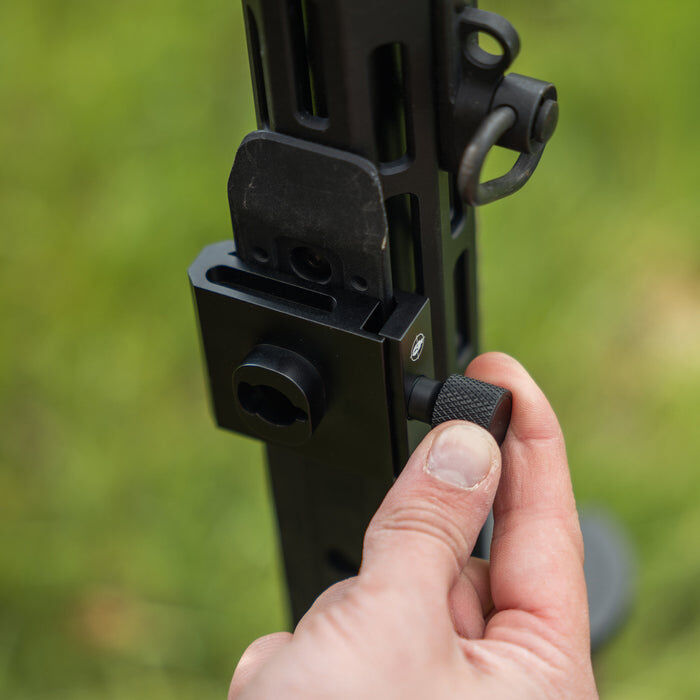

• Direct Arca-Swiss Clamping: Secures firmly along the rifle forend with an adjustable clamp mechanism, requiring no permanent alterations to the stock.
• Dual Shooting Capabilities: Supports both fixed target locking and horizontal traversing to track moving game in the field.
• Billet Aluminium Construction: Machined from high-strength 7075-T7351 aluminium to endure the recoil impulse of standard and magnum hunting calibres.
• Low-Profile Footprint: Provides a rigid mounting point without adding excessive static bulk to the underside of the rifle forend.

Product Specifications

• Product Model: Spartan Classic Arca Adaptor (SPAR02025R)
• Weight: Approximately 82.2 g (2.9 oz)
• External Dimensions: 45 mm (L) × 67 mm (W) × 24 mm (H)
• Rail Clamp Compatibility: 38 mm (1.5") to 40.6 mm (1.6") Arca-Swiss / Arca-style dovetail rails
• Mounting Socket: Spartan 12 mm Classic magnetic spigot
• Material: CNC-machined 7075-T7351 aluminium billet with hard-anodised black finish
• System Compatibility: Spartan Javelin (Lite, Pro Hunt, Pro Hunt Tac), SpringBok Bipod/Quad Systems, Ascent/Sentinel/Hoplite Tripods, Davros Heads
• Power Requirements: Passive mechanical accessory (0V, battery-free)

Who is the Spartan Classic Arca Adaptor for?

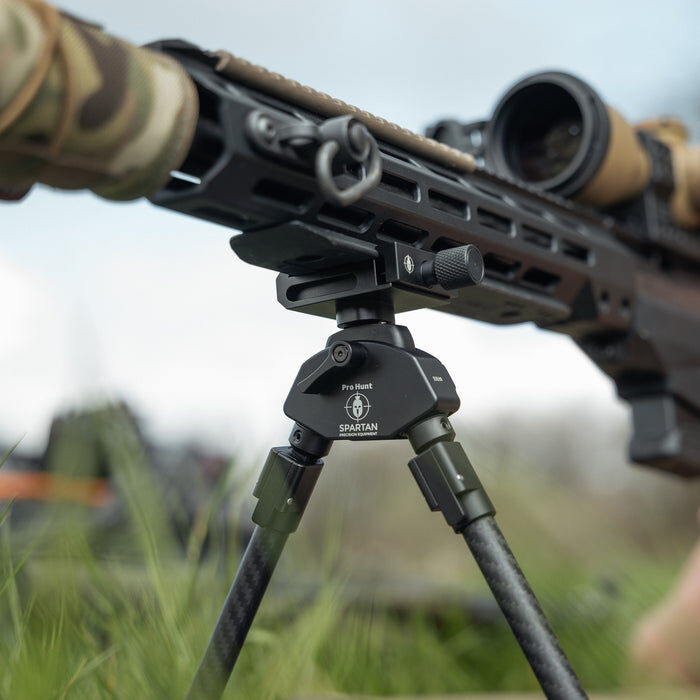

• Precision rifle shooters (PRS and NRL Hunter) — clamps across 38 mm to 40.6 mm Arca-Swiss forend rails to provide a quick-detach MagnaSwitch™ bipod interface for fast transitions between barricades and shooting positions.
• Long-range hunters and backcountry stalkers — adds only 82.2 g to chassis-mounted hunting systems while keeping the 45 mm × 67 mm × 24 mm Arca-Swiss rifle bipod adaptor streamlined during transit.

Less suitable for: Rifles configured exclusively with MIL-STD-1913 Picatinny or direct M-LOK forends, which require a dedicated Picatinny or M-LOK Spartan spigot mount, or setups using Blaser Carbon bipods and Spartan Disc-Lok spigot formats.
