Is the Spartan Valhalla Gen 2 Picatinny Spigot Adaptor compatible with my older Gen 1 Valhalla bipod or MagnaSwitch systems?

No, this adaptor is specifically engineered for the Gen 2 Valhalla bipod and is incompatible with older Spartan MagnaSwitch adapters, Disc-Lok bipods, and Gen 1 Valhalla bipods. If you are running an ultralight backcountry setup, you would instead look at the Javelin Lite using the MagnaSwitch system.

What calibre ratings and recoil thresholds can this spigot adaptor handle in harsh Australian outback conditions?

The Spartan Valhalla Gen 2 Picatinny Spigot Adaptor is CNC-machined from hard-anodised 7075-T7351 aerospace aluminium and stainless steel hardware, built to match the bipod system rating for heavy magnums up to .338 Lapua Magnum. Being a purely mechanical accessory, it has no electrical components, meaning SAA or RCM regulatory electrical certifications do not apply and it performs reliably in extreme outback heat.

How do I mount this adaptor to my rifle chassis and manage the cant limits during precision long-range shooting?

The adaptor easily clamps onto any standard M1913 Mil-Std Picatinny rail using a secure T30 Torx mounting screw. It features a removable cant limit screw that mechanically restricts your tilt to plus or minus 10 degrees left and right, though this screw can be completely removed if you prefer unrestricted movement.

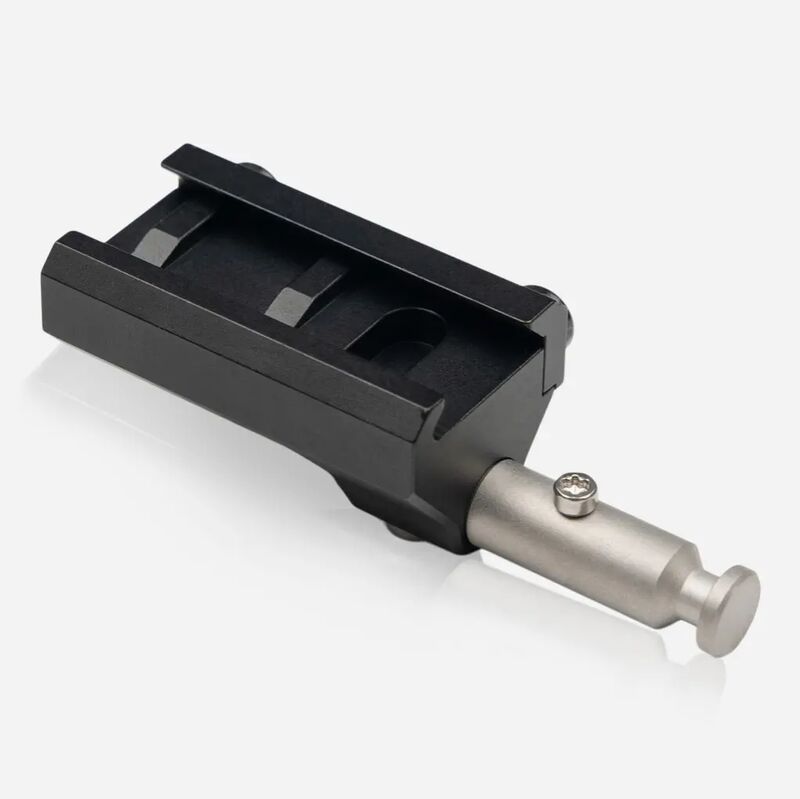

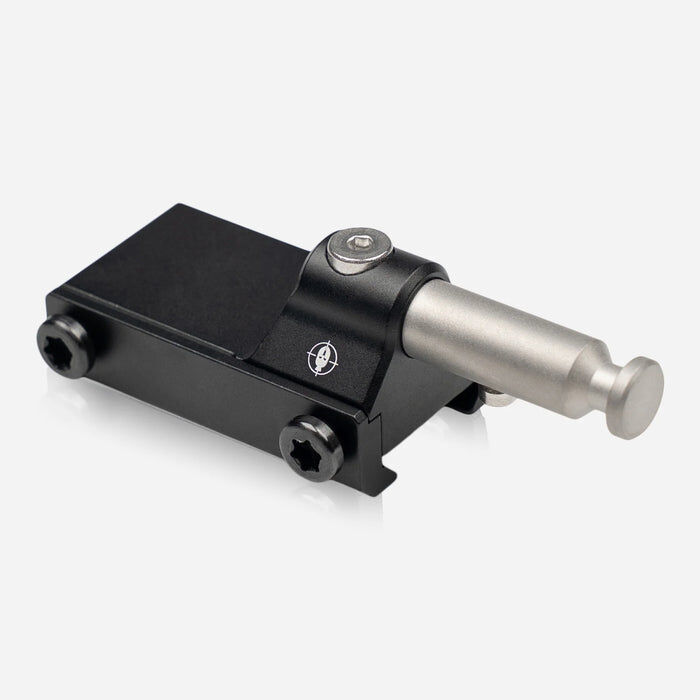

Picatinny Spigot Adaptor - Spartan SPAR02029R

The Spartan Valhalla Gen 2 Picatinny Spigot Adaptor converts any standard M1913 Mil-Std Picatinny rail into a dedicated horizontal spigot mount for the Spartan Valhalla Gen 2 bipod. CNC-machined from hard-anodised 7075-T7351 aerospace aluminium with stainless steel hardware, it clamps securely to railed chassis and forends using a T30 Torx screw. The adaptor provides a low-profile, forward-mounted bipod interface rated to withstand heavy recoil, enabling rapid bipod attachment and detachment while keeping the 103 g spigot permanently seated on the rifle.

Key Features

Dedicated Gen 2 Valhalla Interface: Engineered specifically to mate with the male spigot assembly of the Spartan Valhalla Gen 2 bipod.
Aerospace Construction: Manufactured from CNC-machined 7075-T7351 aluminium and stainless steel hardware for structural rigidity without excess bulk.
Removable Cant Limiter: Features an integrated mechanical limit screw providing ±10° of left and right cant, which can be removed if unrestricted movement is needed.
Recoil-Rated Performance: Built to support severe recoil forces from rifle platforms chambered up to .338 Lapua Magnum.

Product Specifications

Manufacturer Part Number (MPN): SPAR02029R (SP02-029-R)
Rail Interface: M1913 Picatinny rail
Bipod Interface: Spartan Valhalla Gen 2 spigot
Weight: 103 g (3.6 oz)
Material: Hard-anodised 7075-T7351 aluminium and stainless steel
Mounting Hardware: T30 Torx clamp screw
Cant Adjustment Envelope: ±10° left and right (removable mechanical limiter)
Maximum Calibre Rating: Up to .338 Lapua Magnum

Who is the Spartan Valhalla Gen 2 Picatinny Spigot Adaptor for?

Long-range precision shooters — Provides a rigid horizontal spigot bipod adaptor that limits rifle cant to ±10° left and right via a removable mechanical screw, ensuring consistent tracking and level shot placement on uneven terrain.
Big-game hunters — Secures a low-profile mounting footprint with a structural design rated to absorb the recoil energy of calibres up to .338 Lapua Magnum on chassis-mounted hunting rifles.
Tactical marksmen — Adds a minimal 103 g of forward-mounted hardware to the rifle's M1913 Picatinny forend, enabling rapid spigot attachment and removal of the bipod system in seconds.

Less suitable for: Shooters utilizing older Spartan MagnaSwitch magnetic adapters, Spartan Disc-Lok bipods, or Gen 1 Valhalla bipods; shooters requiring an ultralight quick-release hunting setup should look at a dedicated magnetic bipod adapter system, while bench tactical shooters requiring direct clamp-to-rail lockup should select a dedicated rail-clamp bipod mount.

SKU	SPA39587LP
Model #	SPAR02029R
Brand	Spartan
Shipping Weight	1.0000kg
