Will the Spartan Classic M-Lok Adaptor handle heavy magnum centre-fire recoil in Australian outback conditions?

Yes, the adaptor is CNC-machined from 7075-T7351 aerospace-grade aluminium with a durable hard-anodised black finish, built to withstand standard centre-fire and typical magnum hunting calibres. Weighing only 25 g, it maintains a low profile while providing a robust platform for rugged bush and mountain environments.

What Spartan bipods and tripods are compatible with the SPAR0203R M-Lok adaptor?

This adaptor uses the Spartan MagnaSwitch 12mm spigot system, making it fully compatible with Javelin bipods (Lite, Pro Hunt, and Pro Hunt Tac), SpringBok bipods and quad sticks, Ascent and Sentinel tripods, Hoplite systems, and Davros tripod heads. Note that it is incompatible with Spartan Disc-Lok systems like the Valhalla or Vidarr series, which require dedicated heavy-duty spigots.

Does the Spartan Classic M-Lok Adaptor require any electrical safety or RCM certifications for use in Australia?

No, the Spartan Classic M-Lok Adaptor is a completely non-powered, mechanical rifle accessory utilizing passive magnetic mounting. Therefore, requirements for 240V compatibility, SAA electrical safety approvals, and RCM standards do not apply to this product.

M-Lok Bipod Adaptor - Spartan SPAR0203R

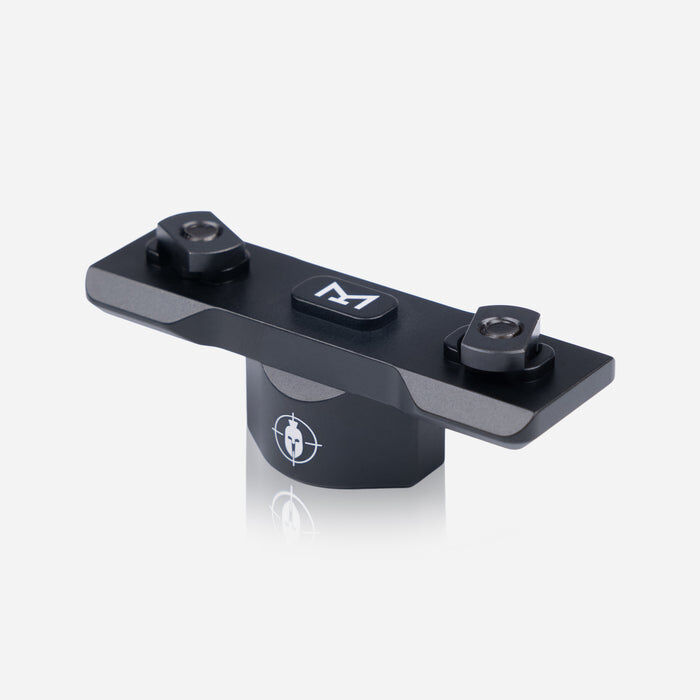

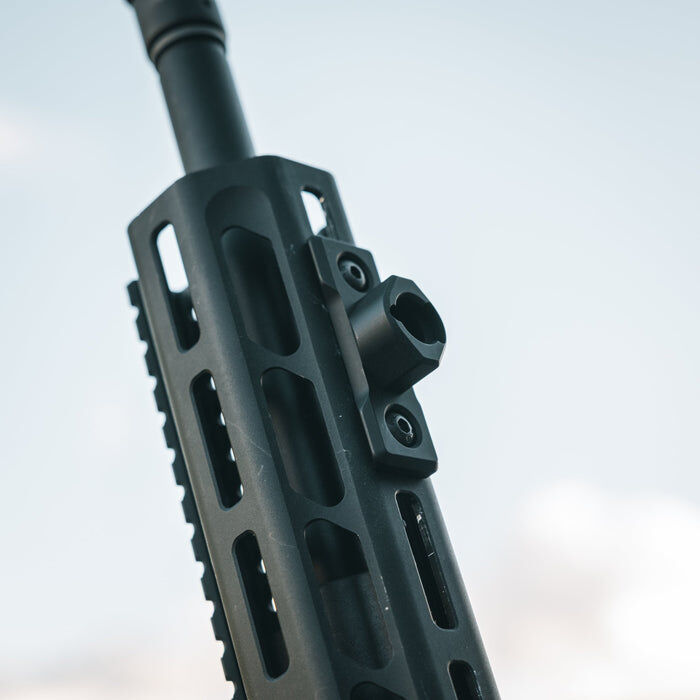

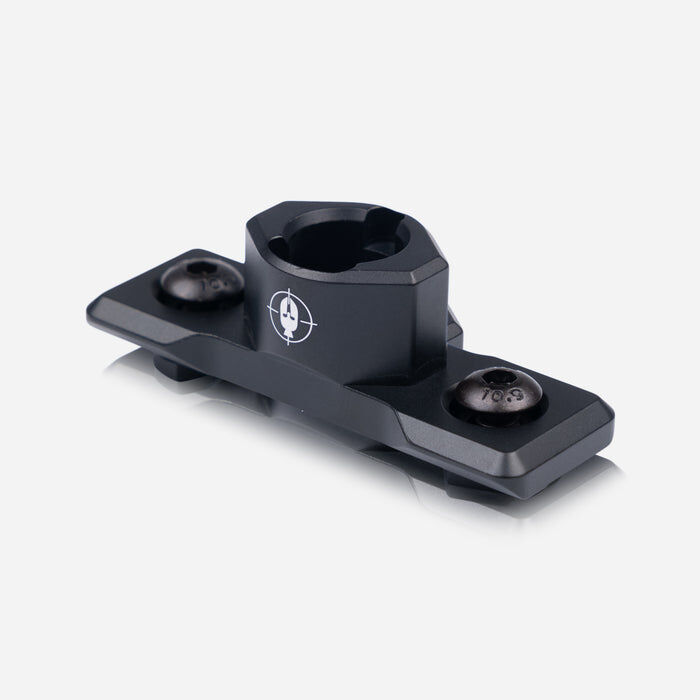

The Spartan Classic M-Lok Adaptor (MPN: SP02-03-R) provides a secure, low-profile mounting socket to attach Spartan MagnaSwitch™ bipods and tripods directly to M-Lok forends and chassis systems. CNC-machined from 7075-T7351 aerospace-grade aluminium billet with a protective hard-anodised black finish, this hardware mounts flush into a single standard M-Lok slot profile. It enables shooters to keep their rifle forend clear of bulky protrusions and rapidly connect or detach magnetic support systems in the field.

Key Features

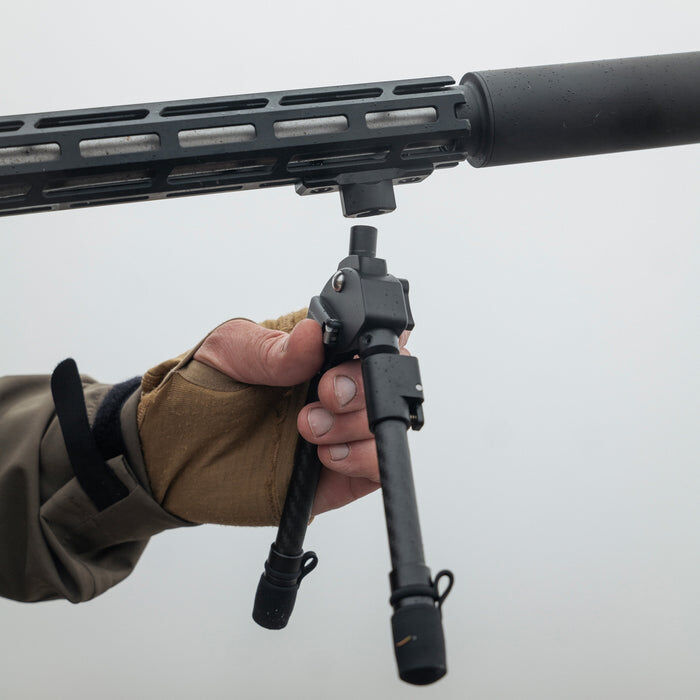

MagnaSwitch™ Magnetic Interface: Enables rapid, one-handed attachment and removal of 12mm Spartan spigot-mounted bipods, tripods, and heads without mechanical latches.
Low-Profile Single-Slot Profile: Occupies a footprint of approximately 22 mm × 45.5 mm to minimise snag points when shooting from rests, bags, or barricades.
Versatile Shooting Modes: Retains full functional geometry for Spartan bipods, supporting both a locked target mode and traversable panning capability.
Aerospace-Grade Construction: Built from CNC-machined 7075-T7351 aluminium billet to withstand standard and magnum centre-fire rifle recoil.

Product Specifications

Product Name: Spartan Classic M-Lok Adaptor
Global MPN: SP02-03-R
Weight: 25 g (0.88–0.9 oz)
Dimensions: 22 mm × 45.5 mm footprint (occupies 1 standard M-Lok slot)
Material: 7075-T7351 CNC-machined aluminium billet
Finish: Hard-anodised black

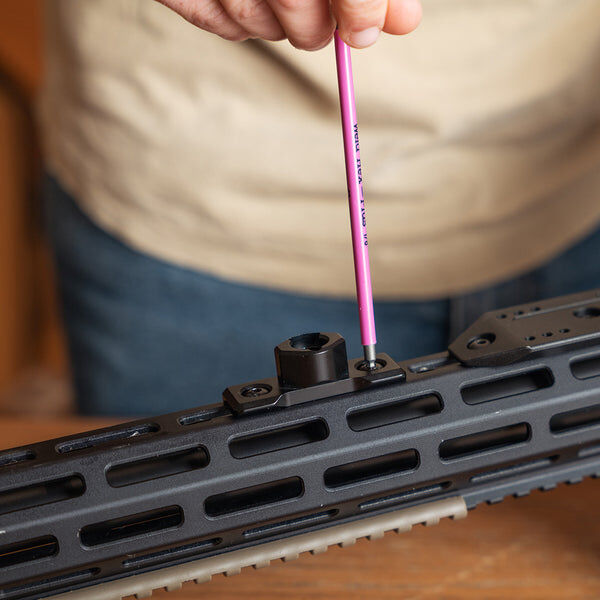

Mounting Interface: M-Lok rail slots (M-Lok T-nuts and hex fasteners included)
System Compatibility: Spartan MagnaSwitch™ 12mm spigot systems (including Javelin Lite, Pro Hunt, Pro Hunt Tac bipods; SpringBok bipods/quad sticks; Ascent and Sentinel tripods; Hoplite systems; Davros heads)

Who is the Spartan Classic M-Lok Adaptor for?

Backcountry mountain hunters — Adds only 25 g to modern carbon-fibre or chassis rifle setups while occupying a compact single M-Lok slot profile, maintaining a lightweight, snag-free forend during extended carry.
Mobile stalkers — Connects Spartan MagnaSwitch™ support gear instantly via a 25 g magnetic interface that mounts flush to the rail, eliminating the mechanical setup time and bulk of traditional fixed bipod hardware.

Less suitable for: Rifle forends featuring KeyMod slots, Picatinny rails, or traditional sling swivel studs, or systems utilizing heavy-duty Spartan Disc-Lok interfaces; these platforms require rail-specific mounting bases or dedicated Disc-Lok spigot adapters.

SKU	SPA39593LP
Model #	SPAR0203R
Brand	Spartan
Shipping Weight	1.0000kg
