What tripod heads and mounting systems are compatible with the Spartan Light Optics Adaptor?

The SPAR0603R features a standard 1/4"-20 UNC female mounting thread to attach directly to compact spotting scopes, cameras, or binocular brackets. It interfaces with any Spartan support system featuring the 12 mm MagnaSwitch magnetic socket, including the Davros Head, Davros Pro Head, Ascent, Sentinel, and Hoplite tripods. Please note that this light-duty model is not compatible with Spartan's Disc-Lok tactical locking system.

Can I use this lightweight adapter with heavy-objective spotting scopes in the field?

No, the Spartan Light Optics Adaptor weighs just 5 g and is specifically engineered for lightweight gear like compact spotting scopes, standard binoculars, or mirrorless cameras. When using full-sized, heavy-objective spotting scopes of 85 mm or greater, you must step up to the Spartan Heavy Duty Optics Adapter instead to ensure structural stability during backcountry glassing.

How do the materials hold up against harsh Australian outback conditions during multi-day hunts?

Built from CNC-machined 7075-T7351 aerospace-grade aluminium billet with a hard-anodised black finish and a 410 stainless steel flat-headed thread bolt, this adapter is engineered for extreme outdoor durability. It offers exceptional corrosion and wear resistance, making it fully reliable when exposed to dust, moisture, and rugged terrain on extended backcountry mountain hunts.

Does this mechanical adapter require any electrical compliance or certifications for use in Australia?

No electrical compliance, SAA approvals, RCM markings, or 240V plug ratings are required for the SPAR0603R. It is a purely passive, mechanical mounting component containing no electronic circuits, batteries, or radio frequency elements.

Optics Adaptor - Spartan SPAR0603R

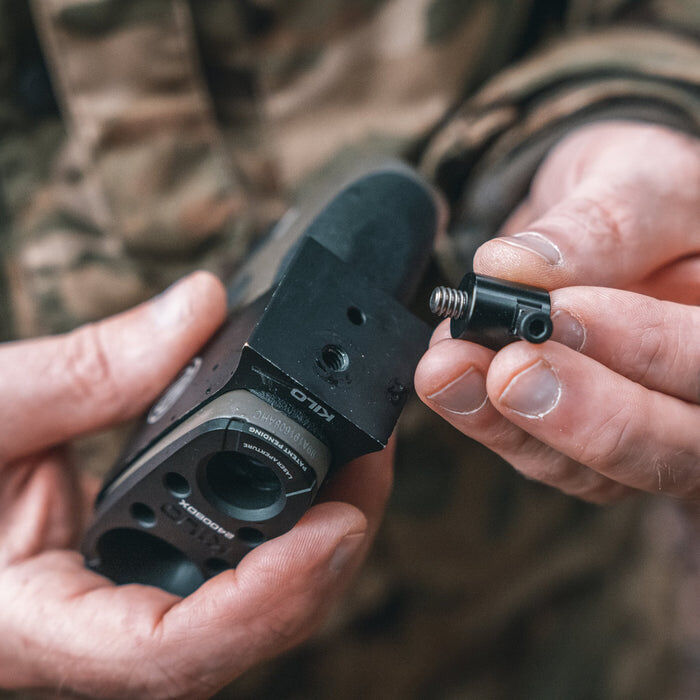

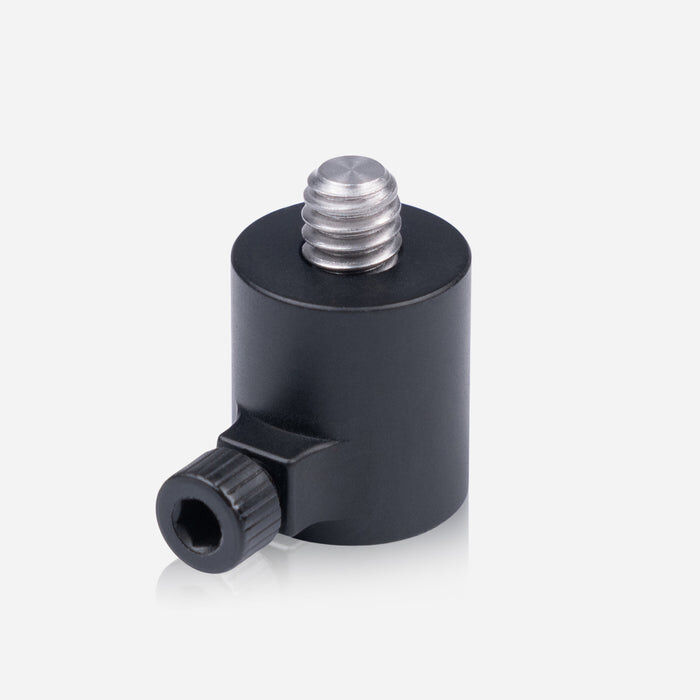

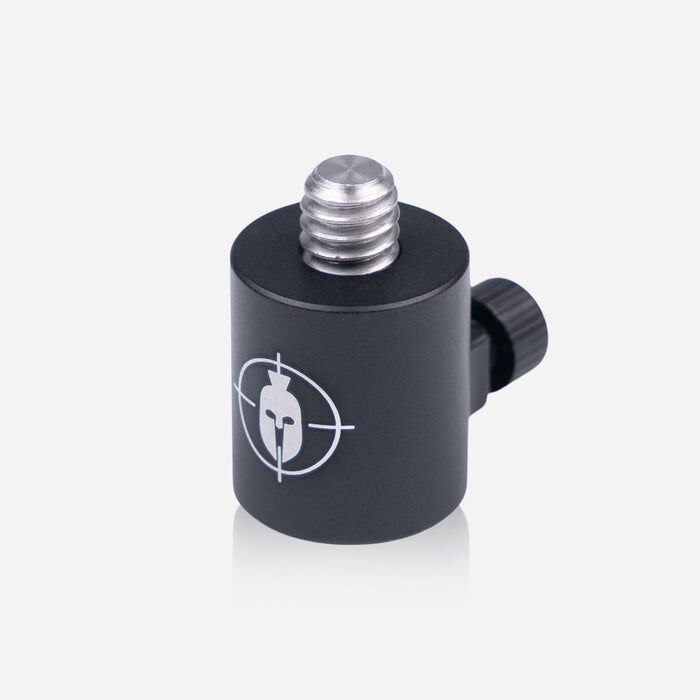

The Spartan Light Optics Adaptor (MPN: SP06-03-R, Australian SKU: SPAR0603R) is a CNC-machined spigot adapter designed to mount optical devices and cameras directly to Spartan magnetic shooting support systems. Weighing 5 g, this ultra-compact adapter threads into the base of lightweight optics to provide rapid, tool-free connection to Spartan MagnaSwitch™ interfaces, allowing shooters to quickly alternate between a firearm and an optic on a single tripod head.

Key Features

MagnaSwitch™ Compatibility: Fits into Spartan 12 mm magnetic spigot sockets, including the Davros Head, Davros Pro Head, Ascent, Sentinel, and Hoplite tripod systems.
Universal Mounting Thread: Fastens to cameras, compact spotting scopes, and binocular mounts via a standard 1/4"-20 UNC flat-headed thread bolt.
Durable Construction: CNC-machined from 7075-T7351 aerospace-grade aluminium billet with a hard-anodised black finish, paired with a 410 stainless steel thread bolt for all-weather corrosion resistance.
Passive Operation: Completely mechanical design requiring no batteries, wiring, or external power.

Specifications

Weight: 5 g (0.2 oz)
Spigot Fitting: 12 mm magnetic spigot
Thread Interface: 1/4"-20 UNC male screw
Materials: 7075-T7351 aerospace-grade aluminium billet and 410 stainless steel
Locking System: Spartan MagnaSwitch™ magnetic interface (incompatible with Spartan Disc-Lok™ systems)

Who is the Spartan Light Optics Adaptor for?

Backcountry mountain hunters — Adds only 5 g to pack weight while enabling instant magnetic mounting of lightweight field optics directly to a tripod.
Spot-and-stalk hunters using spotting scopes — Connects compact spotting scopes and binocular brackets to 12 mm Spartan magnetic heads via a standard 1/4"-20 UNC thread interface for rapid glassing.

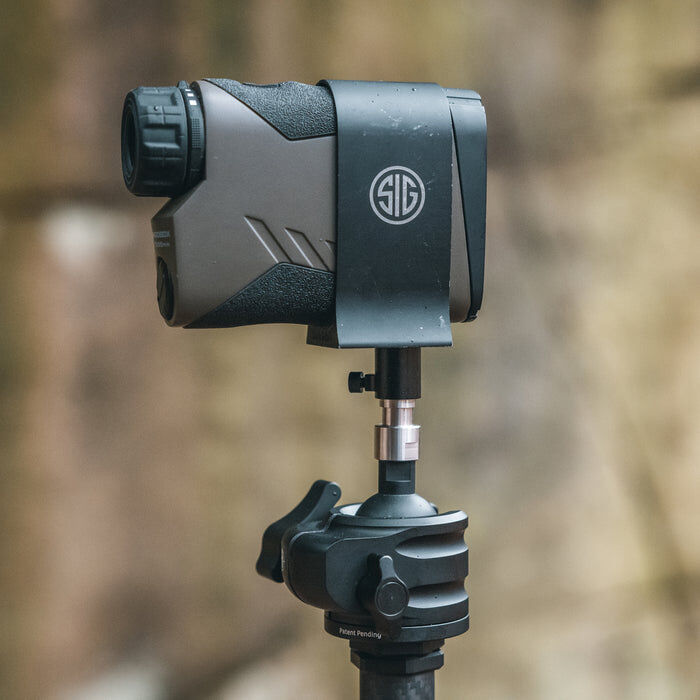

Field shooters combining rifle and camera gear on a single tripod — Allows instant swapping between a rifle and a camera or phone holder on a Spartan 12 mm magnetic socket without reconfiguring the tripod head.

Less suitable for: Heavy-objective spotting scopes with 85 mm or larger objective lenses, heavy professional camera rigs, or setups requiring mechanical locking levers, which require a heavy-duty optics adapter; and gear requiring a Spartan Disc-Lok™ tactical locking system, which is incompatible with this 12 mm magnetic adapter.

SKU	SPA39622LP
Model #	SPAR0603R
Brand	Spartan
Shipping Weight	1.0000kg
