What size dovetail rails and scope tubes are compatible with the Sportsmatch LTO30 mounts?

The Sportsmatch LTO30 (also known as LTO30C) is engineered to fit standard 9.5mm to 11.5mm (3/8" to 11mm) dovetails and receiver grooves commonly found on rimfire and air rifles. These two-piece rings are specifically designed to hold scope tubes with a 1" (25.4mm) diameter.

What is the maximum objective lens size I can use with these low-profile rings?

With a low height profile of 13mm measured from the bottom of the mount clamp to the base of the scope tube, the LTO30 is optimized for rifle scopes featuring up to a 32mm front objective lens diameter on most standard rifles. This keeps your optic low to the bore for an optimal cheek weld.

Do these scope mounts require any specific Australian electrical or regulatory certifications?

No, because the Sportsmatch LTO30 is a purely mechanical, non-electronic firearm accessory, it does not require electrical certifications such as SAA Approval, an RCM mark, or Australian 240V plug compatibility. It is ready for immediate mechanical installation on your firearm.

How do these mounts prevent scope shift under recoil on rimfire or air rifles?

The Sportsmatch LTO30 includes a removable, easy-fit recoil arrestor pin designed into the base clamp. This pin locks into the receiver's arrestor hole to effectively prevent any backward scope slippage under recoil, making them a reliable choice for popular Australian .22 LR rimfires and airguns.

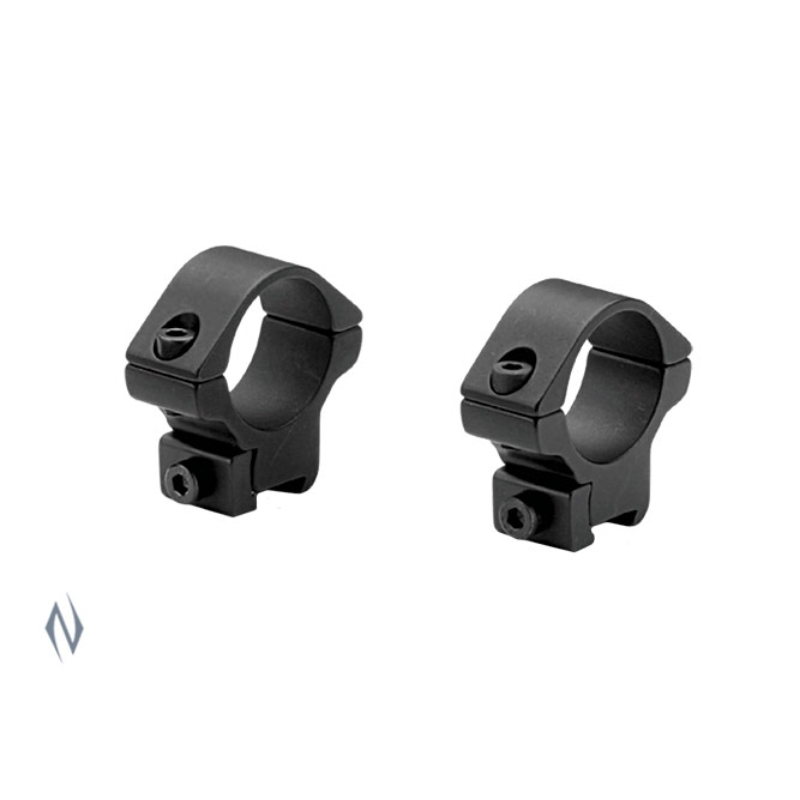

Scope Rings - Sportsmatch LTO30

The Sportsmatch LTO30 (also known by the manufacturer part number LTO30C) is a British-made, high-precision two-piece scope mounting solution designed for rifles with narrower receiver grooves. Engineered by Sportsmatch UK from high-tensile, aircraft-grade aluminium, these low-profile mounts provide a secure and reliable attachment for optics with a 1-inch (25.4mm) tube diameter. Designed to clamp onto standard 9.5mm to 11.5mm (3/8" to 11mm) dovetails, this mounting set ensures precise alignment without putting crushing pressure on your scope tube, maintaining structural integrity and optical performance under field conditions. Key Features:

Precision CNC Machined: Crafted from high-tensile, aircraft-grade aluminium to guarantee exact tolerances and perfect alignment for your rifle scope.
Two-Piece Configuration: Keeps the rifle breach completely clear, which is essential for trouble-free cartridge ejection and top-loading on bolt-action and rimfire receivers.
Integrated Arrestor Pin: Features a removable, easy-fit recoil arrestor pin to prevent scope movement and drift during repeated firing.
Low-Profile Design: Optimised to keep the scope mounted close to the bore, enhancing shooting consistency and aiding in a natural cheek weld.
Single-Screw Clamping: Features a single screw on each base clamp and a single screw on each top ring cap for a secure, uncomplicated installation.

Technical Specifications:

Manufacturer: Sportsmatch UK
Model Number: LTO30 / LTO30C
Tube Diameter Compatibility: 1 inch (25.4mm)
Base Fitting: 9.5mm to 11.5mm (3/8" to 11mm) dovetails and receiver grooves
Height Profile: 13mm (measured from the bottom of the mount clamp to the underside of the scope tube)
Width: 16mm
Weight: 56 grams
Maximum Objective Lens Compatibility: Suitable for rifle scopes with up to a 32mm front objective lens on most standard rifles

Who It Is For:

The Sportsmatch LTO30 is specifically designed for target shooters and hunters utilising small-caliber rimfire rifles and modern air rifles. In the Australian shooting market, this mount is a preferred choice for owners of popular .22 LR rifles from brands such as CZ, Anschutz, and Ruger. It is ideal for Australian shooters engaged in small game hunting, pest control, and rimfire target disciplines who require a reliable, European-made alternative to cast-alloy mounts. The low clearance profile is perfect for those who want to keep their optics low to the receiver, ensuring a streamlined setup and optimal head positioning when targeting rabbits, hares, or practicing on the range.

SKU	SPM39137LP
Model #	LTO30
Brand	Sportsmatch
Shipping Weight	1.0000kg
