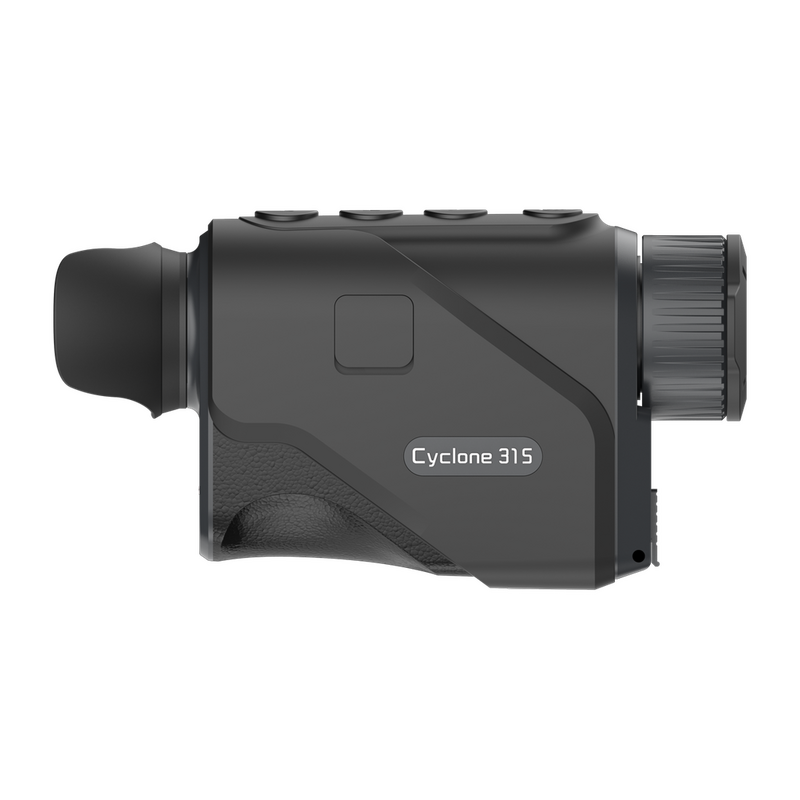

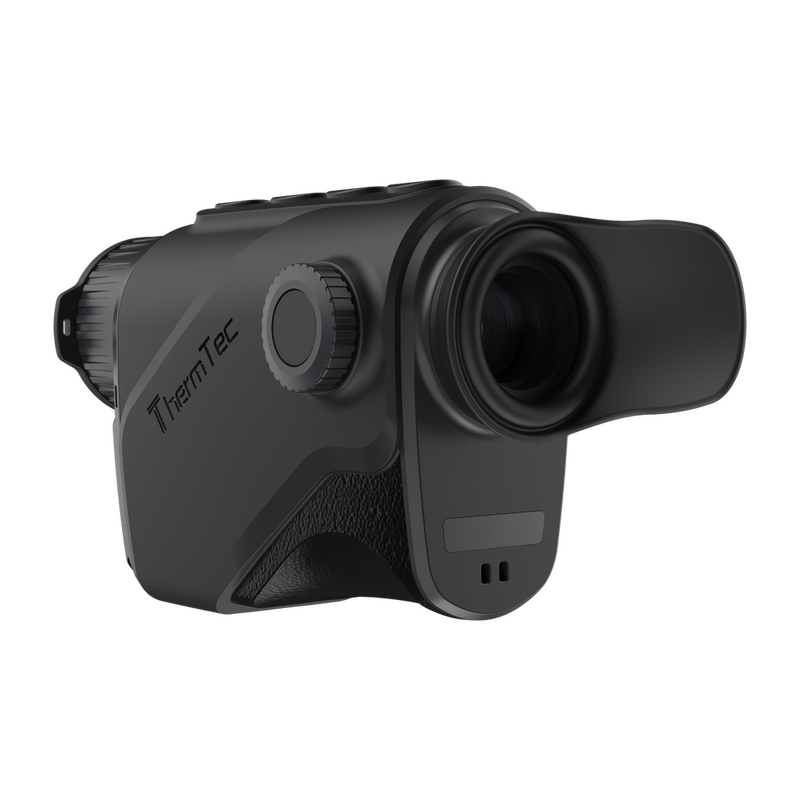

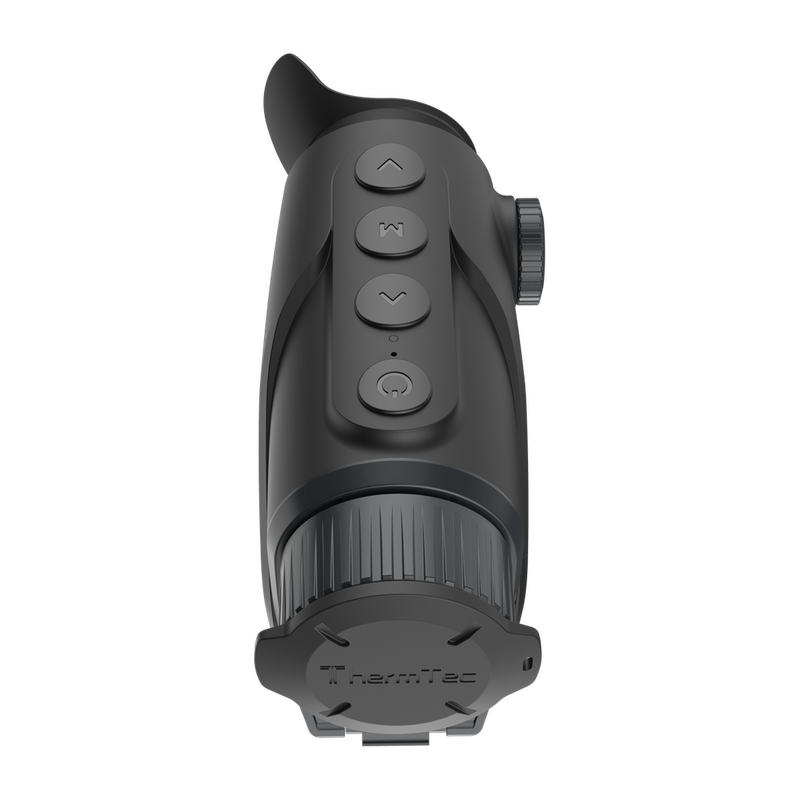

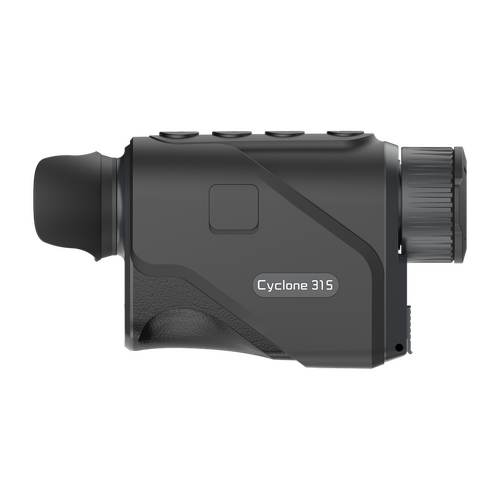

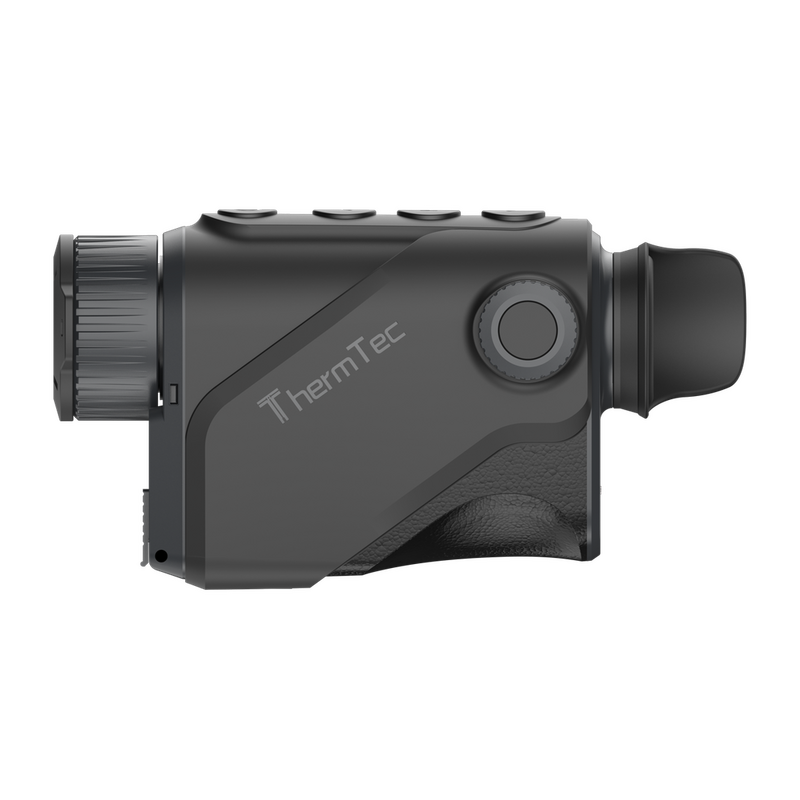

ThermTec Cyclone 315 is most compact and lightweight thermal imaging monocular on the market, weighing only 255g. Features a NETD <20mK detector that delivers excellent image quality. AI self-learning algorithms that provide increasingly stable target image quality. With advanced features such as multi-target ranging, 20-hour battery life, and 3-second fast startup, it is a great choice for close-range observations at an affordable price.


KEY FEATURES

Resolution: 384×288

Pixel pitch: 12μm

NETD: 20mK@300k

Spectral range: 8–14μm

Frame rate: 50Hz

Detection range: 750m

Objective lens: 15mm/F1.0

Field of view: 17.5°×13.1°

/ m @100m: 30.7m × 23.0m

Magnification: 1.4x

Digital zoom: 1x, 2x, 4x

Eye relief: 20mm

Exit pupil: 6mm

Diopter: ±5D

Type: AMOLED

Display Resolution: 1024×768

Display size: 0.39 inch

Color palette: 6

Image mode: Forest / Target / Outline

Photo/video playback: Yes

Language: Multiple-languages

Inbuilt Memory: 32GB

Audio: Yes

Calibration: Auto/Manual

PIP: Yes

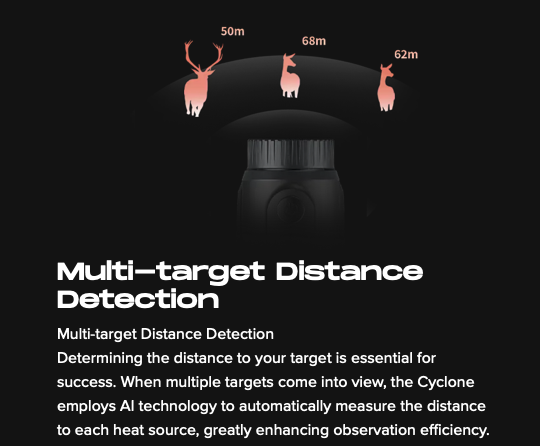

AI Distance Measurement: Yes

Heat Track: Yes

OSD Recording: Yes

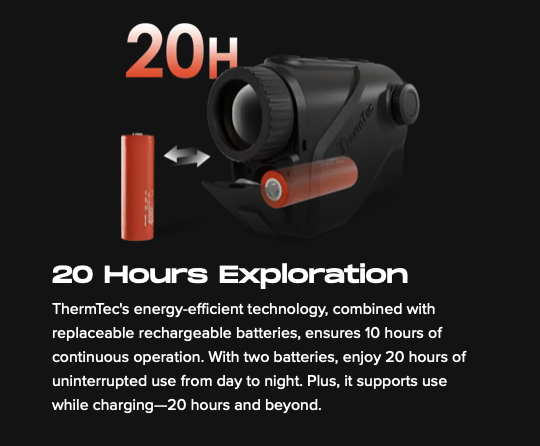

Internal battery: Replaceable and Rechargeable Li-Ion Battery (18650×1)

Battery life: 10h

Type-C: Supports battery charging, data transfer

Hotspot: Yes, App remote control

Working temperature: -20°C ~ +50°C

Protection Level: IP67

SKU TMC128599LP
Model # OPTT-CYCLONE315
Brand Thermtec
Shipping Weight 0.6000kg
