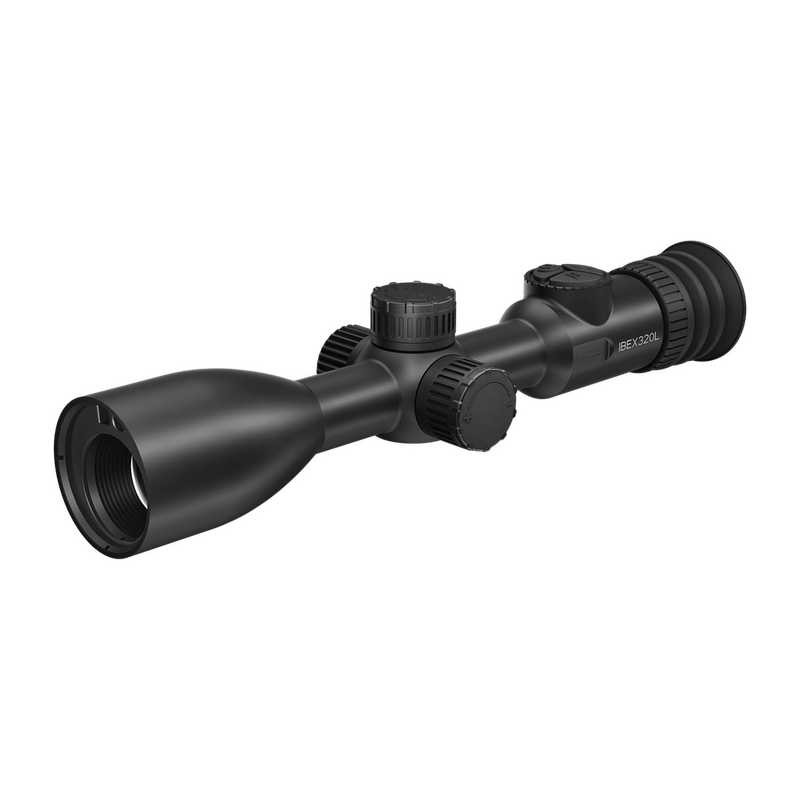

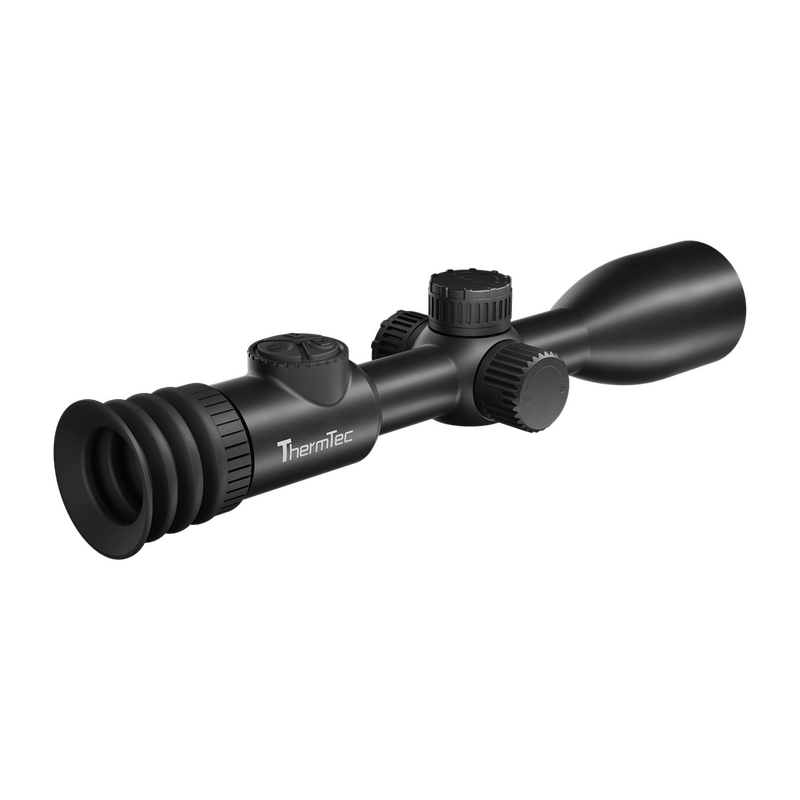

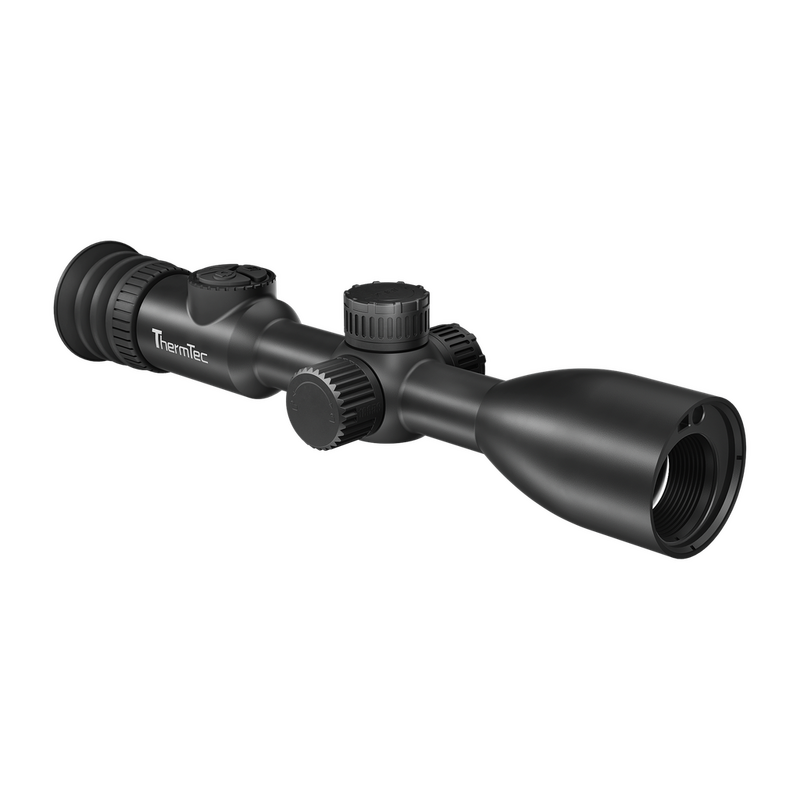

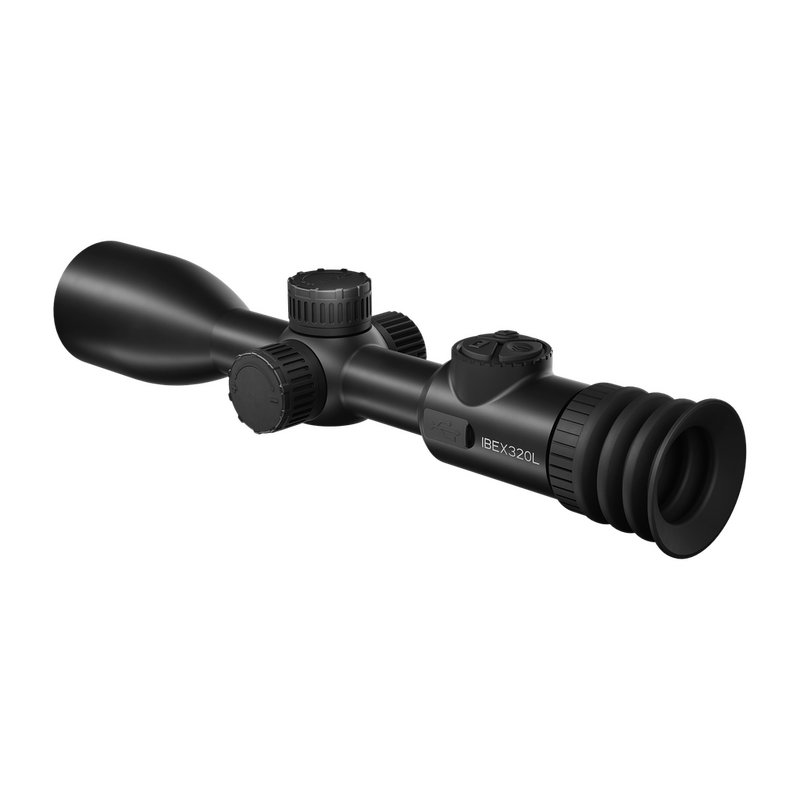

The ThermTec Ibex 320L Thermal Tube Scope is a thermal imaging optic engineered for nocturnal shooting and dynamic pest management. Built with a traditional 30 mm tube profile, it houses a 384 × 288 uncooled Vox detector with a 12 μm pixel pitch and sub-18 mK NETD sensitivity. Featuring a 20 mm F0.9 objective lens paired with a built-in 1,000-metre laser rangefinder and ballistic calculator, the system delivers real-time trajectory correction and wide-angle visual tracking onto a 0.5-inch 1600 × 1200 AMOLED display.

Key Features

• Integrated Laser Rangefinder and Ballistics: Onboard LRF measures distances out to 1,000 metres and pairs with an internal ballistic calculator for precise shot placement.
• ThermTec AutoSight System (TASS): Automatically reverts the digital display back to the native 2.1× base optical magnification after a shot is fired at high zoom, accelerating target reacquisition.
• Advanced Image Processing: Incorporates Thermal Super Resolution (TSR) and AI-driven calibration to maintain edge clarity across low-contrast environments.
• Ergonomic Turret Focus: Central turret focus control replaces traditional front objective rings, providing glove-friendly adjustments while mounted in standard 30 mm rifle scope rings.
• Integrated Recording: Features recoil-activated video (RAV) with audio recording and Picture-in-Picture (PiP) display capability.
• Field-Swappable Power: Powered by a replaceable 18650 rechargeable Li-ion battery providing up to 6 hours of continuous operating runtime.

Specifications

• Thermal Detector: 384 × 288 uncooled Vox
• Pixel Pitch: 12 μm
• Thermal Sensitivity: NETD < 18 mK
• Frame Rate: 50 Hz
• Objective Lens: 20 mm, F0.9
• Base Optical Magnification: 2.1×
• Field of View: 13.1° × 9.8° (23 m × 17.3 m at 100 m)
• Display: 0.5-inch AMOLED (1600 × 1200)
• Laser Rangefinder Max Range: 1,000 m
• Mounting Compatibility: Standard 30 mm rings
• Weight: Approximately 720 g
• Battery Type: Replaceable 18650 Li-ion (up to 6 hours runtime)

Who is the ThermTec Ibex 320L Thermal Tube Scope for?

• Nocturnal pest eradication of foxes and feral pigs — Delivers accurate targeting across short to medium distances by pairing a 1,000 metres laser rangefinder and onboard ballistics with a sub-18 mK 384 × 288 uncooled Vox detector in a thermal rifle scope.
• Woodland stalking requiring wide field of view — Provides a broad 13.1° × 9.8° viewing angle (23 m wide at 100 m) combined with a 2.1× base optical magnification from a 20 mm F0.9 objective lens, maintaining rapid situational awareness in dense cover at a weight of 720 g.

Less suitable for: Extended-distance identification past 1,000 m in open country, where thermal rifle scopes featuring larger 35 mm focal length optics and higher optical magnification are better suited.
