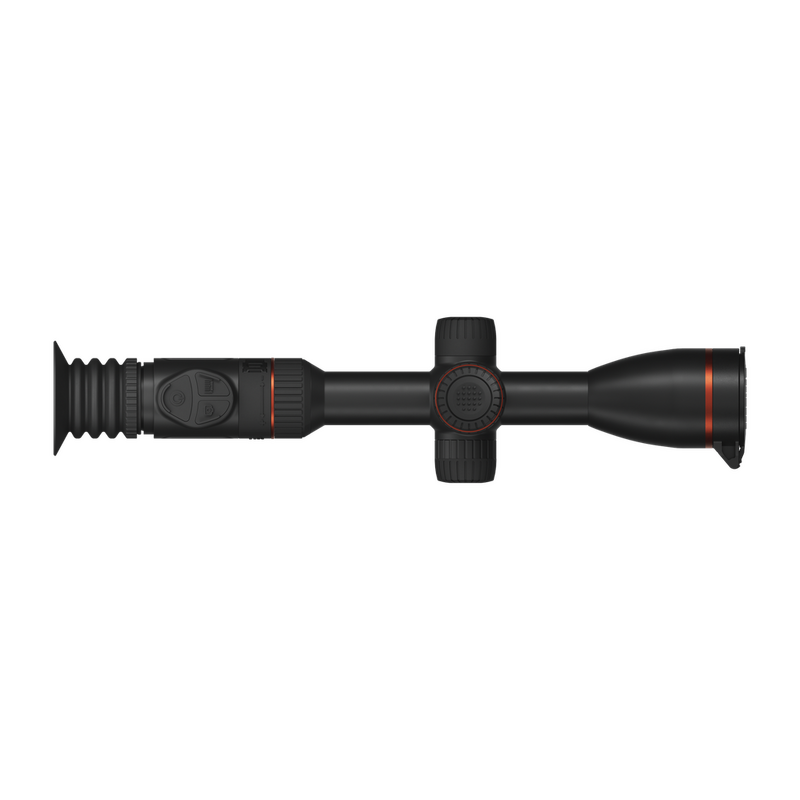

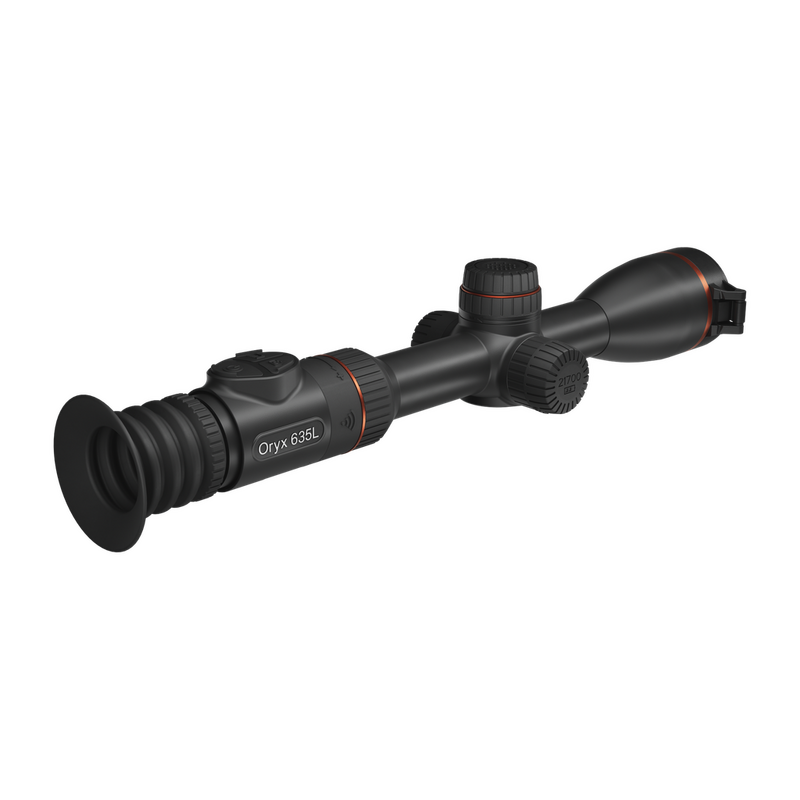

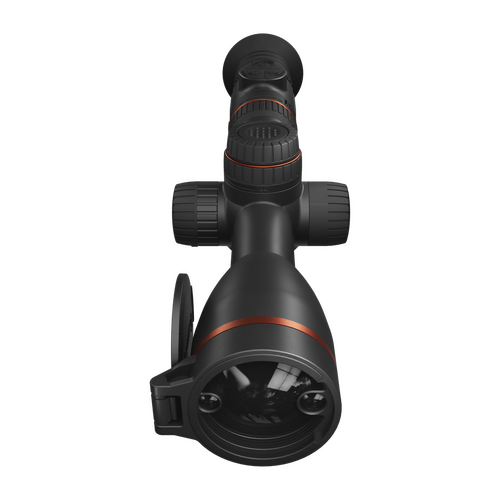

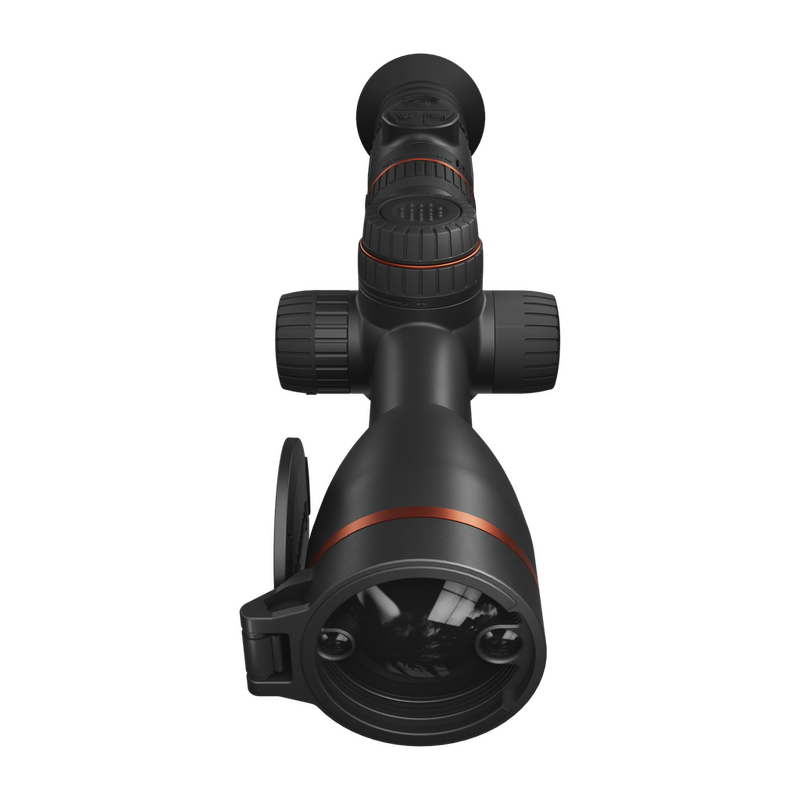

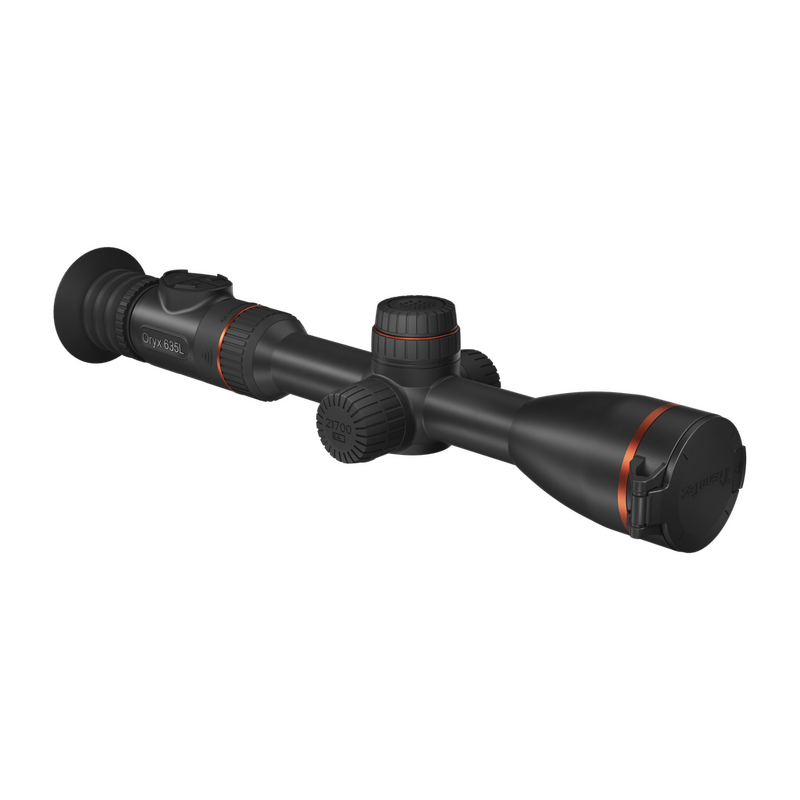

The ThermTec Oryx 635L Thermal Tube Scope is a digital thermal riflescope built on a standard 30 mm tube format for night hunting and pest management. Powered by an uncooled 640 × 512 VOx thermal sensor with a 12 µm pixel pitch and an NETD of ≤ 15 mK, it pairs a 35 mm objective lens with a 2560 × 2560 AMOLED display. The optical system delivers 2.6× base optical magnification with a 12.5° × 10.0° field of view, detecting large game heat signatures out to 1,800 m. An integrated laser rangefinder measures distances up to 1,200 m, feeding real-time data into an onboard ballistic calculator.

Key Features

• Integrated Laser Rangefinder & Ballistics: Features an objective-integrated LRF module capable of ranging up to 1,200 m, paired with an internal ballistic calculator for precise point-of-aim corrections.
• High-Resolution AMOLED Display: Projects thermal imagery onto a 1.03-inch circular AMOLED display at 2560 × 2560 resolution with a 50 Hz refresh rate.

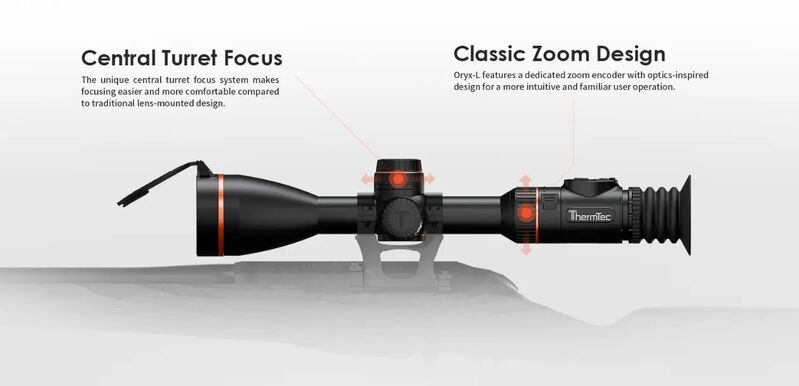

• Central Turret Focus & TASS: Uses a central turret focus dial for one-handed adjustments alongside the ThermTec AutoSight System (TASS), which automatically returns the optic to base magnification post-recoil.
• Shutterless NUC & RAV Recording: Employs AI shutterless calibration to eliminate screen freeze during continuous viewing, supporting Recoil-Activated Video (RAV) with audio directly to 64 GB of internal storage.

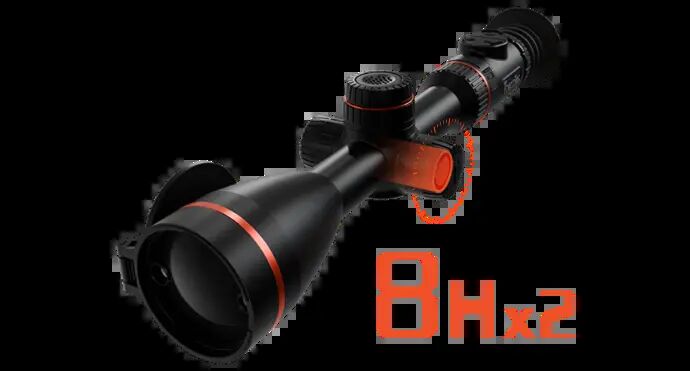

• Extended Battery Life: Powered by a single replaceable 21700 Li-ion battery (6,000 mAh included) providing up to 8 hours of runtime, rechargeable via a 5V USB Type-C interface.

Specifications

• Thermal Sensor: 640 × 512 uncooled VOx focal plane array
• Pixel Pitch & Sensitivity: 12 µm, NETD ≤ 15 mK
• Frame Rate: 50 Hz
• Objective Lens: 35 mm
• Magnification: 2.6× base optical magnification (1.0×–4.0× digital zoom)
• Field of View: 12.5° × 10.0°
• Detection Range: Up to 1,800 m
• Laser Rangefinder Range: Up to 1,200 m
• Tube Diameter: Standard 30 mm
• Dimensions: 385 mm (L) × 93 mm (W) × 77 mm (H)
• Weight: 1,050 g
• Recoil Rating: Up to 6,000 Joules
• Ingress Protection: IP67 waterproof and dustproof
• Operating Temperature: -20 °C to +50 °C

Who is the ThermTec Oryx 635L Thermal Tube Scope for?

• Nocturnal feral pig hunters operating in dense bush and open farmland — requires the wide 12.5° × 10.0° field of view and 2.6× base optical magnification of this thermal rifle scope to rapidly track and engage moving sounders at close-to-medium ranges.
• Pest controllers managing foxes and deer at short to medium ranges — relies on the 640 × 512 resolution sensor and the 1,200 m integrated laser rangefinder on this thermal rifle scope to calculate ballistic holds accurately out to 150 m.

Less suitable for: Frequent shooting past 150 m, where a thermal scope with a 50 mm objective lens and higher base magnification (such as 3.7×) provides better target resolution, or ultralight mountain setups where compact thermal clip-ons or lightweight handheld monoculars better suit strict carry-weight limits than this 1,050 g unit.
