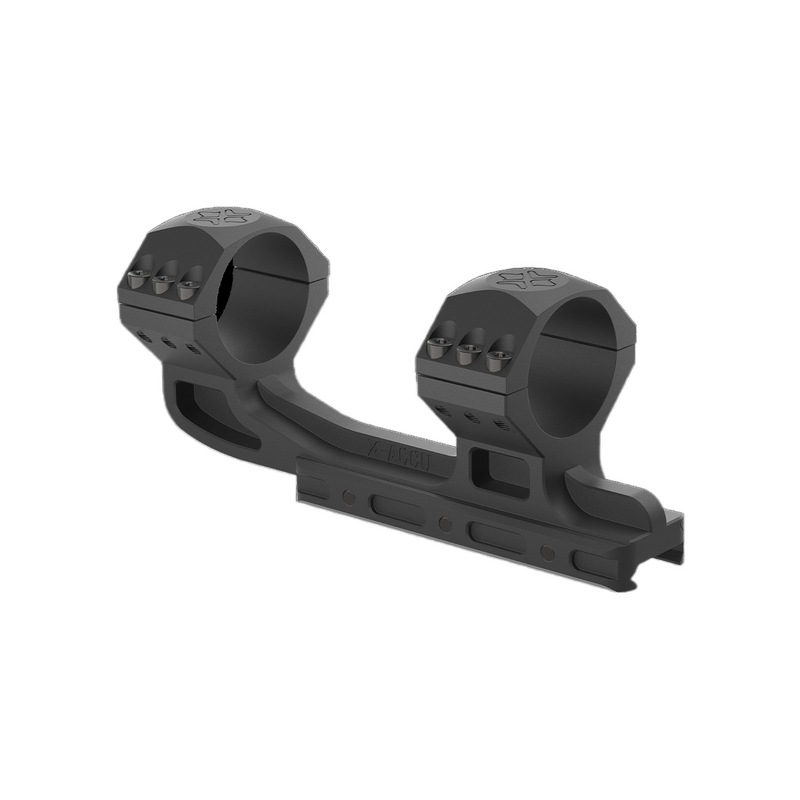

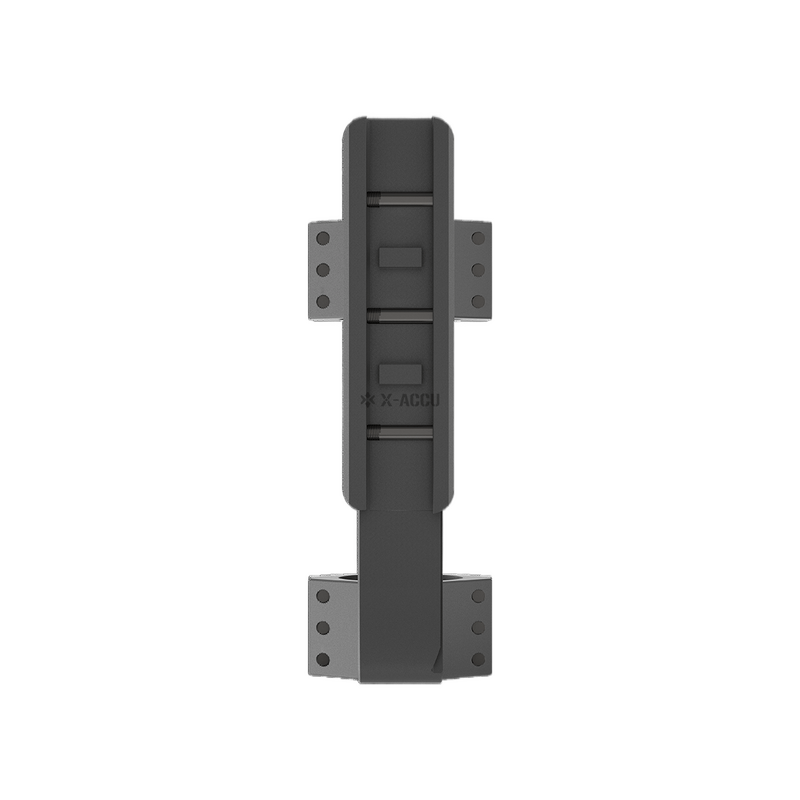

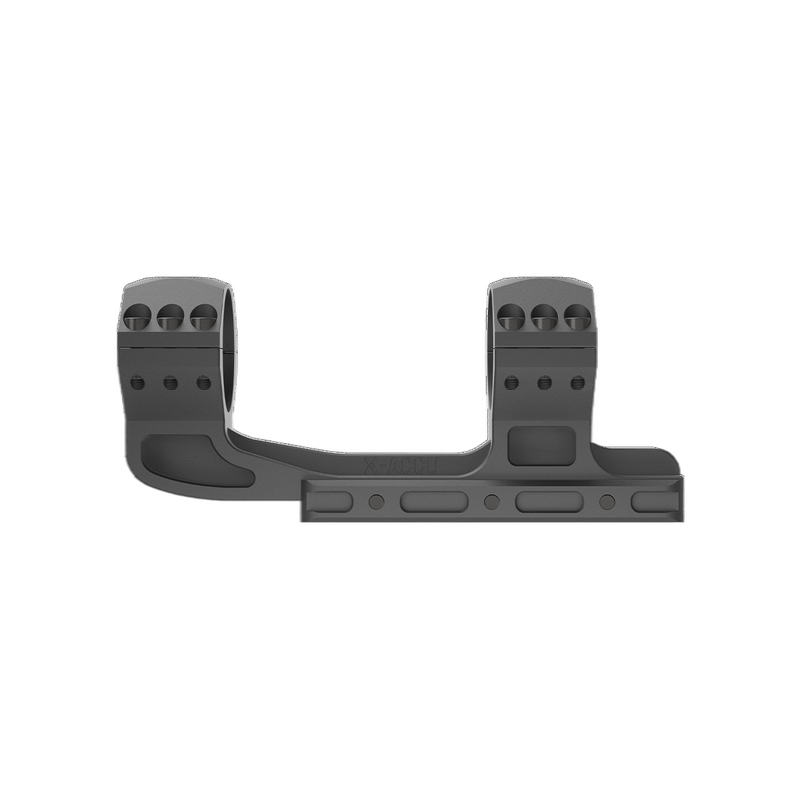

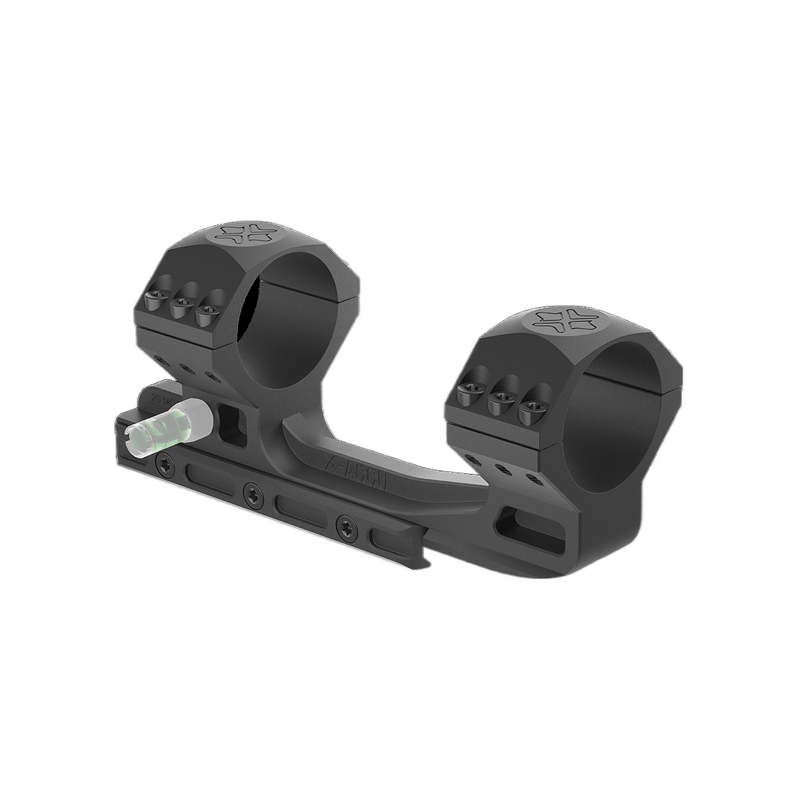

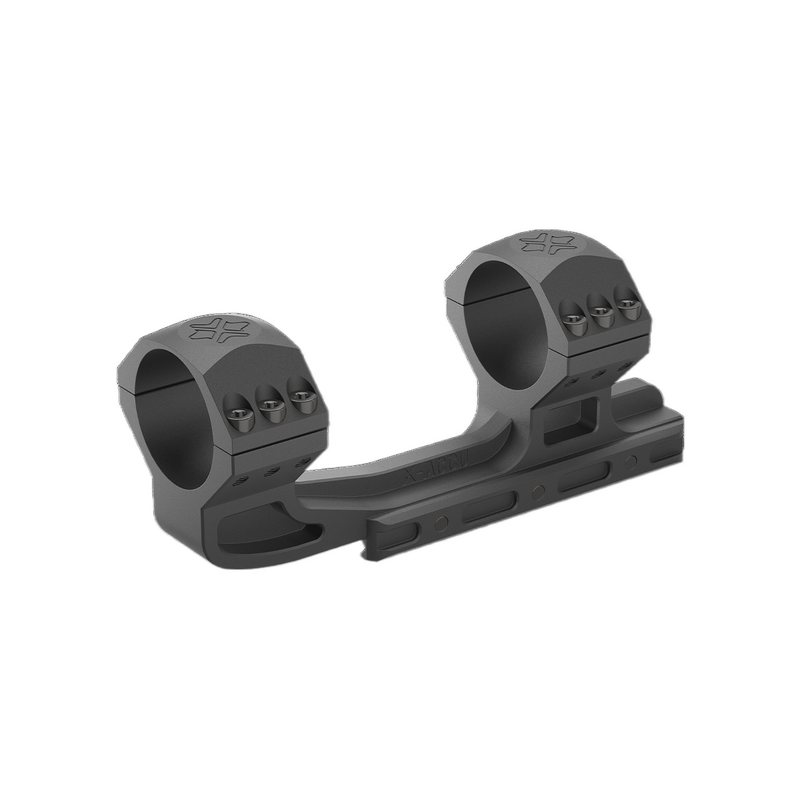

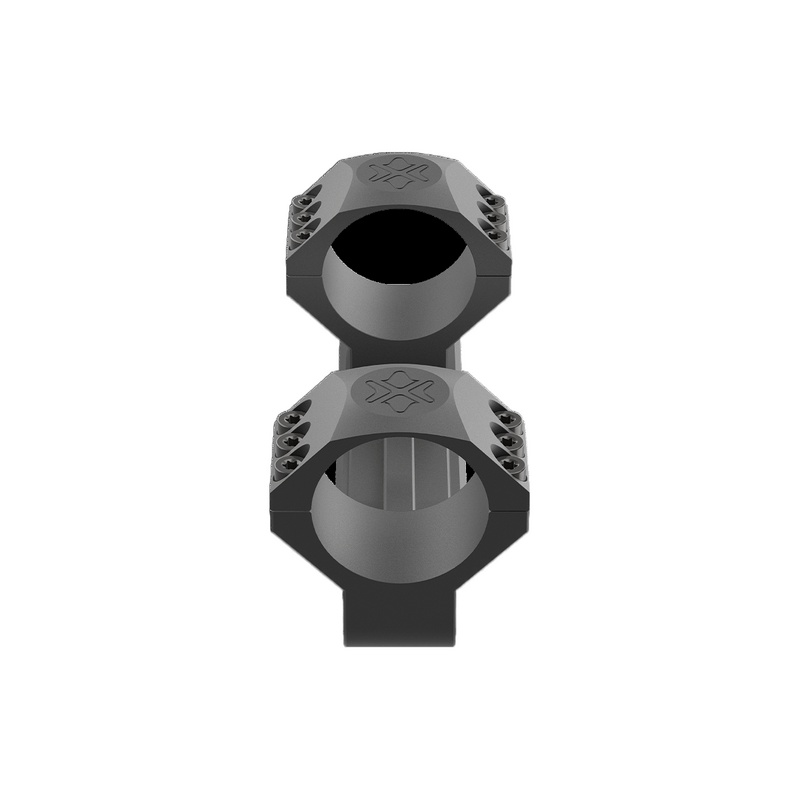

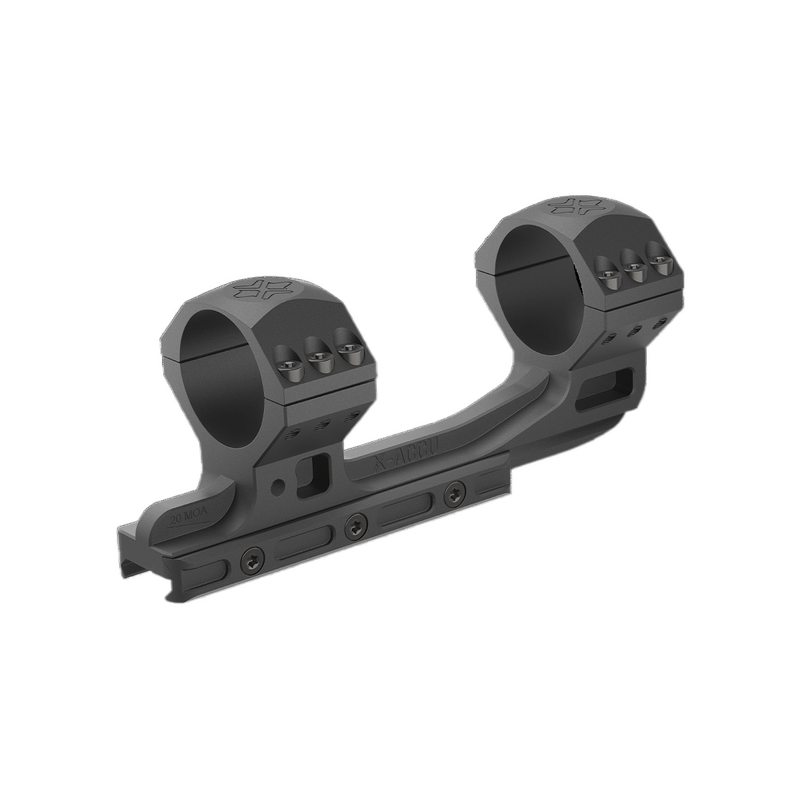

Vector Optics 34mm Cant 20moa One Piece High Picatinny Mount

Description
Specifications

•34mm Dia., 20MOA Type, Fit Max 65mm Scope Objective Lens, Six Screws Per Ring

• 40mm (1.6in) Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined

•Hard Anodizing, 21mm Picatinny Mount w/3 Crossing Bolts & Anti-Retreat Bar

• Mount Rings Can Fit Any 34mm Scope Tube

KEY FEATURES

Ring Diameter: 34mm
Overall Length: 147mm / 5.8in
Overall Height: 64mm / 2.5in
Ring Width: 26mm / 1in
Central Height: 40mm / 1.6in (from bottom to center)
Gap Length: 70mm / 2.7in
Material: High-strength aluminum alloy
Weight: 212g / 8.3oz
Mount:1913 Picatinny
Finish: Black Matte
Screws Per Ring: 6
Do not use over 18 inch / pounds of torque on the scope rings' screws
Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for clamp nuts when installing the mount on the picatinny rail
Designed for hard and rigorous use
With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts

SKU	VC125541AF
Model #	XASR-3015
Barcode #	6976386120479
Brand	Vector Optics
Shipping Weight	0.3000kg
