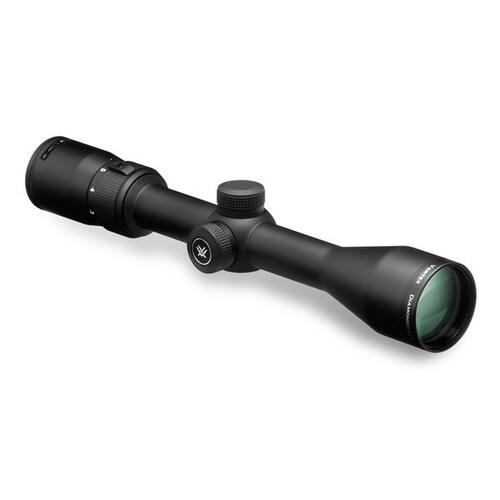

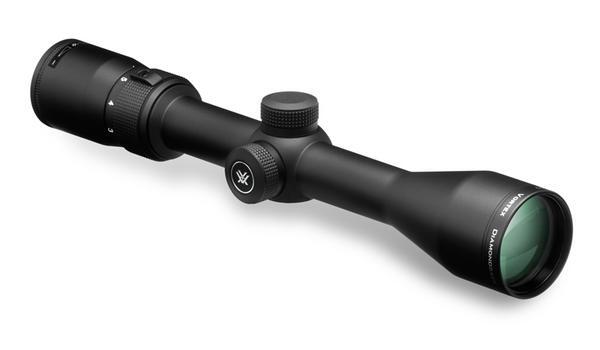

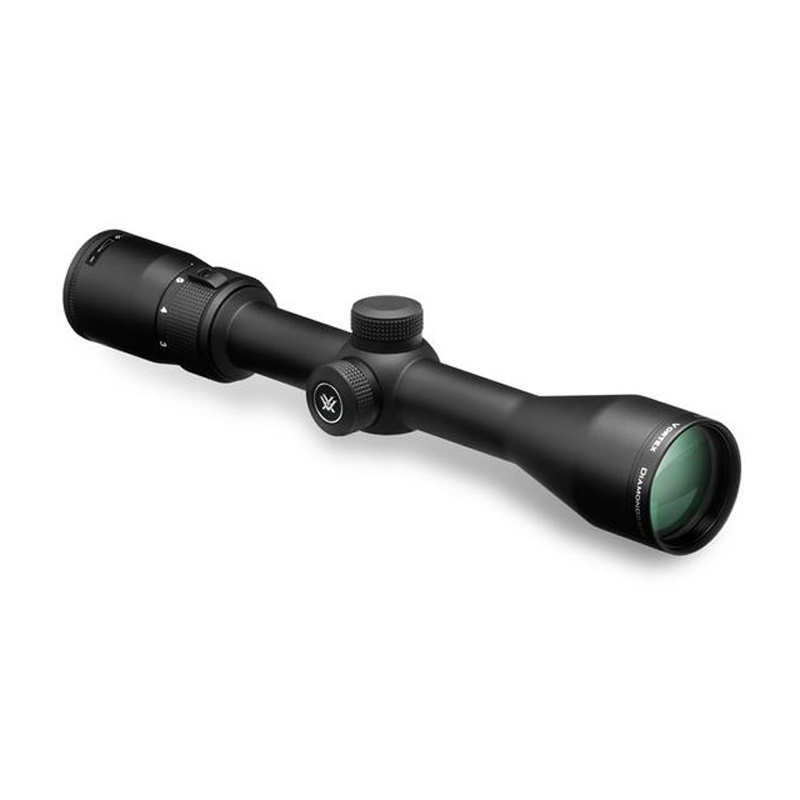

The Diamondback is loaded with features!

First, the solid one piece aircraft grade aluminium alloy construction makes the Diamondback riflescope virtually indestructible; it is highly resistant to magnum recoil.

Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise the stakes when crystal clear, tack sharp images appear in the crosshairs.

Look for all this and more in a riflescope that you would expect to cost quite a bit more, but doesn't. We can live with that!

3-9x40 riflescope is ideal for big game, muzzleloader, and slug shotgun applications.

V-Plex Reticle (MOA)

A popular all purpose hunting reticle, intended for a wide variety of hunting applications.

OPTICAL

Fully Multi-Coated Lenses Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION

One Inch Tube - Standard tube diameter for most American riflescopes.

One Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance as well as strength and water resistance.

Aircraft Grade Aluminium - Premium grade of aluminium, valued for fatigue resistance.

Precision Glide Erector System - Uses premium components in the zoom lens mechanism, ensuring smooth magnification changes under the harshest conditions.

Fast Focus Eyepiece - Allows quick and easy reticle focusing.

Low Profile Turrets - Less susceptible to accidental impact damage.

Reset Turrets - Allow re-indexing of the turret housing to zero after sighting in the riflescope; generally requires use of a coin or wrench.

Waterproof - O-ring seals prevent moisture, dust, and debris from getting inside the tube, ensuring reliable performance in all environments.

Fogproof - Filled with argon gas to inhibit internal fogging.

KEY FEATURES

• Parallax correction is factory preset at 100 yd
• Fast focus eyepiece for rapid target acquisition
• XR multi-layer coatings deliver edge-to-edge clarity
• 0" One-piece 6061-T6 aluminium main tube construction
• Low-profile turrets with 1/4 MOA audible & tactile clicks
• Windage/90 MOA - Elevation/84 MOAMagnification - 3-9X
• Objective Lens Diameter - 40 mm
• Eye Relief - 3.3 inches
• Field of View - 44.6-14.8 feet/100 yards
• Tube Size - 1 inch
• Turret Style - Capped
• Adjustment Graduation - 1/4 MOA
• Travel per Rotation - 15 MOA
• Max Elevation Adjustment - 70 MOA
• Max Windage Adjustment - 70 MOA
• Parallax Setting - 100 yards
• Length - 11.7 inches
• Weight - 14.4 ounces
