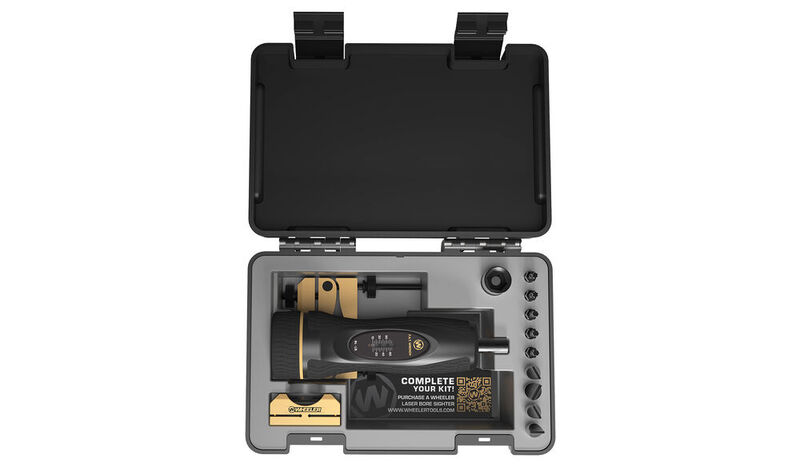

The Wheeler Essential Scope Mounting Kit (Model WH-ESMK) is a mechanical gunsmithing toolset designed to install, level, and torque riflescopes onto long guns without crushing optic tubes, stripping ring fasteners, or damaging base screws. The kit combines the Wheeler F.A.T. Wrench (Firearm Accurizing Torque hand wrench) with the Professional Reticle Leveling System and a corrosion-resistant driver bit set. It allows shooters to mount optics across standard long gun platforms—including Picatinny, Weaver, Talley, Leupold, and dovetail mounting systems—using completely manual operation that requires no batteries or external power.

Key Features

• Precision Torque Control: The included F.A.T. Wrench limits applied force from 10 to 65 inch-pounds in 1 in-lb increments, preventing overtightening or undertightening on base and ring screws.

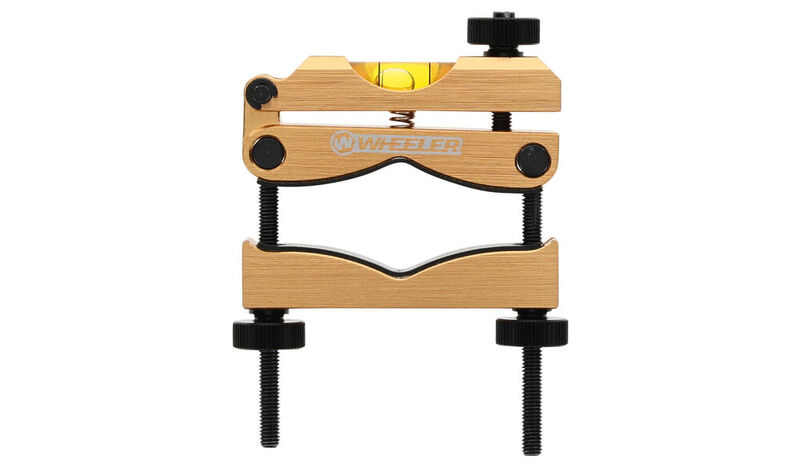

• Anti-Cant Reticle Leveling: Features a barrel clamp level and a reference level that calibrate off the firearm's barrel and scope turret cap, ensuring horizontal and vertical crosshair alignment to minimise long-range tracking errors.
• Broad Optic Tube Compatibility: Works with 1-inch, 30mm, 34mm, 35mm, and 36mm scope tubes because the leveling system references the flat turret cap rather than clamping around the tube body.
• Corrosion-Resistant Bit Set: Includes common firearm driver bits (Torx, hex, and slotted) finished with a black phosphate coating to resist wear and corrosion.

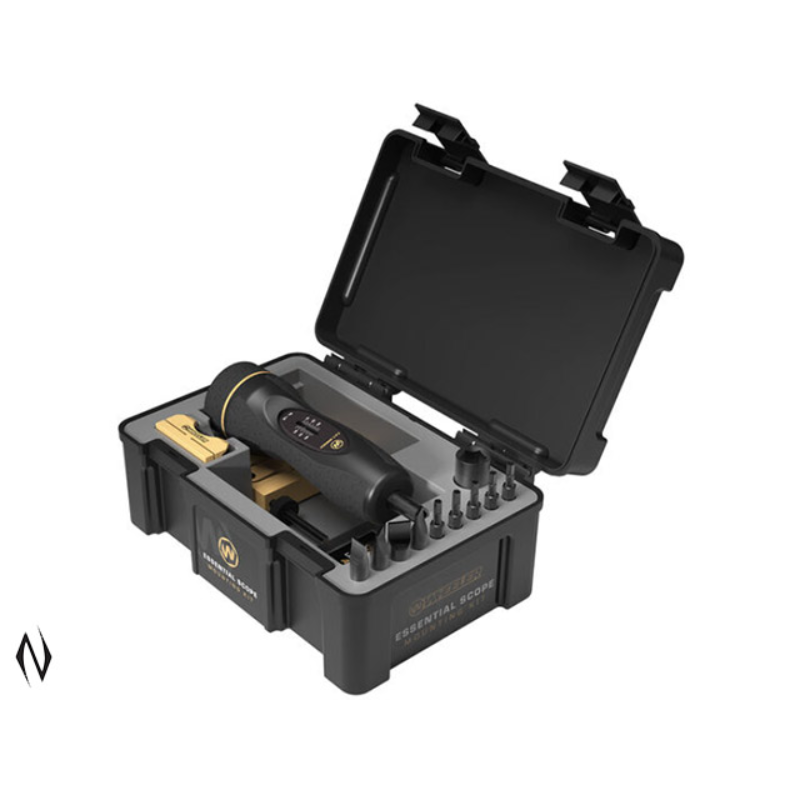

• Modular Storage: Housed in a latching, stackable hard molded case with a total package weight of approximately 0.7 to 1.0 kg for benchtop or field kit organisation.

Product Specifications

• Category: Riflescope mounting and leveling kit
• Torque Adjustment Range: 10 to 65 in-lbs
• Torque Increments: 1 in-lb
• Torque Accuracy: +/- 2 in-lbs
• Power Source: Manual / mechanical
• Scope Tube Diameter Compatibility: 1-inch, 30mm, 34mm, 35mm, 36mm
• Package Weight: Approximately 0.7–1.0 kg
• Case Type: Latching, stackable hard case

Who is the Wheeler Essential Scope Mounting Kit for?

• Home gunsmiths installing optics on hunting rifles — relies on the F.A.T. Wrench's 10 to 65 in-lb torque range (adjustable in 1 in-lb increments) to securely fasten optic rings and bases to exact manufacturer torque ratings without stripping screw threads.
• Target shooters setting up precision long-range rifles — uses the Professional Reticle Leveling System combined with the +/- 2 in-lbs torque accuracy of this riflescope mounting kit to eliminate reticle cant and maintain tracking true to the bore across 1-inch to 36mm optic tubes.

Less suitable for: Fasteners requiring torque over 65 in-lbs (such as AR-15 receiver extensions, barrel nuts, or heavy chassis crossbolts), which exceed this toolset's capacity and require a dedicated heavy-duty armorer's torque wrench.
