Will the brass and polymer punches in the Wheeler WH-HPS set damage my firearm's blued or Cerakoted finish?

No, the set is specifically engineered for non-marring gunsmithing. It includes 8 brass punches and 2 plastic/polymer punches designed to absorb impact and prevent scratching or marring delicate blued, anodised, or Cerakoted firearm finishes when driving out cross pins or adjusting sights.

Can I use the solid flat-face punches in this set to install or remove hollow roll pins on an AR-15 platform?

While the set is universal for solid cross pins, hollow roll pins and spring pins require dedicated roll pin punches with hemispherical ball tips rather than the solid flat-face punches included here. For comprehensive AR-15 armorer work involving roll pins, we recommend pairing this set with the Wheeler Ultra AR Armourers Kit.

Does this manual hand tool set require any specific electrical or regulatory compliance for use in Australia?

No, as a 100% mechanical and manual hand tool set, it does not require mains power, 240V compatibility, SAA certification, or RCM compliance markings. It is completely safe and legal for unrestricted use across all Australian states and territories on your workbench or in outback field kits.

What is included in the 15-piece configuration and how is it stored?

The set includes a combination hammer with interchangeable brass and nylon/polymer face inserts, 8 brass punches ranging from 1/8" to 5/16", 4 steel punches (two 1/16" and two 3/32"), and 2 plastic/polymer punches (15/64" and 3/8"). All 15 pieces are neatly organised and secured in a durable, blow-moulded plastic latching case measuring approximately 9.75 inches by 5.25 inches.

Gunsmithing Tool Set - Wheeler WH-HPS

The Wheeler Hammer & Punch Set (MPN: 951900) is a dedicated 15-piece manual gunsmithing tool kit designed for driving, seating, and removing solid firearm pins, as well as performing sight drift adjustments. Built to prevent marring on blued, anodised, and Cerakoted finishes, the set equips armorers with a multi-face brass and nylon hammer alongside flat-faced punches constructed from brass, steel, and polymer. The entire kit packs into a fitted, blow-moulded latching storage case measuring 24.8 cm × 13.3 cm × 5.1 cm (9.75" L × 5.25" W × 2.0" D) with a total package weight of approximately 0.90 kg (1.98 lbs).

Key Features

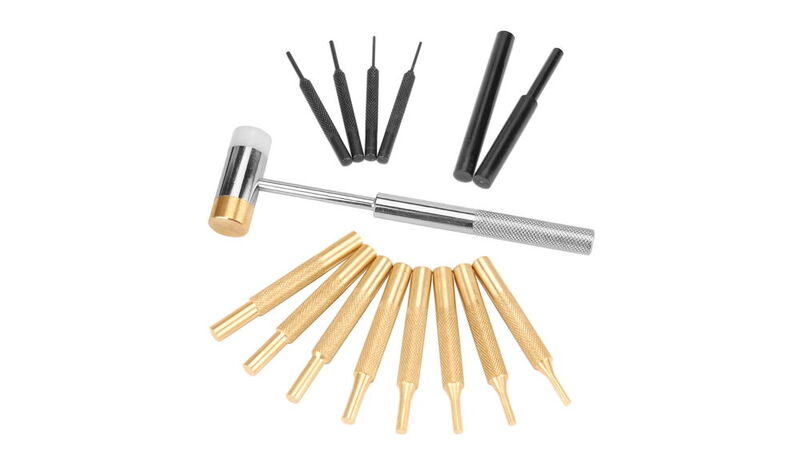

Multi-Material 15-Piece Set: Includes 8 brass punches, 4 hardened steel punches, 2 polymer punches, and 1 double-faced combination hammer.
Non-Marring Combination Hammer: Equipped with interchangeable brass and nylon/polymer face inserts to transfer driving force without mushrooming pin heads or scratching firearm receivers.
Broad Imperial Punch Selection: Features brass punches ranging from 1/8" to 5/16", steel micro-punches down to 1/16", and polymer drift punches up to 3/8" for sight dovetail adjustments and trigger pack servicing.

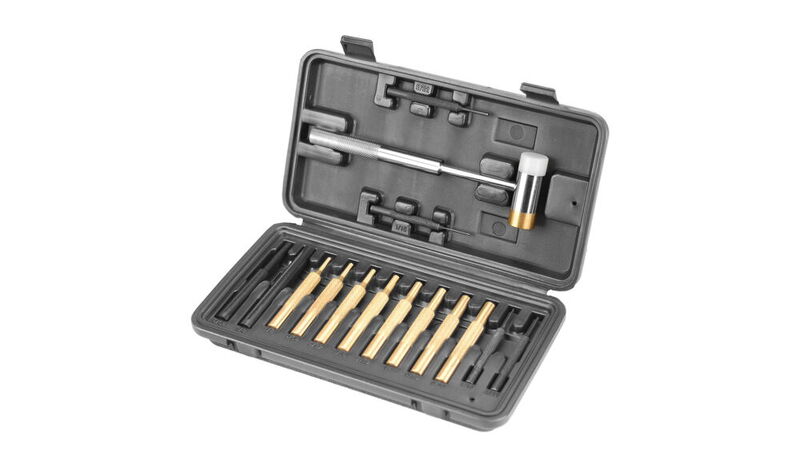

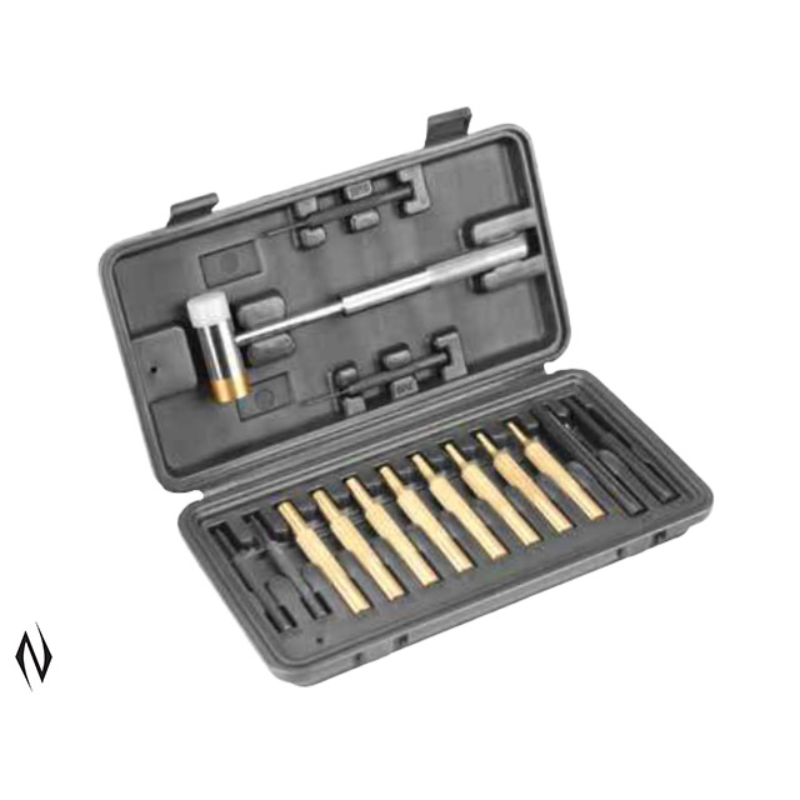

Moulded Storage Case: Custom latching case keeps all 14 punches and the combination hammer organised for workshop benches and range bags.

Specifications

Product Type: Manual gunsmithing punch and hammer set
Manufacturer Part Number (MPN): 951900
Total Piece Count: 15 pieces
Hammer Configuration: Double-faced with non-marring brass and nylon inserts
Brass Punch Sizes (8): 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 9/32", and 5/16"
Steel Punch Sizes (4): Two 1/16" and two 3/32"
Plastic/Polymer Punch Sizes (2): 15/64" and 3/8"
Case Dimensions: 24.8 cm × 13.3 cm × 5.1 cm (9.75" L × 5.25" W × 2.0" D)
Total Package Weight: 0.90 kg (1.98 lbs)
Tool Hand Weight: Approximately 0.4 kg

Who is the Wheeler Hammer & Punch Set for?

Firearm owners performing home maintenance on bolt-action and semi-automatic rifles — utilizes the 4 steel punches (including paired 1/16" and 3/32" sizes) and 8 brass punches to drive out solid pivot and cross pins without damaging factory metal finishes, all contained in a compact 1.98 lbs field kit.
Pistol and shotgun armorers requiring non-marring brass and polymer punch tips — relies on the 2 plastic/polymer punches (sized up to 3/8") and 8 brass punches to adjust delicate dovetail sights and remove trigger group pins without marring finished surfaces.

Less suitable for: Driving hollow roll pins or spring pins, which require dedicated hemispherical ball-tip roll pin punches to prevent pin deformation, or removing heavily rusted, frozen hardware that demands hardened steel drift punches or hydraulic arbor presses.

SKU	WE40243LP
Model #	WH-HPS
Brand	Wheeler
Shipping Weight	1.0000kg
