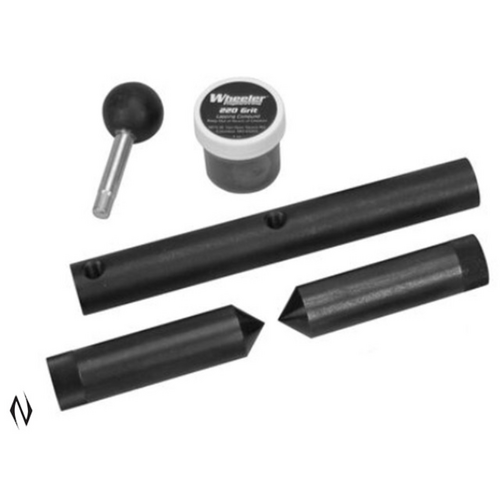

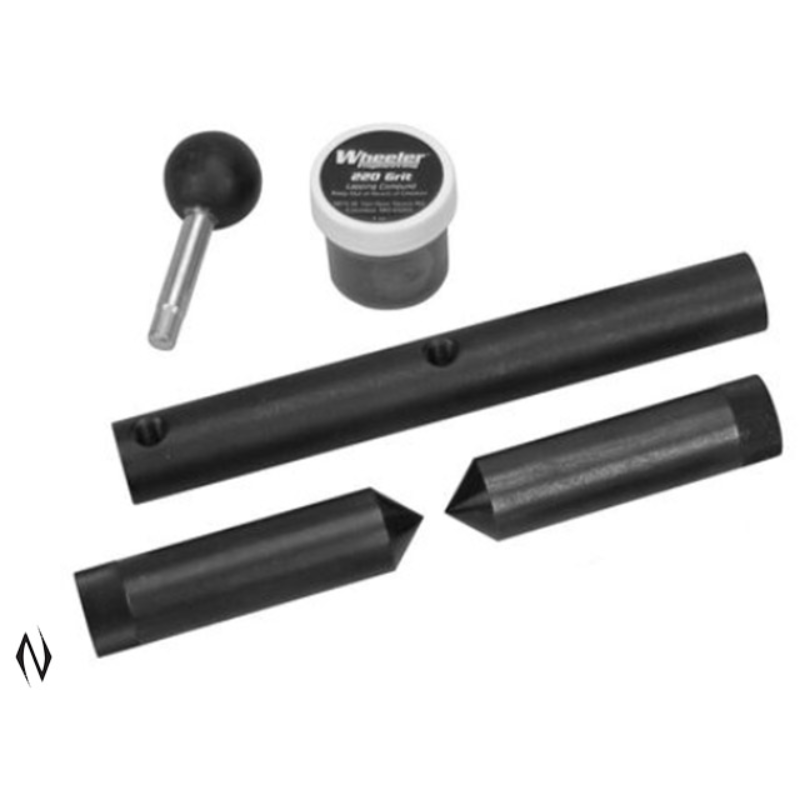

The Wheeler Scope Ring Alignment & Lapping Kit 34mm (MPN 1081035 / 204061) is a dedicated gunsmithing hand-tool kit designed to diagnose ring misalignment and hone internal ring surfaces for 34mm riflescope main tubes. Precision-machined solid steel alignment and lapping bars ensure split scope rings achieve maximum metal-to-metal contact, preventing scope tube pinching, crimping, reticle binding, and optic slippage under heavy recoil.

Key Features

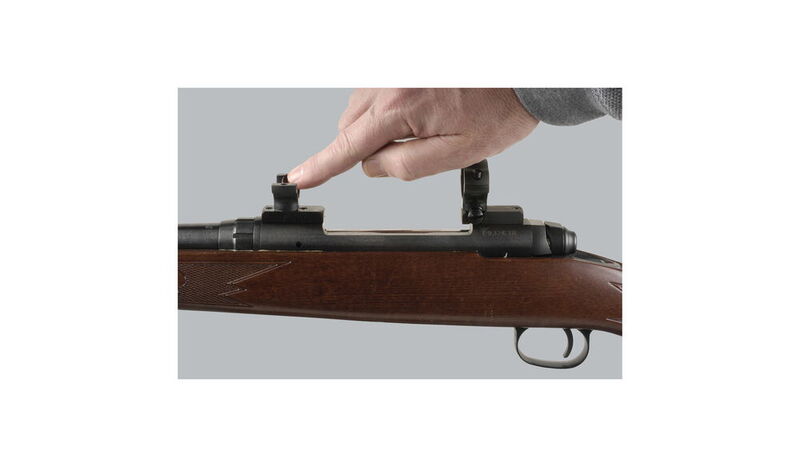

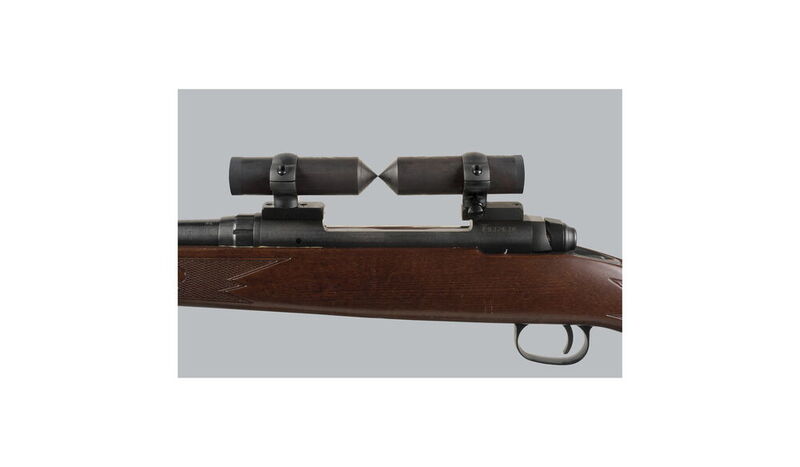

• Alignment Diagnosis: Two 34mm precision-machined pointed alignment bars clamp into front and rear split rings to visually detect vertical, horizontal, or pitch misalignment prior to optic installation.

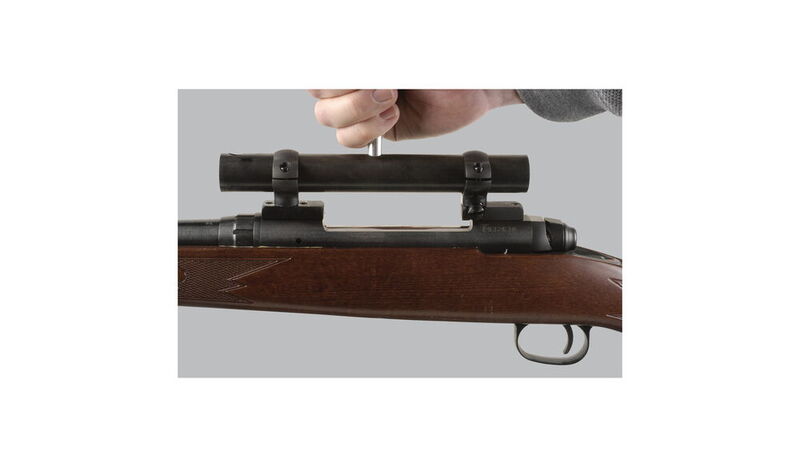

• Precision Ring Trueing: A solid steel 34mm cylindrical lapping bar with an attachable handle works with abrasive paste to remove manufacturing high spots, machine marks, and minor base cant.
• Abrasive Honing: Includes a container of 220-grit silicon carbide lapping compound to smooth ring interiors until 60% to 80% surface contact is achieved.
• Manual Workshop Operation: Entirely mechanical solid-steel tool system requiring no electrical power or mains connection.

Product Specifications

• Scope Tube Compatibility: 34mm (1.34 in) main tubes only
• Lapping Bar Diameter: 34 mm
• Lapping Compound: 220-grit silicon carbide
• Construction Material: Solid steel
• Total Package Weight: Approximately 1.5 kg to 1.8 kg
• Power Requirements: Manual operation (none)
• Typical Honing Duration: 15 to 30 minutes per ring set

Who is the Wheeler Scope Ring Alignment & Lapping Kit 34mm for?

• Precision long-range tactical rifle builders — Requires the 34mm diameter alignment and lapping bars to eliminate receiver-to-base alignment errors and prevent scope tube pinching on large-diameter tactical optic setups.
• Custom gunsmiths setting up heavy recoiling competition rifles — Utilises the supplied 220-grit silicon carbide lapping compound and 34mm steel lapping bar to expand metal-to-metal ring contact to 60%–80%, stopping optic slippage under severe recoil impulses.

Less suitable for: Optics with 1-inch (25.4mm), 30mm, 35mm, or 36mm main tube diameters (which require diameter-specific lapping kits), one-piece monolithic CNC unimounts machined as a single continuous block, or scope rings fitted with self-aligning synthetic inserts.
