How does the four-point clamping system protect my pistol slide during sight adjustments?

The Wheeler Universal Handgun Sight Tool uses four independent clamping posts to fully capture and immobilise semi-automatic pistol slides from multiple angles. This design distributes pressure evenly to prevent torque, twisting, or structural deformation when applying high force to stubborn dovetail sights.

Is this tool compatible with all types of handgun sights, such as Glock screw-in front posts or revolvers?

No, this tool is strictly designed for dovetail-mounted front and rear sights on semi-automatic pistols. It is incompatible with screw-in front sights that require a 3/16-inch hex nut driver, as well as revolver frames, pinned sights, or staked front sights.

Does the Wheeler Universal Handgun Sight Tool require any electrical compliance or battery power in Australia?

No electrical compliance or SAA/RCM certification is required because the tool features a fully manual, mechanical screw-drive operation with zero electronic components. It weighs approximately 1.8 to 2.0 kg and can be securely locked into a workbench vise via integrated base recesses for maximum workshop stability.

Handgun Sight Tool - Wheeler WH-UHST

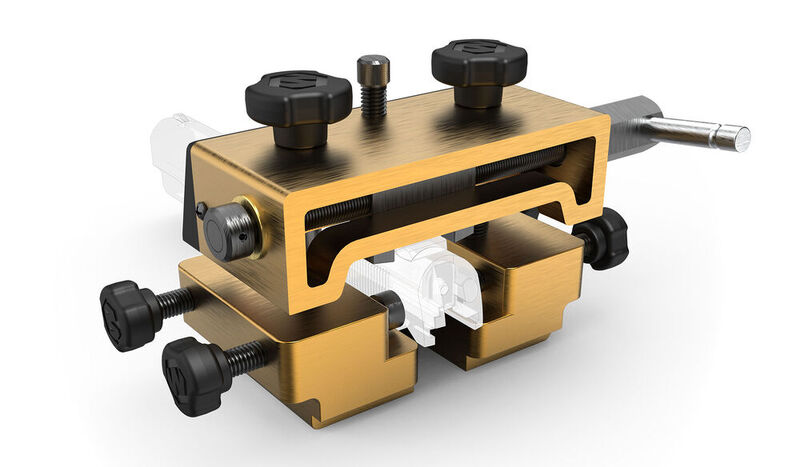

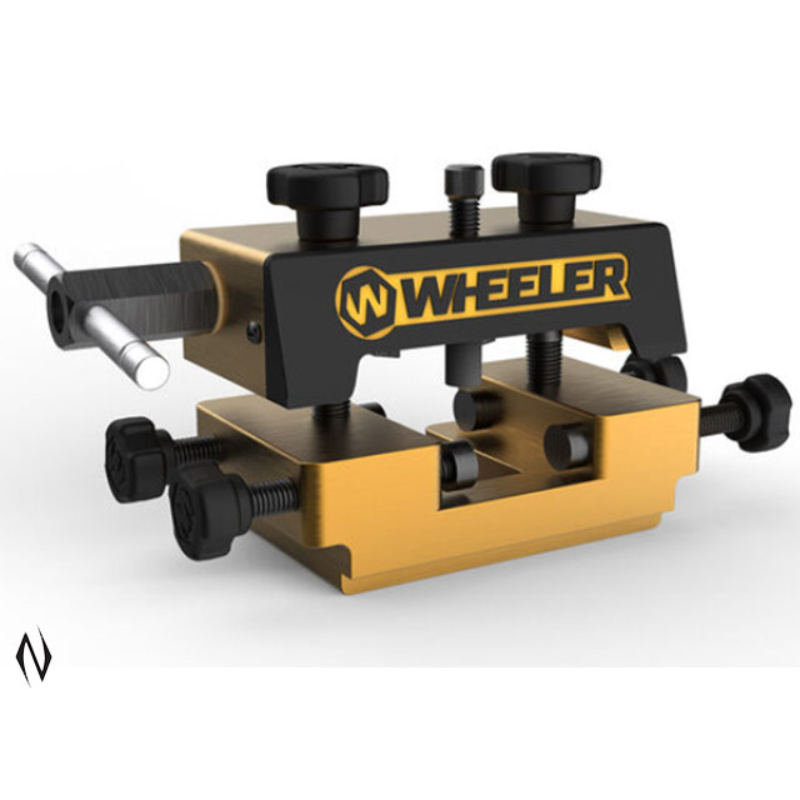

The Wheeler Universal Handgun Sight Tool (MPN: 1237378) is a dedicated workshop sight pusher engineered to install, remove, and adjust dovetail-mounted front and rear sights on semi-automatic pistol slides. Designed to eliminate the risk of slide distortion or surface marking associated with traditional hammers and drift punches, this manual tool utilises a heavy-duty mechanical screw-drive system to apply smooth, controlled lateral force. It accommodates standard, angled, flat-sided, and suppressor-height sight profiles across subcompact, compact, full-size, and competition pistol slides.

Key Features

Four-Point Slide Capture: Employs four independent clamping posts that fully immobilise the pistol slide along its height and width, preventing torque, twisting, and frame deformation under high drive loads.
Mechanical Screw-Drive: Features a large drive knob and a two-post screw-driven pusher assembly that delivers precise, incremental mechanical advantage for drifting stiff dovetail sights.
Bench Vise Compatibility: Integrated machined recesses in the base allow the unit to be clamped directly into a workshop bench vise for added stability.
Durable Construction: Built from a machined anodised aluminium body with heavy-duty steel drive and clamping hardware.
Fully Manual Operation: Operates entirely via mechanical leverage, requiring no batteries or electrical power supply.

Specifications

Product Name: Wheeler Universal Handgun Sight Tool
Manufacturer Part Number (MPN): 1237378
Weight: Approximately 1.8 kg to 2.0 kg (~4 to 4.5 lbs)
Package Dimensions: Approximately 21.6 cm × 13.3 cm × 13.0 cm
Construction: Machined aluminium body with steel clamping and drive components
Operation Mode: Manual screw-drive mechanism
Sight Compatibility: Dovetail-mounted front and rear sights (standard, angled, flat, and suppressor heights)
Slide Compatibility: Semi-automatic pistol slides (Glock, SIG Sauer, Smith & Wesson, Springfield Armory, CZ, 1911, and similar platforms)

Who is the Wheeler Universal Handgun Sight Tool for?

Licensed handgun owners — requiring controlled lateral force to perform windage adjustments or swap out aftermarket night sights and fibre optics on their pistols without hammering, using a manual screw-drive sight pusher tool that delivers precise alignment.
Firearms armorers — needing a dedicated 1.8 to 2.0 kg bench-compatible sight tool equipped with four independent clamping posts to securely lock varied semi-automatic slide profiles during repetitive workshop maintenance.

Less suitable for: Handguns utilizing non-dovetail sighting systems, including slides with screw-in front posts requiring a dedicated 3/16-inch hex nut driver, revolver frames, pinned sights, or staked front blades requiring staking anvils, as well as rifle receivers and shotgun ribs.

SKU	WE40246LP
Model #	WH-UHST
Brand	Wheeler
Shipping Weight	1.0000kg
