ATN Mars LT is a series of lightweight and affordable thermal imaging sights that enable shooting at short and medium distances. All models in the Mars LT range are designed to be friendly to novice shooters looking for easy-to-use equipment with outstanding performance.

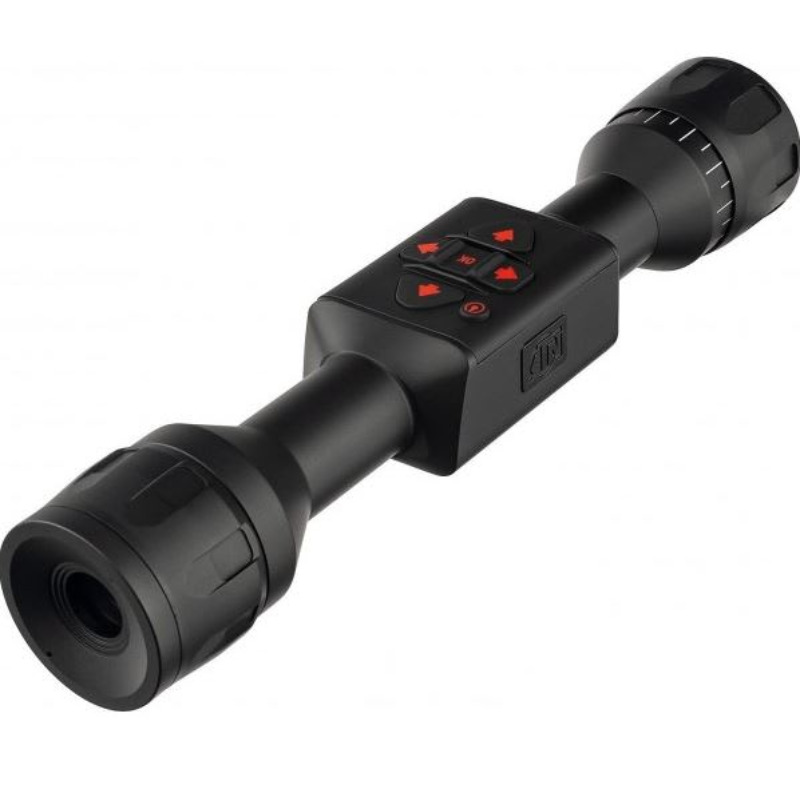

The heart of the ATN Mars LT 160 3-6x thermal imaging sight system is a low-noise sensor with a resolution of 160 x 120 px, the refresh rate of which is 60 Hz, i.e. 10 Hz more than in most thermal imagers available on the market. The recorded image is sent to the user via the display with HD resolution (1280 x 720 px). The electronics used in this viewfinder has been designed in such a way as to ensure the lowest possible energy consumption while maintaining maximum functionality, thanks to which a fully charged battery allows for over 10 hours of continuous operation of the device.

The optoelectronic system is closed in a reinforced, aluminum housing, resistant to unfavorable weather conditions. Moreover, the tube has been adapted for mounting with the use of standard mounting rings with a diameter of 30 mm.

Attention! The thermal imaging sight should not be directed towards strong sources of heat and radiation (sun, lasers, etc.), which may adversely affect the efficiency of the sensor or cause its irreversible damage. The given values of the detection range, recognition and identification of a human were adopted according to the following criteria: detection - 2 px / m, recognition - 8 px / m, identification - 16 px / m.

KEY FEATURES

• sensor size: 160 x 120 px

• diameter of a single pixel: 17 µm

• refresh rate: 60 Hz

• image processing chip: ATN Obsidian Core LT

• lens: 19 mm

• magnification: 3 ÷ 6x

• field of view: 11 x 8.3 °

• range of detection / recognition / human identification: 475 m / 240 m / 160 m

• diopter adjustment: yes

• focus adjustment: manual

• offset of the exit pupil: 90 mm

• display: 1280 x 720 px (HD)

• possibility of choosing a color palette: yes

• color palettes: white hot, black hot

• possibility to select the reticle: yes

• one shot reset: yes

• 3D accelerometer: yes

• battery life:> 10 hours

• charging connector: USB-C

• water resistance: yes, structure resistant to weather conditions

• Body material: hardened aluminum

• diameter of the tube mounting rings: 30 mm (not included)

• operating temperature range: -28 ÷ 48 ° C

• dimensions: 292 x 56 x 55 mm

• weight: 650 g
