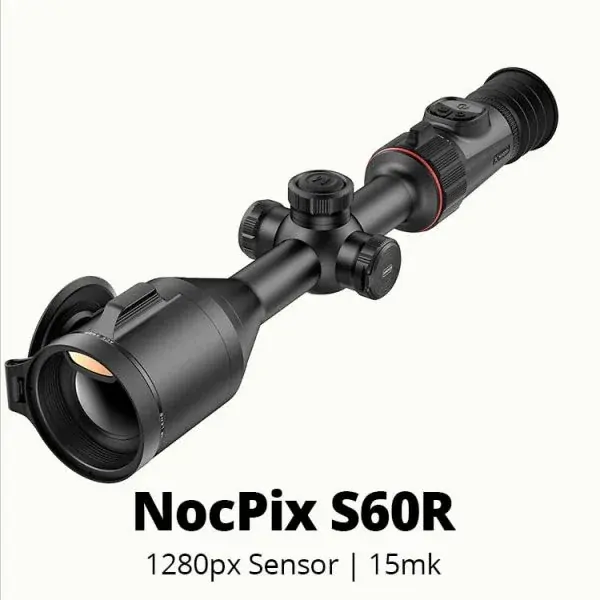

The ACE S60R Thermal Riflescope represents the pinnacle of modern hunting optics. Designed for professional hunters, it combines cutting-edge imaging technology, long-range precision, and rugged durability for exceptional performance in all outdoor environments.

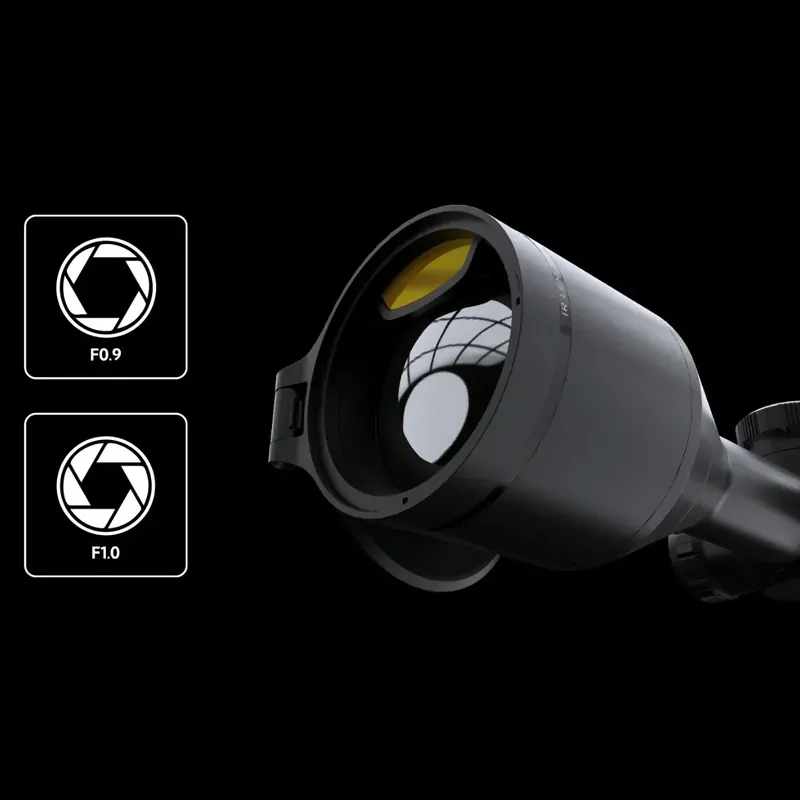

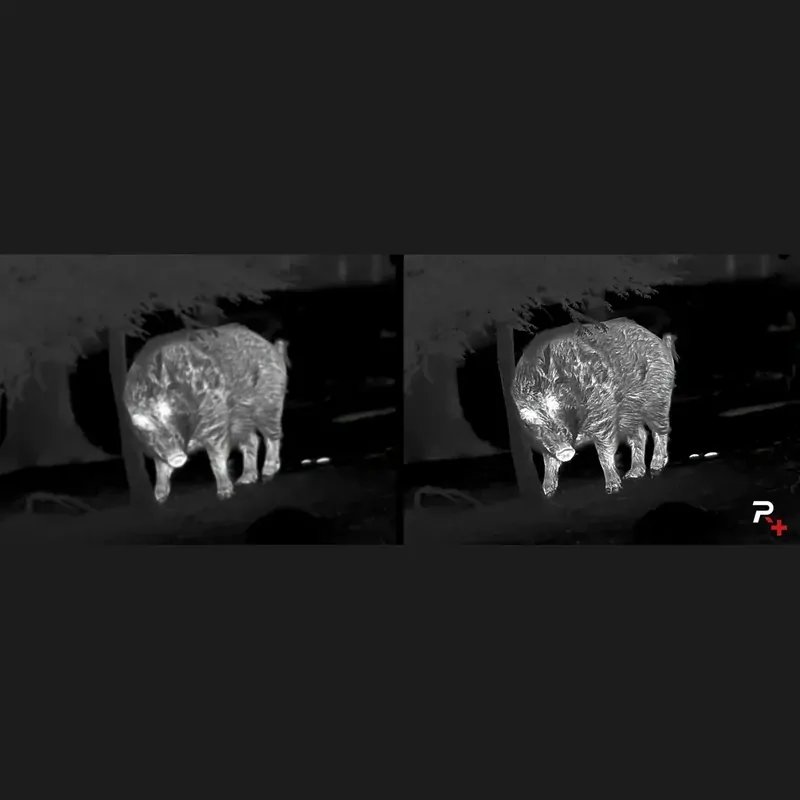

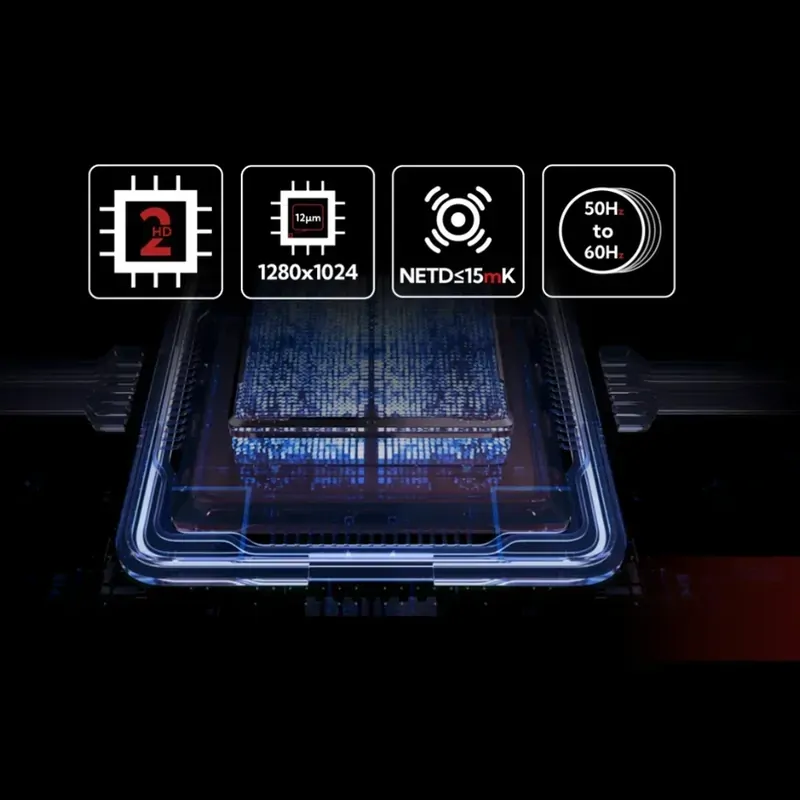

At its core is a 1280×1024 @12μm Gen-2 HD thermal sensor with ≤20mK NETD sensitivity and a 60Hz frame rate, ensuring ultra-clear, smooth imaging and reliable detection of even the slightest temperature differences. The large 60mm F0.9 objective lens and advanced Reality+ imaging algorithm deliver superior brightness and detail clarity in every shot.

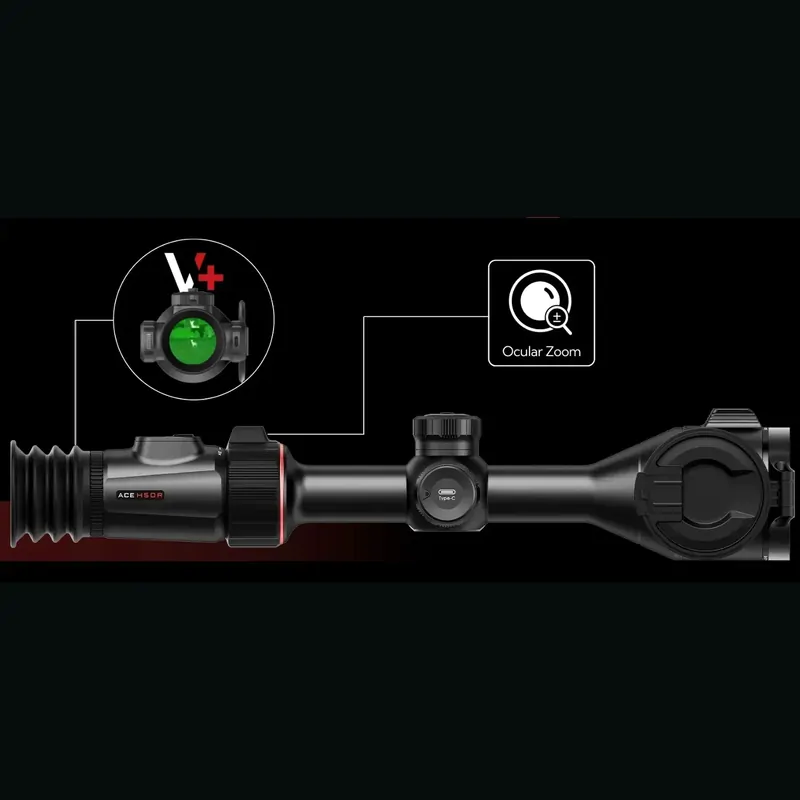

The ACE S60R offers an impressive detection range of up to 2800 meters (human-sized target), while the integrated 1200m laser rangefinder ensures precise distance measurement. Its Vision+ system with a 1.03-inch 2560×2560 AMOLED round display and 1–3× ocular optical zoom eliminates digital distortion, providing a natural, immersive viewing experience.

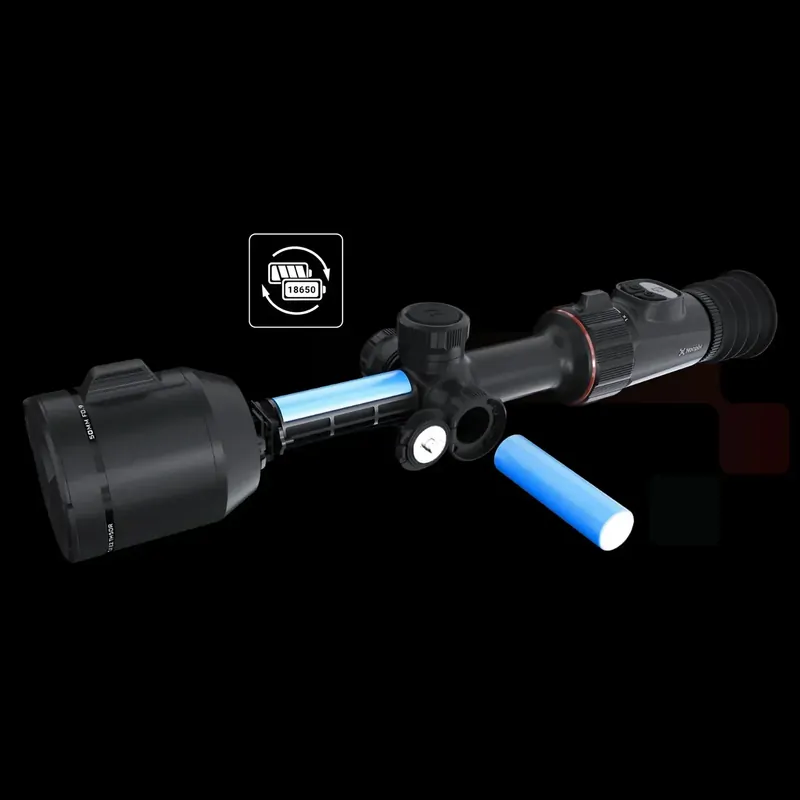

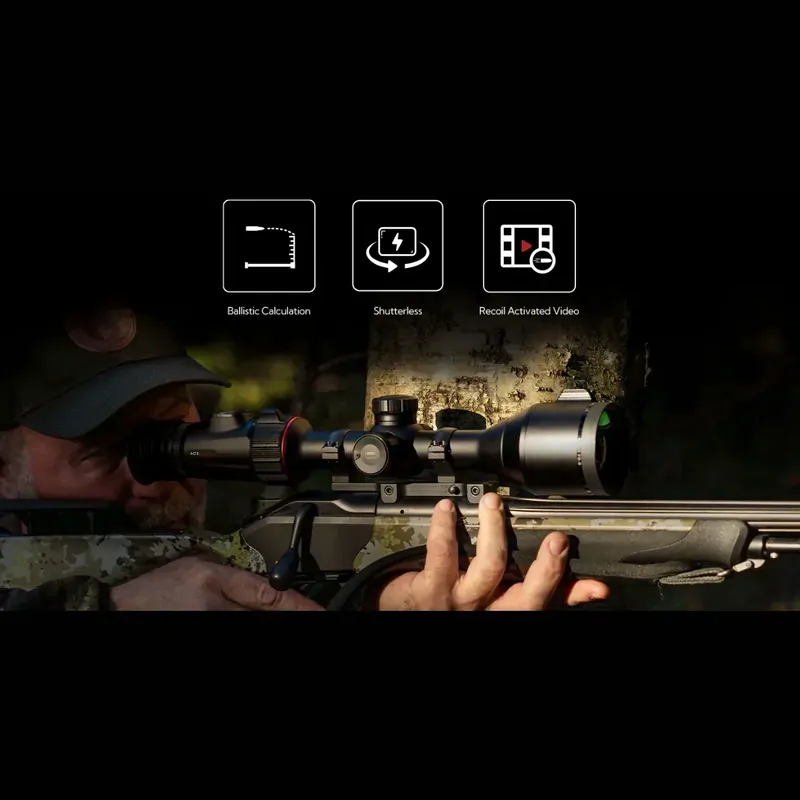

Built for endurance, the ACE S60R features a dual-battery system (4000mAh built-in + replaceable 18650) for up to 7 hours of operation, along with advanced hunting functions such as ballistic calculations, recoil-activated video recording, photo/audio capture, and shutterless calibration.

Encased in a high-strength aluminum alloy, tested for extreme impact resistance, and weighing only 1120g, the ACE S60R offers unmatched durability and portability. With integrated Wi-Fi, app control, 64GB internal memory, and direct video playback, this riflescope is a complete solution for professional hunters seeking precision, clarity, and reliability in the field.



KEY FEATURES



Detector & Optics

• Thermal Sensor: 1280×1024 @12μm Gen-2 HD
• NETD: ≤20mK
• Frame Rate: 60Hz
• Objective Lens: 60mm F0.9
• Magnification: 2×–18×
• Ocular Optical Zoom: 1×–3× (true optical, distortion-free)
• Field of View: 8.8° × 7.0° / 15m × 12m @100m
• Detection Range: 2800m (human-size target)
• Diopter Adjustment: -5D to +5D
• Exit Pupil Diameter: 8mm
• Eye Relief: 50mm

Display & Imaging

• Display Type: 1.03-inch round AMOLED
• Display Resolution: 2560×2560
• Image Processing: Reality+ algorithm
• Video/Photo/Audio Recording: Yes
• Internal Memory: 64GB
• Wi-Fi & App Support: Yes

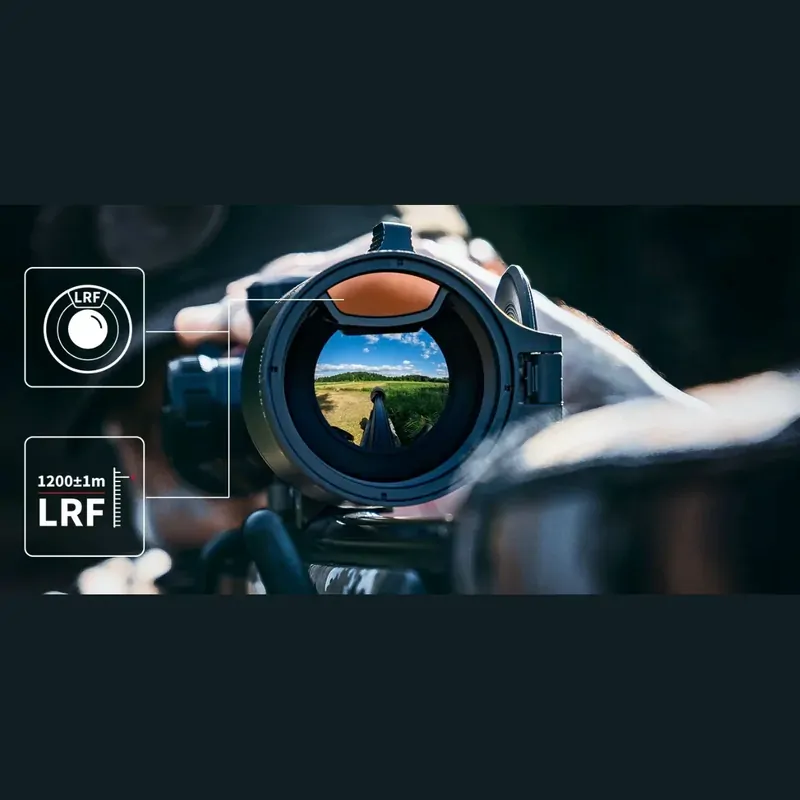

Laser Rangefinder (LRF)

• Max Ranging Distance: 1200m
• Ballistic Calculation: Supported

Power & Battery

• Battery System: Built-in 4000mAh + replaceable 18650
• Max Operating Time: Up to 7 hours (at 22℃)

Physical & Durability

• Dimensions: 365 × 90 × 68 mm
• Weight: 1120g (with battery)
• Material: High-strength aluminum alloy
• Durability: Rigorous impact resistance tested
