Weatherby Vanguard ( uses the Howa 1500 actions): Mount fits right hand firearms. Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both use a 7/64″ Allen wrench. Short action – Outside to outside of rings is 4.17″. Standard rings are .63″ wide and have 2 ring screws per ring. Tactical rings are .80″ wide and have 4 ring screws per ring. Hole to hole spacing dimensions are .86″, 3.88″, .60″. Height of mounts from top of receiver to centerline of scope tube is – low .98″, medium 1.11″, and high 1.23″. Long action – Outside to outside of rings is 4.61″. Standard rings are .63″ wide and have 2 ring screws per ring. Tactical rings are .80″ wide and have 4 ring screws per ring. Hole to hole spacing dimensions are .86″, 4.48″, .60″. Height of mounts from top of receiver to centerline of scope tube is – low .98″, medium 1.11″, and high 1.23″.

KEY FEATURES

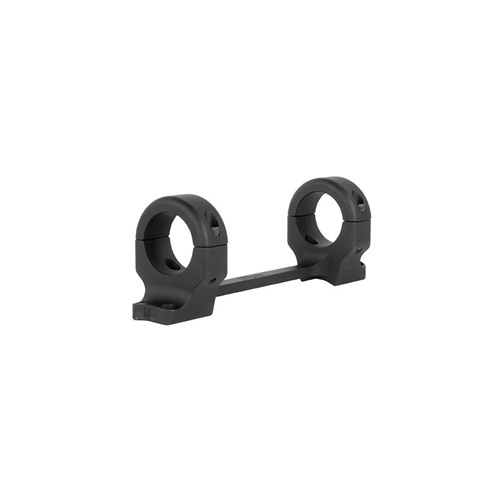

• Model 17300
• Fits Howa 1500 and Weatherby Van Guard rifles
• 30MM Scope tubes
• Left or right hand action
• Black finish
• Short action
• High mount
• Game Reaper mounts are precision machined from a solid block of top grade billet aluminum at Certified Machining, Inc
• located in Sanford, North Carolina
• Aluminum absorbs shock better than steel
• Game Reaper scope mounts weigh about 1/3 the weight of other one-piece base and ring mounts
• Game Reaper scope mounts bolt easily to all four holes on your firearm
• Our Rigid design has no moveable parts between the firearm and the scope
• Extra lightweight with a super strong mount
• Game Reaper scope mounts align with the receiver to ensure a more pleasing look than other base and ring mounts
• No extrusions
• Each Game Reaper scope mount is precision machined from start to finish
• Has four times the amount of threads than other mounts
• Be assured that it will be held firmly in place
• We include socket head cap screws to secure to your mount to your firearm
• Game Reaper scope mounts are custom made to fit each type of firearm
• Game Reaper scope mounts are anodized to last the life of your firearm
• One piece ring and mount eliminates misaligned scope rings and scope damage
• Steel can shrink or expand up to two and a half times more in temperature variations than aluminum
• Mount will not rust.
