Will these high-profile rings clear a 50mm objective lens on my bolt-action hunting rifle?

Yes, the high-profile design of the DS302B is specifically engineered to accommodate riflescopes with larger objective lenses ranging from 44mm to 50mm. This extra elevation is also ideal for rifles requiring additional hammer spur clearance on the action during outback hunts.

What kind of rail interface do these Durasight rings require?

These rings are built to mount securely onto standard Weaver-style cross-slot rails and bases. They utilise a vertical split design clamped down by heavy-duty Grade 8 Torx screws to maintain your zero under heavy recoil.

Are these rings suitable for a 30mm scope tube?

No, the DS302B model is strictly configured for 1-inch (25.4 mm) main tube riflescopes. If you are running a 30mm or 34mm optic, you will need to select dedicated rings sized for those specific tube diameters.

Do I need any special tools to mount these rings in the field?

The rings use Grade 8 Torx fasteners, and a matching Torx wrench is typically included in the package for straightforward installation. Because they feature fixed screw clamping rather than a quick-detach mechanism, they are designed for a semi-permanent, rock-solid zero rather than toolless field removal.

1 Inch Scope Rings - Durasight DS302B

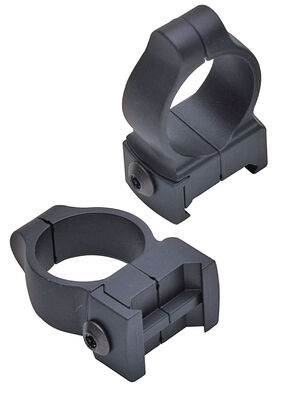

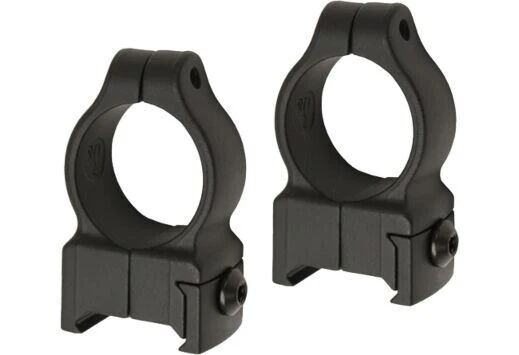

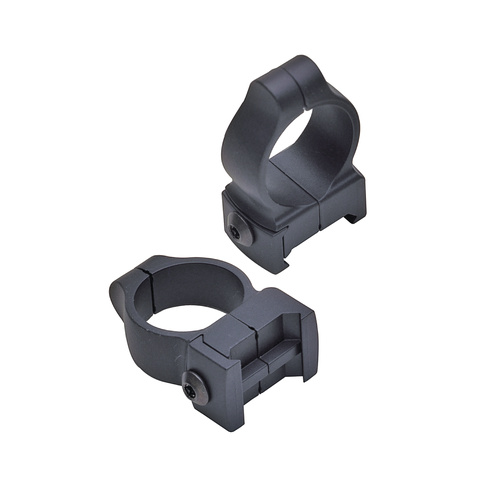

The Durasight Z-2 Alloy Vertical Split Weaver Scope Rings - High Black (DS302B) provide a rigid mounting solution for securing 1-inch riflescopes to Weaver-style cross-slot rails and bases. Manufactured from proprietary Z-2 zinc alloy, these rings are engineered to be 50% stronger than standard aluminium while maintaining a lower weight profile than steel. The high-profile vertical split construction uses heavy-duty Grade 8 Torx fasteners to clamp directly around the optic tube and anchor into the base, delivering reliable zero retention under the recoil of magnum hunting calibres and heavy muzzleloaders.

Key Features

Vertical Split Clamping: Ring halves split vertically to provide uniform clamping pressure around the 1-inch main tube while securing directly into Weaver-style cross-slots.
Z-2 Zinc Alloy Construction: Built from proprietary Z-2 alloy material rated 50% stronger than standard aluminium hardware.
Grade 8 Torx Hardware: Utilises high-tensile Grade 8 Torx screws to prevent stripping during installation and withstand heavy hunting recoil.
High Profile Clearance: Designed to provide the necessary elevation for larger objective lenses and rifles with external hammer spurs.
Matte Black Finish: Non-reflective black coating suitable for field and hunting environments.

Product Specifications

Optic Tube Diameter: 1 inch (25.4 mm)
Ring Height Profile: High
Mounting Interface: Standard Weaver-style cross-slot rails and bases
Material: Z-2 zinc alloy
Fasteners: Grade 8 Torx screws
Finish: Matte Black
Model Number: DS302B

Who is the Durasight Z-2 Alloy Vertical Split Weaver Scope Rings - High Black for?

Hunters and sport shooters with large-objective optics — Requires high-profile vertical split scope rings to clear 44 mm to 50 mm objective lenses on bolt-action rifles and muzzleloaders while securing a standard 1-inch (25.4 mm) main tube.
Shooters using external hammer rifles — Relies on the elevated High ring height to ensure adequate clearance for cocking external hammer spurs beneath a 1-inch (25.4 mm) riflescope tube mounted to Weaver-style bases.

Less suitable for: Optics with 30 mm or 34 mm main tubes, which require dedicated 30 mm or 34 mm rings; shooters needing toolless, rapid optic removal and return-to-zero, who should select a quick-detach (QD) ring system.

SKU	DUR40813LP
Model #	DS302B
Brand	Durasight
Shipping Weight	1.0000kg
