Will these scope rings fit my 30 mm rifle scope tube?

No, the Durasight DS403B model is strictly engineered for 1-inch (25.4 mm) scope main tubes and is incompatible with 30 mm or 34 mm optics. You must verify your scope tube diameter before purchasing to ensure a proper fit.

What is the maximum objective lens size these high rings can clear?

These high-profile rings are optimized to clear objective lenses up to 50 mm in diameter. If your rifle scope exceeds a 50 mm objective bell or features thick flip-up lens covers, it may contact the barrel and require taller mounts.

How do the Quick-Detach levers perform during transport in the Australian outback?

The integrated Quick-Detach levers allow you to remove and re-install your optic tool-free in the field while maintaining reliable return-to-zero capabilities. Constructed from proprietary Z-2 zinc-aluminum alloy, they provide 50% greater tensile strength than standard aluminum to withstand rugged multi-day bush hunts without shifting zero.

What torque limit should I use when tightening the ring cap screws?

You should apply a maximum torque of up to 18 in-lbs on the Grade 8 Torx ring cap screws. Exceeding this recommended threshold risks crushing your scope tube or stripping the internal threads.

Are these rings compatible with Picatinny rails as well as Weaver bases?

These rings are specifically designed for standard Weaver-style mounting bases and cross-slots. While Weaver cross-bolts can sometimes physically fit MIL-STD-1913 Picatinny rails, dedicated Picatinny rings are generally recommended for heavy-duty tactical setups.

Scope Rings - Durasight DS403B

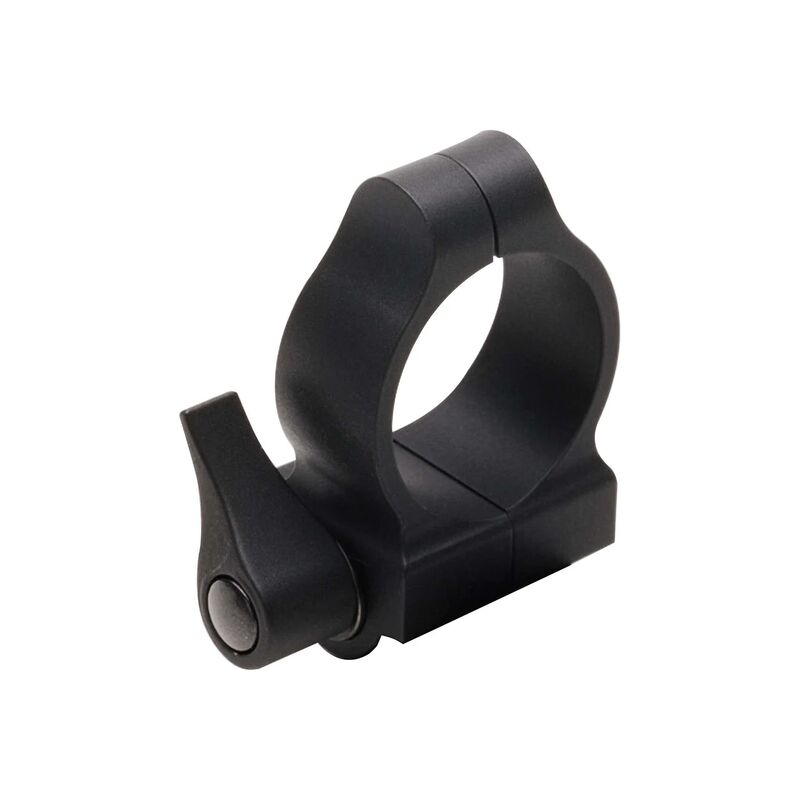

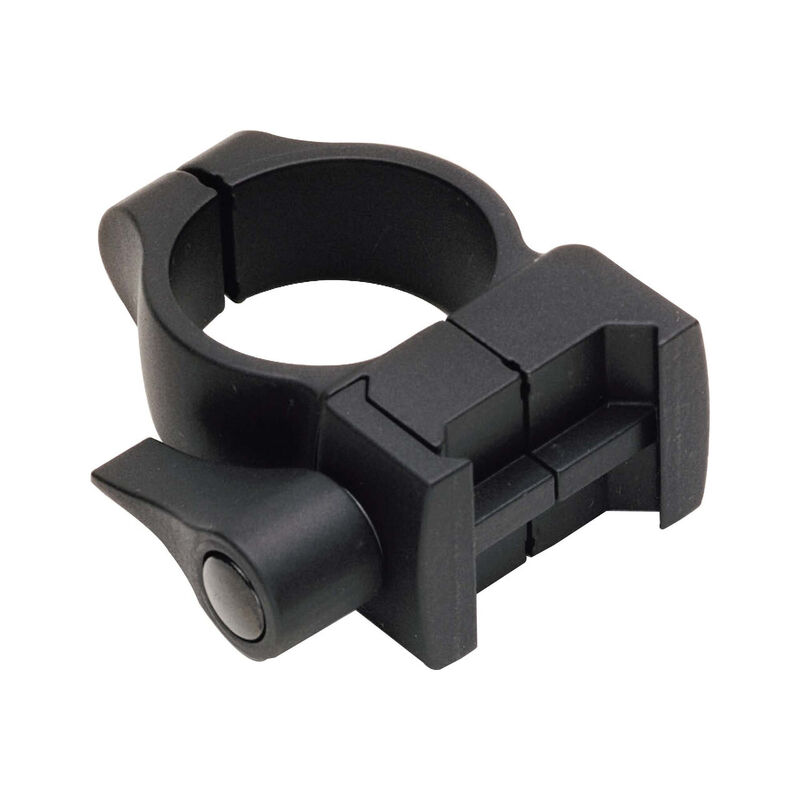

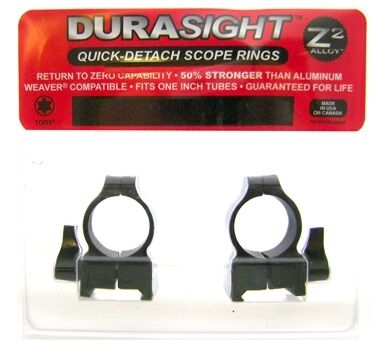

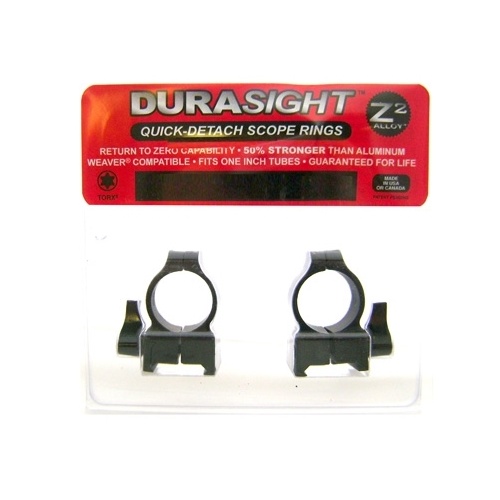

The Durasight Z-2 Alloy Weaver Vertical Split QD Scope Rings – High Black (Model DS403B) provide a secure, tool-free mounting platform for optics on Weaver-style rails. Engineered from proprietary Z-2 zinc-aluminum alloy, these rings are approximately 50% stronger than standard aluminum while remaining lighter than steel. The vertical-split ring design secures the optic with Grade 8 Torx hardware, providing uniform clamping pressure across the scope tube. Featuring integrated Quick-Detach (QD) levers, this mounting system allows shooters to detach and reattach their scope in the field without tools while maintaining consistent return-to-zero performance.

Key Features

Z-2 Alloy Construction: Provides approximately 50% higher tensile strength than conventional aluminum mounting rings to minimize flex under recoil.
Quick-Detach Levers: Enables rapid, tool-free removal and installation of optics on standard Weaver bases.
Vertical-Split Design: Clamps vertically around 1-inch (25.4 mm) scope tubes to ensure even pressure distribution and consistent alignment.
High-Profile Clearance: Positions the optic to clear large rifle scope objective bells measuring up to 50 mm in diameter.
Corrosion-Resistant Finish: Finished in non-reflective matte black for durability across field conditions.

Specifications

Model / SKU: DS403B
Main Tube Diameter: 1 inch (25.4 mm)
Height Profile: High (fits objective lenses up to 50 mm)
Mount Interface: Weaver-style bases and cross-slot rails
Attachment Mechanism: Quick-Detach (QD) levers with vertical-split ring clamp
Material: Proprietary Z-2 zinc-aluminum alloy
Hardware: Grade 8 Torx screws
Finish: Matte Black
Recommended Torque Limit: Maximum 18 in-lbs on ring cap screws

Who is the Durasight Z-2 Alloy Weaver Vertical Split QD Scope Rings - High Black for?

Hunters requiring rapid optic detachment for transport or maintenance — The tool-free Quick-Detach levers on these Durasight scope rings allow shooters to remove and reinstall a 1-inch (25.4 mm) main tube optic in the field without losing zero or carrying tools.
Shooters running large-objective optics alongside backup iron sights — The high-profile clearance accommodates scope objective lenses up to 50 mm in diameter over the rifle barrel while allowing the entire quick-detach scope ring assembly to dismount rapidly from Weaver rails to access open sights.

Less suitable for: Rifle scopes with 30 mm or 34 mm main tube diameters, or optics with objective lenses exceeding 50 mm, which require 30 mm/34 mm rings or extra-high mounting systems to prevent barrel contact. Do not torque ring cap screws past the 18 in-lbs threshold to avoid crushing scope tubes or stripping threads.

SKU	DUR40816LP
Model #	DS403B
Brand	Durasight
Shipping Weight	1.0000kg
