Are these Era-Tac 10mm ring mounts compatible with standard Australian hunting rifle rails?

Yes, these mounts are engineered to clamp securely onto standard MIL-STD-1913 Picatinny and NATO STANAG rails. The adjustable, self-locking safety levers allow for precise tolerance compensation, ensuring a snug fit even on rails that are machined slightly over or under specification.

Can I use the quick-detach levers to swap between a day scope and a thermal optic in the field without losing zero?

Yes, the Era-Tac quick-detach system is precision-machined in Germany for high repeatability, allowing you to remove and reattach your optic repeatedly while maintaining zero. This makes it ideal for hunters switching between traditional day optics and thermal or night vision setups during outback hunts.

Will the 10mm base height provide enough clearance for a large 56mm objective lens on a monolithic chassis?

A 10mm base height (BH) is designed to keep optics low to the bore, but for scopes with objective bells of 56mm or larger mounted on monolithic chassis or AR platforms, clearance may be insufficient. Shooters with large objective scopes on flat top rails typically require a higher base height, such as 13mm, 17mm, or 20mm.

Do these scope mounts require any special Australian electrical certifications or permits?

No electrical compliance or SAA/RCM certifications are required because this is a 100 percent mechanical, passive hardware set containing no electronics, batteries, or wiring. Furthermore, scope rings and mounts are not classified as controlled firearm components under Australian federal laws, so no special import permits are needed.

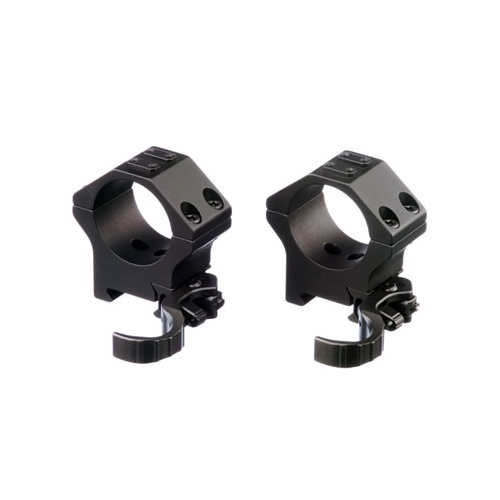

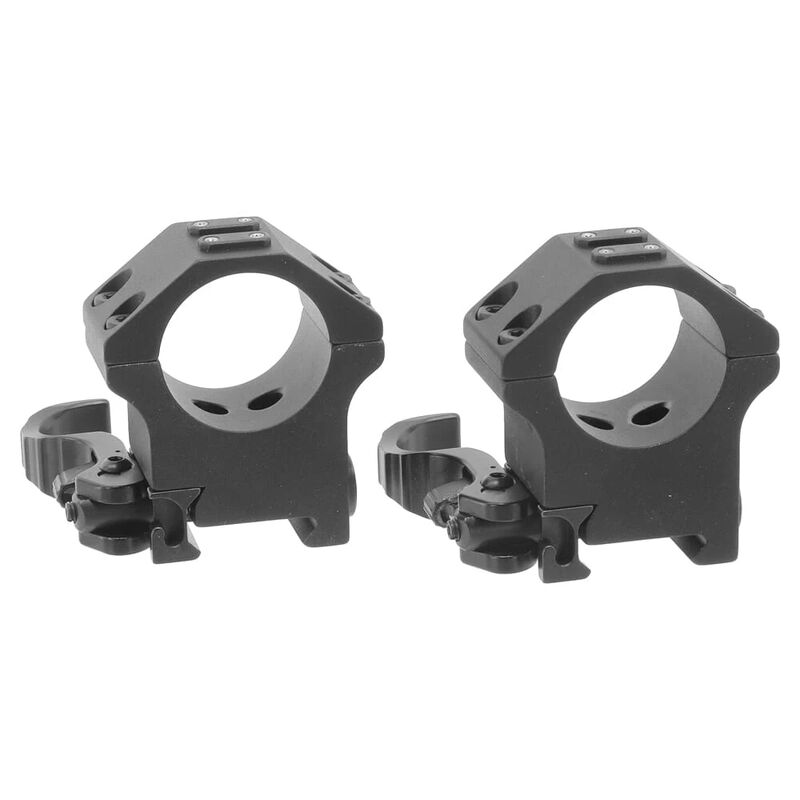

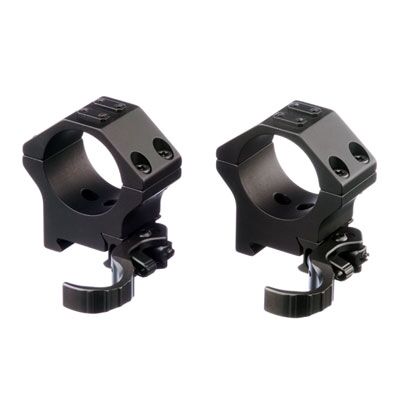

30mm QD Scope Mount - Era-Tac T1003-0010

The Era-Tac Two-Piece Ring Mounts 30mm With Lever Base Height 10mm (MPN: T1003-0010) is a German-engineered, heavy-duty mounting system manufactured by Recknagel under the ERA-TAC tactical line. Machined from 7075-T6 aircraft-grade aluminium and finished with Mil-Spec Type III hardcoat anodising, this two-piece system secures 30 mm main tube optics to MIL-STD-1913 Picatinny and NATO STANAG rails. Engineered to withstand heavy recoil platforms up to .50 BMG, it utilises tool-free, rust-proof hardened steel quick-detach levers that provide zero-repeatable optic removal and re-attachment. Each 25 mm wide ring cap features the integrated ERA-TAC UNIVERSAL-Interface, enabling the direct attachment of secondary tactical accessories such as red dot adapters and level indicators.

Key Features

Quick-Detach Steel Levers: Integrated tool-free clamping levers allow rapid optic detachment and re-attachment with return-to-zero capability across standard or out-of-spec Picatinny rails.
Modular Accessory Interface: Features 25 mm wide ring caps equipped with the ERA-TAC UNIVERSAL-Interface for mounting secondary sighting systems directly to the mount.
High-Recoil Rating: Precision CNC-machined from solid 7075-T6 aluminium to deliver structural stability under recoil forces up to .50 BMG.
Low-Profile Geometry: The 10 mm base height positions the riflescope close to the bore axis on standard flat-top receivers and bolt-action rifle systems.

Specifications

Ring Diameter: 30 mm (convertible to 1 inch / 26 mm with optional ERA-TAC inserts)
Base Height (BH): 10 mm (0.394 in)
Ring Width: 25 mm per ring
Total Set Weight: 241.0 g (8.50 oz)
Mounting Rail Interface: MIL-STD-1913 Picatinny / NATO STANAG
Material: 7075-T6 aluminium with hardened steel clamping hardware
Finish: Mil-Spec Type III hardcoat anodised matte black
Inclination: 0 MOA (flat mount)
Recoil Rating: Tested up to .50 BMG

Who is the Era-Tac Two-Piece Ring Mounts 30mm With Lever Base Height 10mm for?

Hunters swapping between day optics and thermal or night vision — relies on the tool-free quick-detach steel levers to alternate 30 mm optics while maintaining reliable zero retention, adding 241.0 g of total hardware weight to the rifle.
Precision long-range rifle shooters — uses a low 10 mm base height to mount 30 mm main tube optics tightly over traditional bolt-action receivers, maintaining proper cheek weld without needing tall stock adjustments.
Tactical and law enforcement rifle operators — requires a flat 0 MOA mounting platform tested to withstand recoil forces up to .50 BMG, featuring integrated 25 mm wide interface caps for secondary optics.

Less suitable for: Shooters using scopes with objective bells above 56 mm on monolithic chassis or AR platforms requiring higher 13 mm to 20 mm base heights or cantilever mounts; extreme long-range shooters requiring built-in elevation compensation who need 20 MOA or adjustable-inclination mounts; and rifles equipped with Weaver-only slots or dovetails lacking a Picatinny adapter.

SKU	ERA42404LP
Model #	T1003-0010
Brand	Era-Tac
Shipping Weight	1.0000kg
