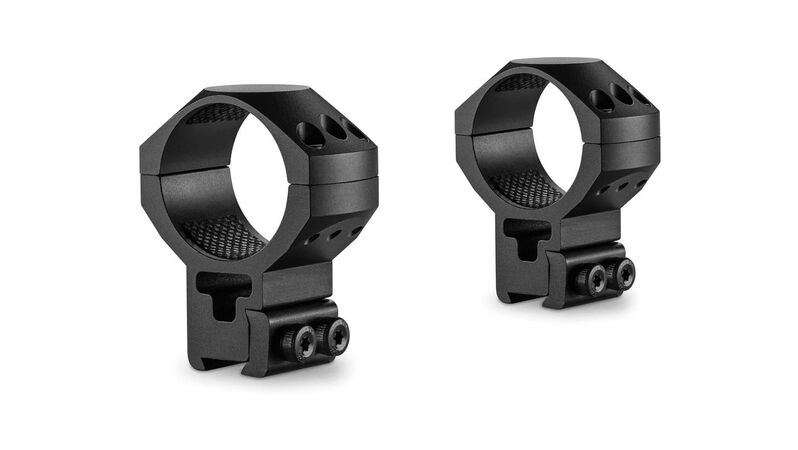

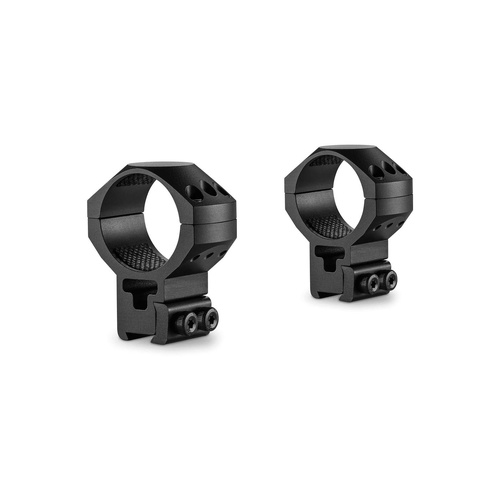

The Hawke Tactical Ring Mount 9-11mm, 34mm Diameter, High (Model: 24110) is a two-piece mechanical mounting system designed to secure 34 mm main tube riflescopes to standard 9–11 mm and 3/8″ dovetail rails. Constructed from high-grade anodised aluminum in matte black with rounded edges, it features a 1.5 in (38 mm) centerline height (2.4 in / 60 mm overall height) with a 0 MOA cant. Weighing 5.4 oz (152 g), this mount is engineered to provide clearance for large objective lenses up to 56 mm on precision rimfire rifles and airguns.

Key Features

• Triple Torx Top Caps: Uses three Torx T15 screws on each side of the cap (six per ring) with a 6-32 thread, alongside dual Torx T15 base clamp screws (M5x0.8 thread) for secure zero retention.
• Internal Cushion Tape: Synthetic internal lining prevents scratching, marking, or tube crushing while increasing friction against the scope body.
• Reversible Side Plate: Flappable clamp plate accommodates both metric 9–11 mm and imperial 3/8″ dovetail rails.
• Recoil Stop Pin: Built-in retractable pin interfaces with receiver recoil holes to eliminate mount slippage on high-recoil platforms.

Specifications

• Ring Diameter: 34 mm
• Mounting Interface: 9–11 mm Dovetail / 3/8″ rails

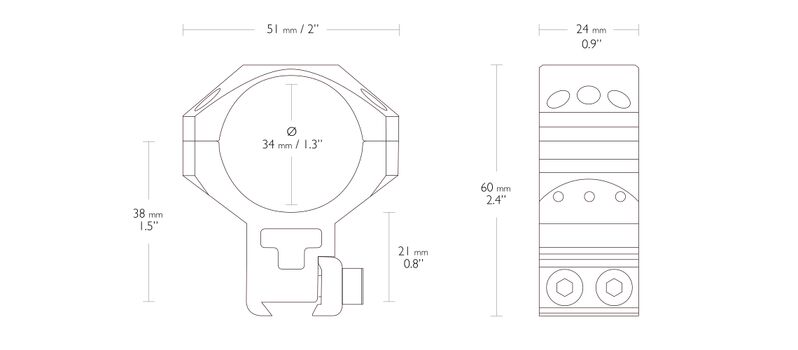

• Profile Height: High profile (1.5 in / 38 mm centerline height; 2.4 in / 60 mm overall height)
• Cant: 0 MOA
• Weight: 5.4 oz (152 g)
• Material: High-grade anodised aluminum
• Hardware: Triple Torx T15 top cap screws (6-32 thread); double Torx T15 base clamp screws (M5x0.8 thread)

Who is the Hawke Tactical Ring Mount 9-11mm, 34mm Diameter, High for?

• Precision rimfire target shooters and pest controllers — Mounting 34 mm main tube optics with large 50–56 mm objective bells onto CZ, Tikka, Lithgow, or Stirling rifles requires the 1.5 in (38 mm) centerline height provided by this 34mm dovetail scope ring to clear the barrel while clamping onto standard 9–11 mm Dovetail / 3/8″ rails.
• Airgun hunters and target shooters — Securing heavy optics against the bi-directional recoil of spring-piston or PCP air rifles relies on this 5.4 oz (152 g) 34mm dovetail scope ring, which utilises a retractable recoil stop pin, internal cushion tape, and triple Torx top cap screws to prevent scope slip on 9–11 mm Dovetail / 3/8″ rails.

Less suitable for: Firearms equipped with Mil-Std-1913 Picatinny or Weaver rails, which require a dedicated Weaver/Picatinny cross-slot mount, or setups using smaller 40–44 mm objective lenses where a lower 1.3 in centerline height is required for proper cheek weld.
